• SKU 0P62852 White Kynar transom door frame for hurricane impact geared-hinged CVR panic doors, surface closer prep
1 1

CRL

CRL-U.S. IG500 White Kynar Transom Frame - Geared Hinge & CVR Strike

CRL-U.S. IG500 White Kynar Transom Frame - Geared Hinge & CVR Strike

$3,566.02 CAD
$3,566.02 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P62852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Prepped for standard CVR strike
  • Includes air resistant threshold; optional air/water resistant threshold available

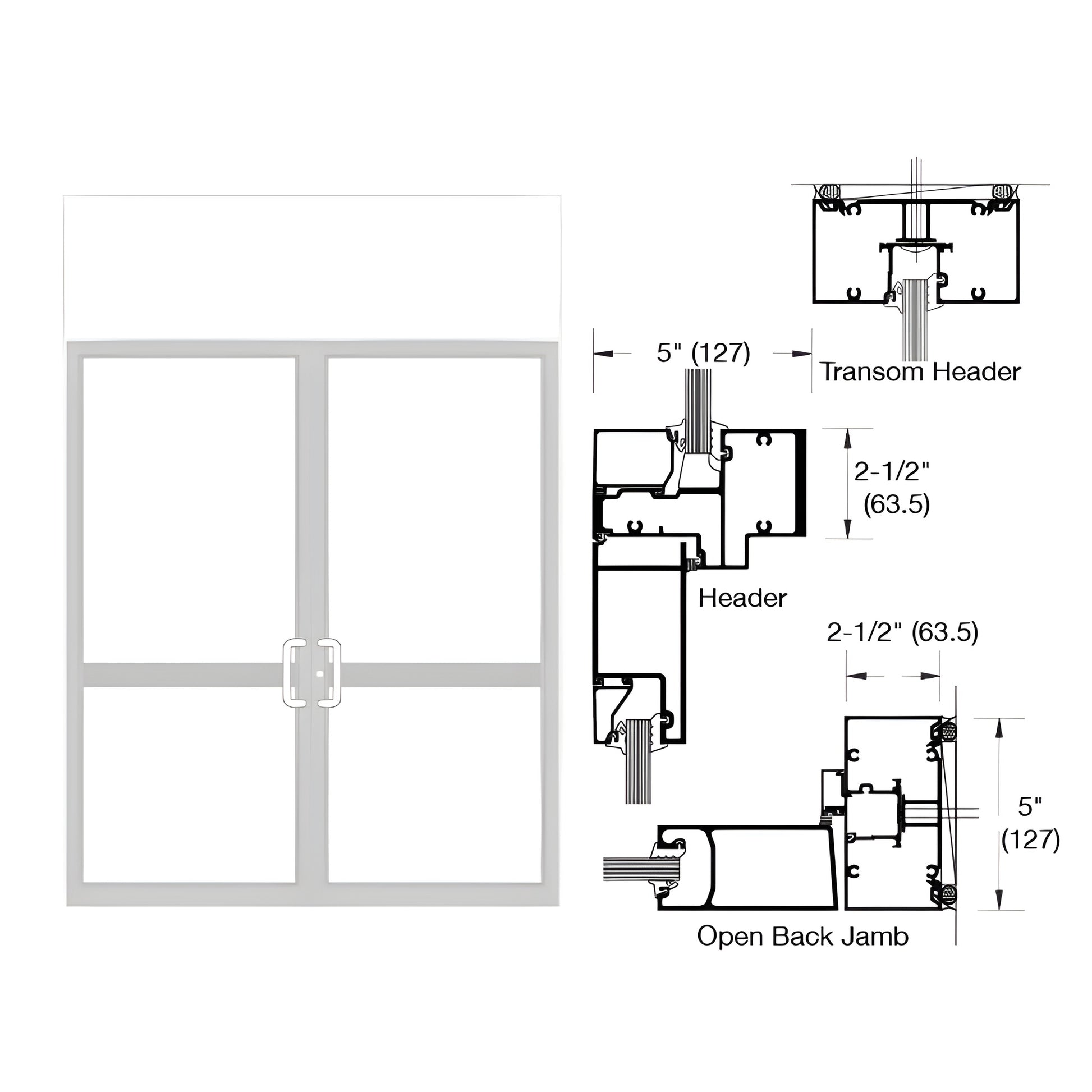

  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame for surface closer (geared hinge not included)

This Custom Transom Door Frame (SKU: 0P62852) is engineered for hurricane impact door installations and built to accommodate a pair of geared-hinged CVR panic hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Designed for surface-mount closers, the frame is constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, IG567/IG563 header, IG2526 transom header, and TH811 air threshold. Hardware preparations include geared hinges and standard CVR strike. Ideal for coastal and high-wind applications where hurricane-rated, geared-hinged transom frames and laminated impact glazing are required.

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Contact CRL Customer Service to request specifications, shipping weight, or a quote for SKU 0P62852.
