CRL
CRL-U.S. Aluminum IG500 White KYNAR Custom Up/Over Frame Butt Hinge
CRL-U.S. Aluminum IG500 White KYNAR Custom Up/Over Frame Butt Hinge
Regular price
$2,090.91 CAD
Regular price
Sale price
$2,090.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P41452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

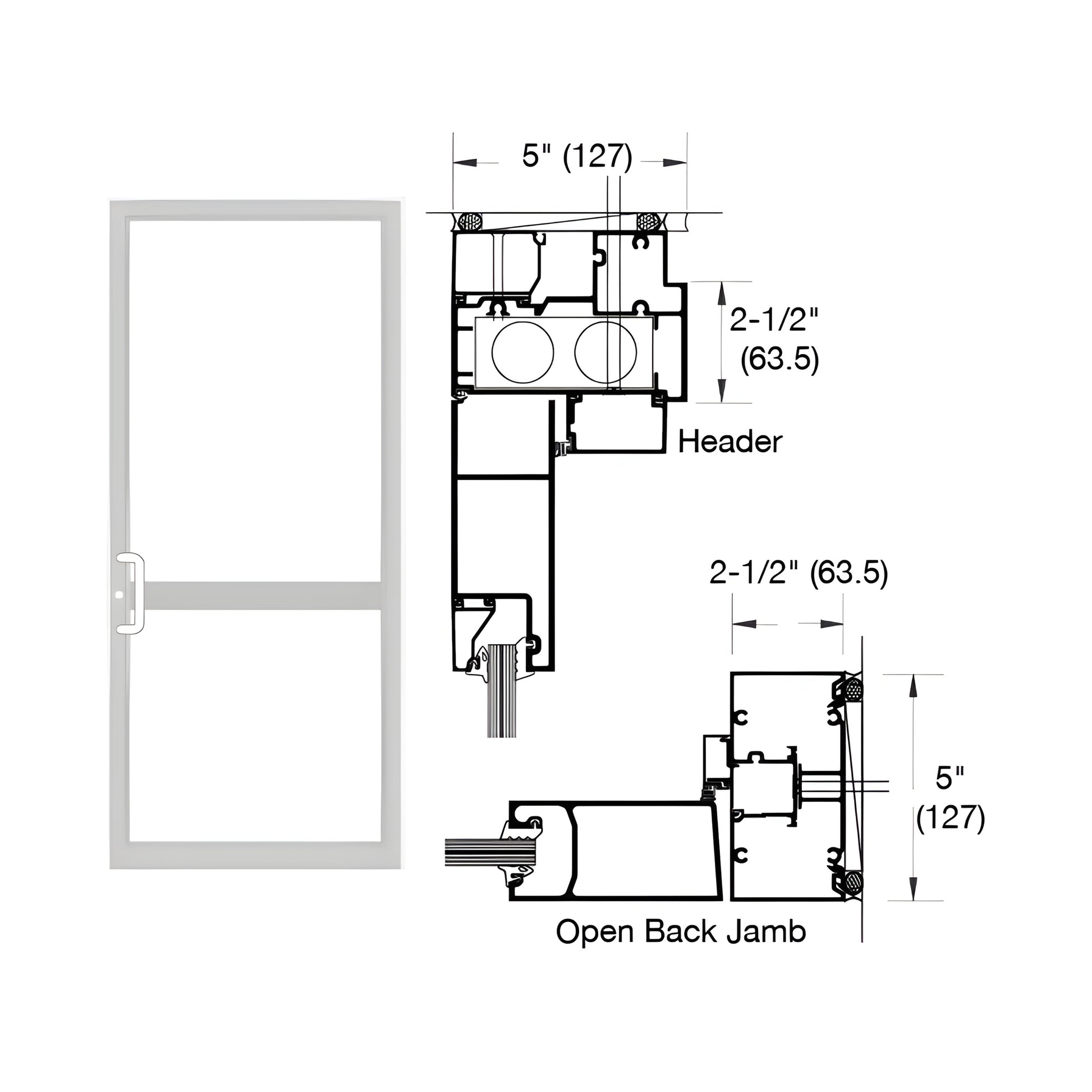

- 2-1/2" x 5" (63.5 x 127 mm) up/over door frame for single doors
- Prepped for 1-1/2" pair butt hinges (hinges not included)
- Prepped for overhead concealed closer and CVR panic strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
Custom Single Up/Over Door Frame designed for hurricane impact door applications using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header. Hardware preparations include pair butt hinges, overhead concealed closer, and standard CVR panic strike — ideal for projects requiring an impact-rated, air-resistant threshold and concealed closer prep. SKU: 0P41452
Always follow FPA guidelines when installing hurricane impact products.
Need exact weight or lead time? Contact CRL Customer Service to request details or place an order.
Specifications
