CRL-U.S. Aluminum IG500 Kynar Up/Over Frame - Geared Hinge & Closer

CRL-U.S. Aluminum IG500 Kynar Up/Over Frame - Geared Hinge & Closer

$2,538.56 CAD
$2,538.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F42852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Prepped for standard flushbolt strike
  • Includes air-resistant threshold
  • Optional air/water-resistant threshold

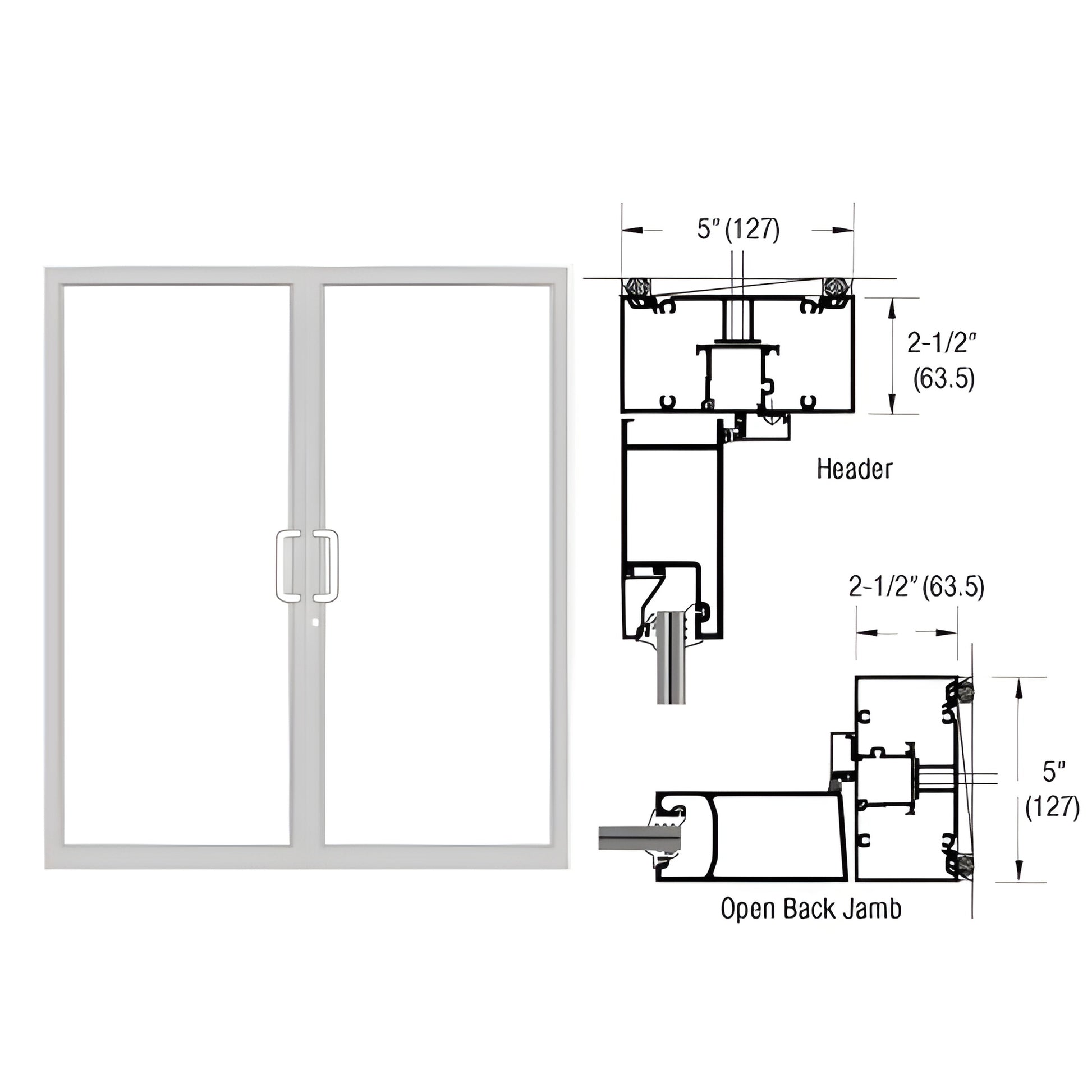

  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged up-and-over impact door frame (geared hinge not included)

Custom Double Up/Over Door Frame — SKU: 0F42852. Built to accommodate a pair of geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG147/IG146 door jambs, IG552/IG046/IG047 header, and TH811 air threshold. Hardware preparations include geared hinge locations and standard flushbolt strike. Ideal for coastal and high-wind installations requiring a hurricane impact door frame with air-resistant threshold options.

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Differentiators: Engineered for hurricane impact performance, configurable air/water-resistant threshold options, and built for geared-hinge installations.
