CRL-U.S. Aluminum IG500 StormFront Gear Hinge Pair for Panic Doors

CRL-U.S. Aluminum IG500 StormFront Gear Hinge Pair for Panic Doors

$3,401.35 CAD
$3,401.35 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SZ41822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • Includes standard push/pull hardware and hanging hardware
  • Panic hardware and one cylinder ordered and added separately
  • Accommodates 9/16" (14 mm) heat-strengthened glass with SentryGlas® Plus interlayer (glass not included)
  • Optional 10" (254 mm) bottom rail available
  • FPA approved for hurricane impact applications

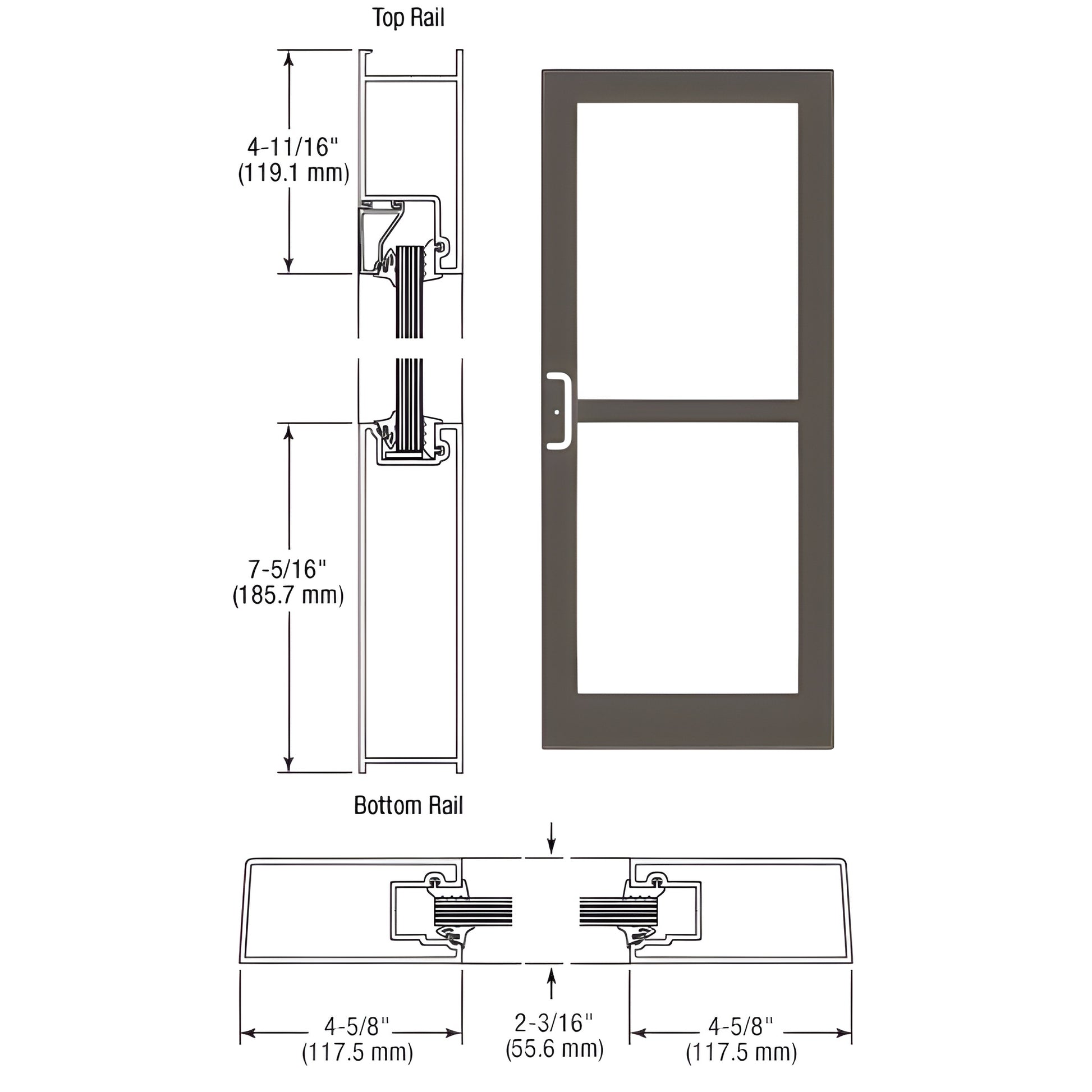

This CRL Custom Medium Stile Entrance Door (SKU: SZ41822) features 4-5/8" (117 mm) stiles, a 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. Designed for commercial and hurricane-impact entry openings, it ships with stiles prepped for gear hinge hardware, glass stops for 9/16" (14.2 mm) impact glazing (by others), preparation for a selected panic device, and preps for a surface closer.

Always follow Florida Product Approval (FPA) guidelines when installing hurricane-impact products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.


Key differentiators: FPA-approved hurricane impact capability, compatible with SentryGlas® Plus interlayer, optional 10" bottom rail, and commercial panic-ready prep. Order SKU SZ41822 or contact CRL for custom options and pricing.
