CRL-U.S. Aluminum IG500 StormFront Gear Hinges - Panic/Surface Closer

CRL-U.S. Aluminum IG500 StormFront Gear Hinges - Panic/Surface Closer

$3,067.37 CAD
$3,067.37 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SZ41811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Includes standard push/pull and hanging hardware
  • Panic hardware and one cylinder must be ordered and added separately
  • Accommodates 9/16" (14 mm) heat-strengthened glass with SentryGlas® Plus interlayer (glass not included)
  • Optional 10" (254 mm) bottom rail available
  • FPA approved for hurricane impact installations

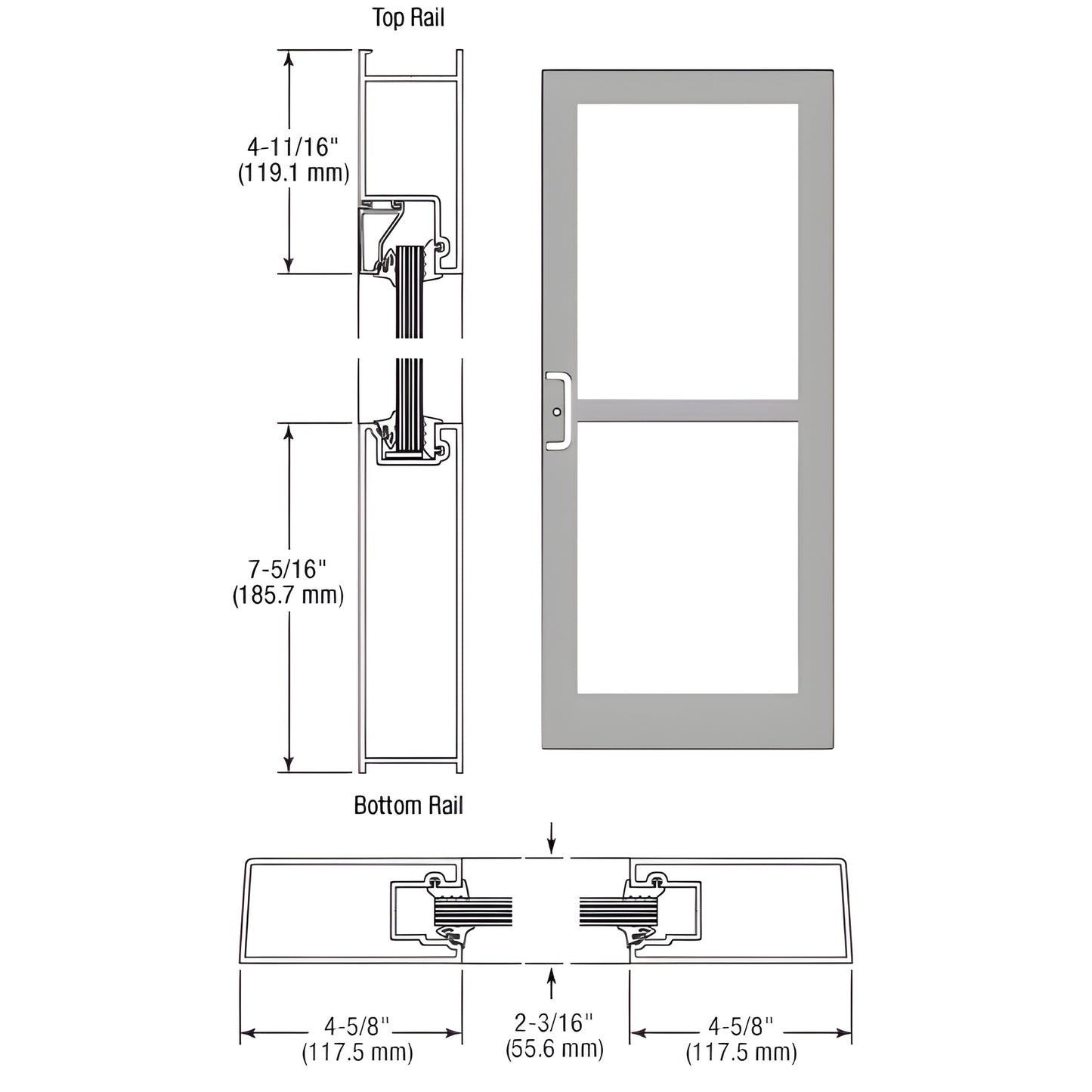

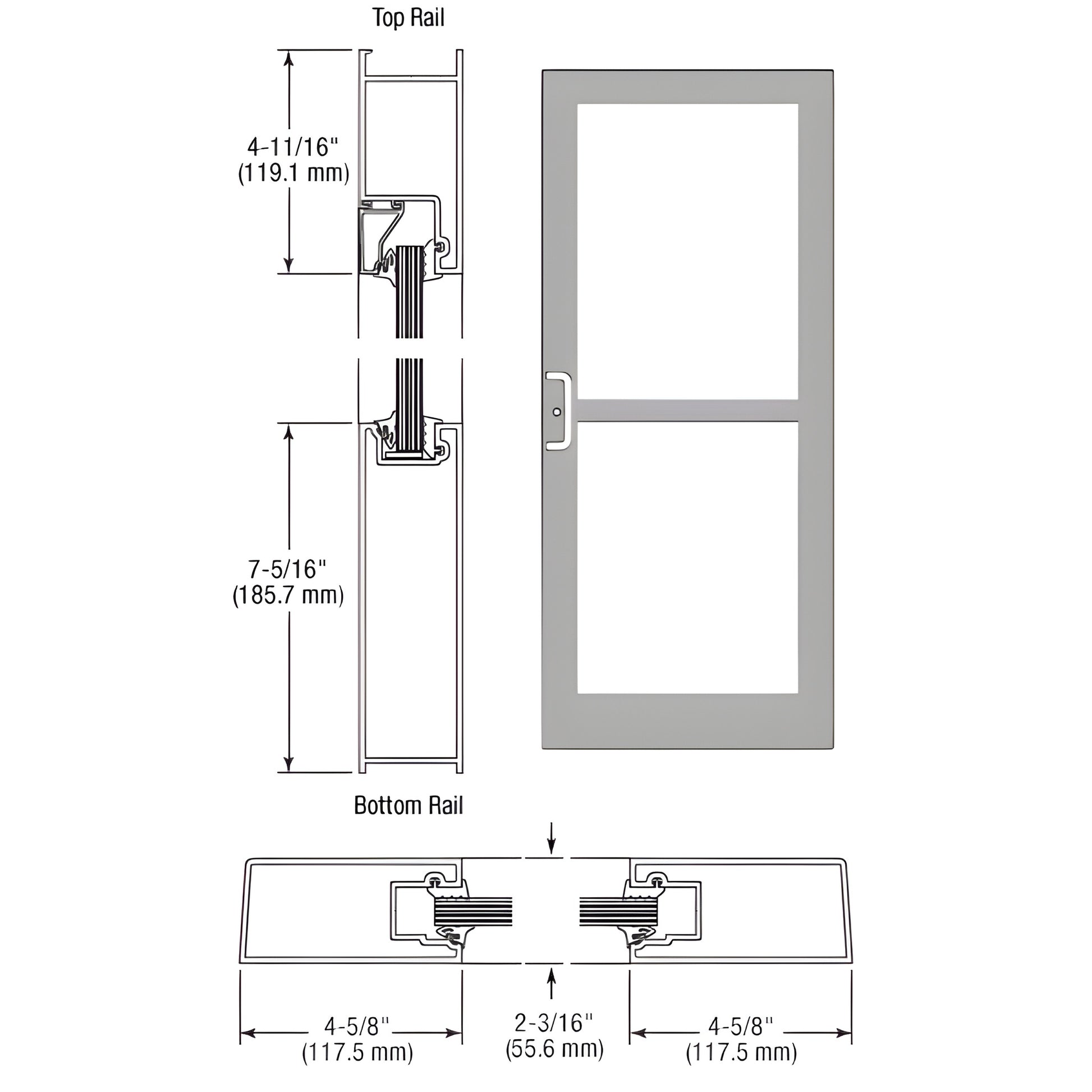

CRL Custom Medium Stile Entrance Door (SKU: SZ41811) — built with 4-5/8" (117 mm) stiles, a 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. Standard preparations include stiles for gear hinge hardware, glass stops sized for 9/16" (14.2 mm) impact glazing (by others), prep for a selected panic device, and preps for a surface closer. Ideal for hurricane impact entrance door applications and custom storefront projects where SentryGlas® Plus interlayer compatibility is required. Glass not included.


When installing hurricane impact products, always refer to FPA guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on monitor settings.

Order SKU SZ41811 or contact CRL for pricing and lead times.
