CRL-U.S. Aluminum IG600 Clear Anodized Transom Butt Hinge Door Frame
CRL-U.S. Aluminum IG600 Clear Anodized Transom Butt Hinge Door Frame
Regular price
$2,050.32 CAD
Regular price
Sale price
$2,050.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F91511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

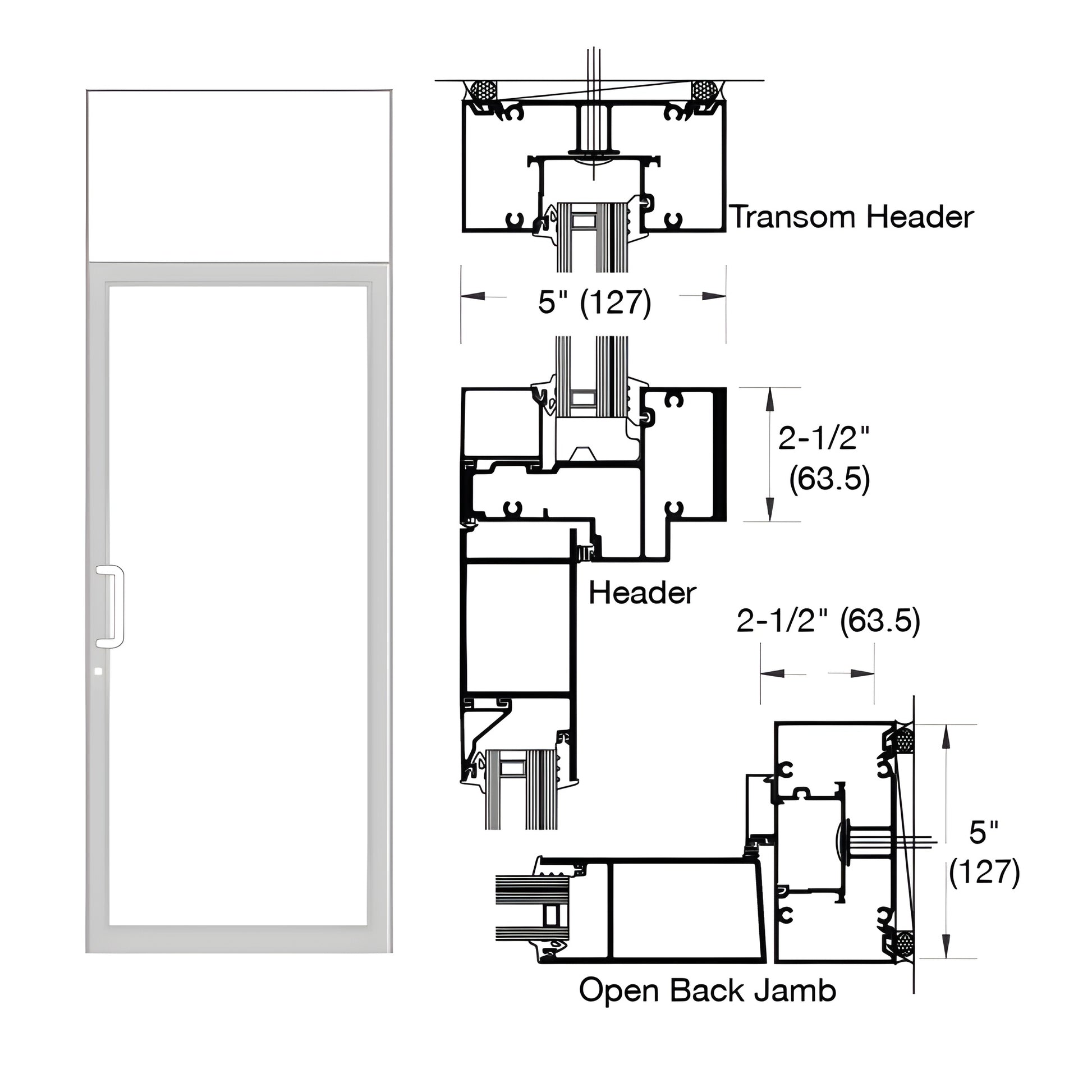

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for standard flush-bolt/deadbolt strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
Custom Single Transom Door Frame — engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header and TH811 air threshold. Hardware prep includes hinge and strike cutouts for straightforward installation. Ideal for coastal or high-wind applications requiring a durable hurricane impact transom door frame (SKU: 0F91511).
When installing hurricane impact products, always refer to FPA Guidelines.
Need this frame for a specific project? Contact CRL Customer Service to confirm options and get a quote.
Specifications
Quote Request Forms
