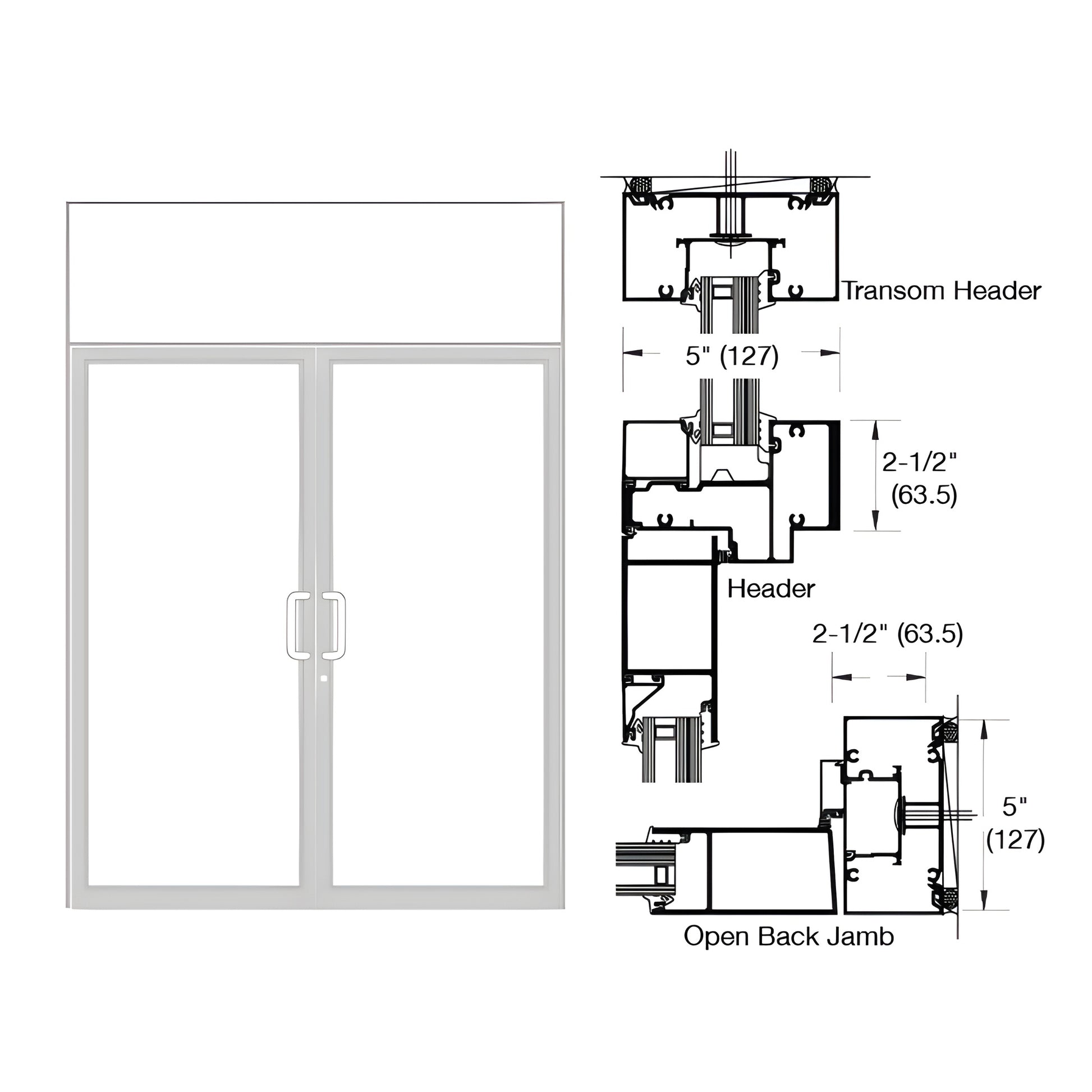

• Double transom impact door frame (clear anodized) with pair of doors and technical cross-section drawings - SKU 0F92511
1 1

CRL

CRL-U.S. Aluminum IG600 Clear Anodized Transom Butt Hinge for 2 Doors

CRL-U.S. Aluminum IG600 Clear Anodized Transom Butt Hinge for 2 Doors

$2,757.72 CAD
$2,757.72 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F92511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard flush-bolt strike
  • Includes air-resistant threshold (TH811)
  • Optional air/water-resistant threshold available

Custom Double Transom Door Frame — Built for a pair of butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold. Hardware preparations include 1-1/2" pair of butt hinges and a standard flush-bolt strike. This custom double transom hurricane impact door frame is designed for high-performance wind and impact resistance and easy on-site hardware installation.

SKU: 0F92511

When installing hurricane impact products, always refer to FPA Guidelines.


Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Need a custom quote or lead time for SKU 0F92511? Contact CRL Customer Service to get started.
