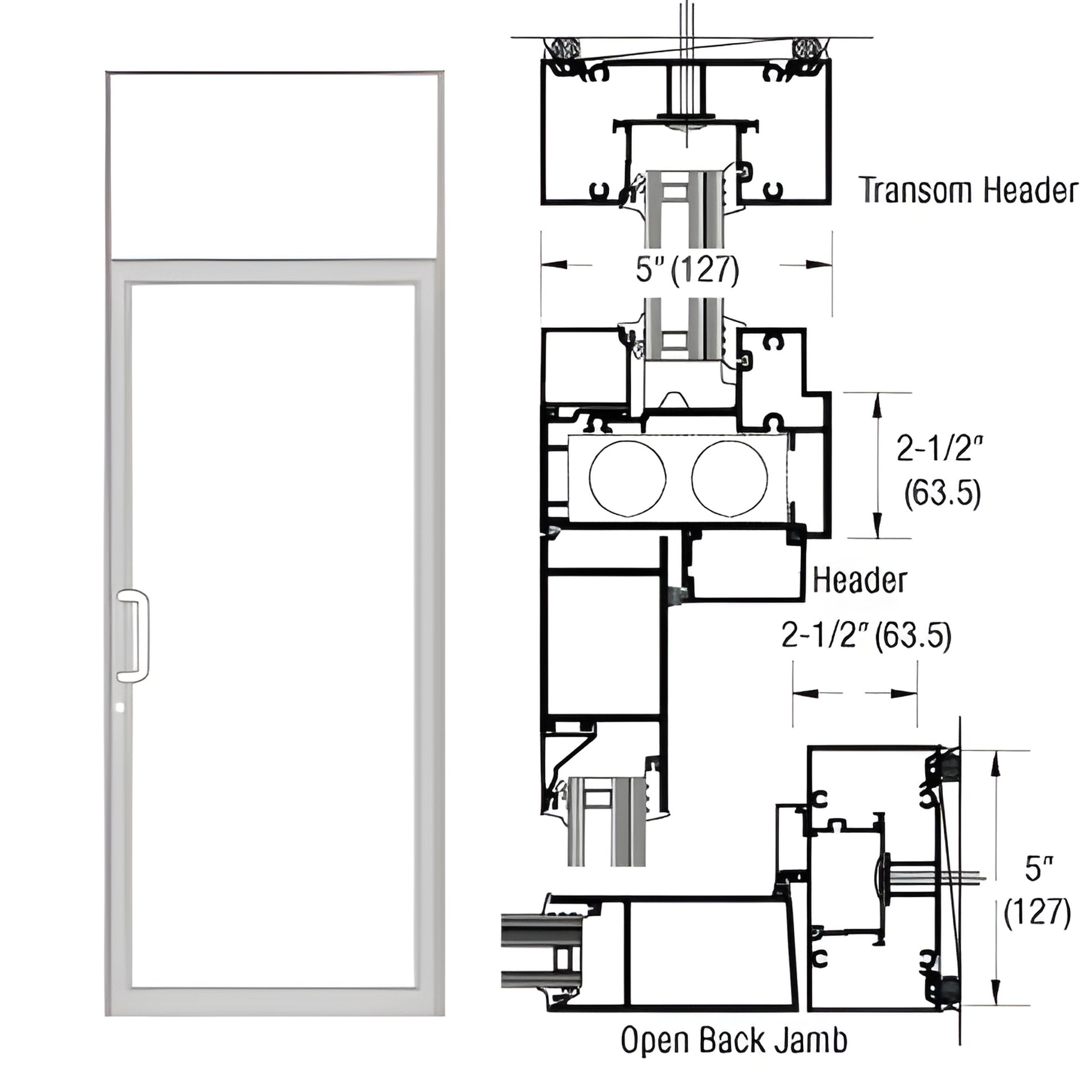

• Clear anodized single transom door frame, 21 2" x 5" profile with transom top and TH811 air threshold - SKU 0F91411
1 1

CRL

CRL-U.S. Aluminum IG600 Clear Anodized Transom Frame for Butt Hinge

CRL-U.S. Aluminum IG600 Clear Anodized Transom Frame for Butt Hinge

$2,485.20 CAD
$2,485.20 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F91411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) transom door frame
  • Prep for 1-1/2" pair butt hinges (hinges not included)
  • Prep for overhead concealed closer and standard deadbolt strike
  • Includes TH811 air resistant threshold; optional air/water resistant threshold available

This Custom Single Transom Door Frame (SKU 0F91411) is designed for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, and IG626/IG147/IG146 transom header with a TH811 air threshold, it offers hardware preparations for butt hinges, overhead concealed closer, and standard deadbolt strike. Ideal for hurricane-impact transom installations where air resistance and hardware prep are priorities.

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order or request a quote for SKU 0F91411 to confirm availability and threshold options.
