CRL-U.S. Aluminum IG600 Transom Frame for Overhead Concealed Closer
CRL-U.S. Aluminum IG600 Transom Frame for Overhead Concealed Closer
Regular price
$2,920.08 CAD
Regular price
Sale price
$2,920.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F91911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Air Resistant Threshold
- Optional Air/Water Resistant Threshold

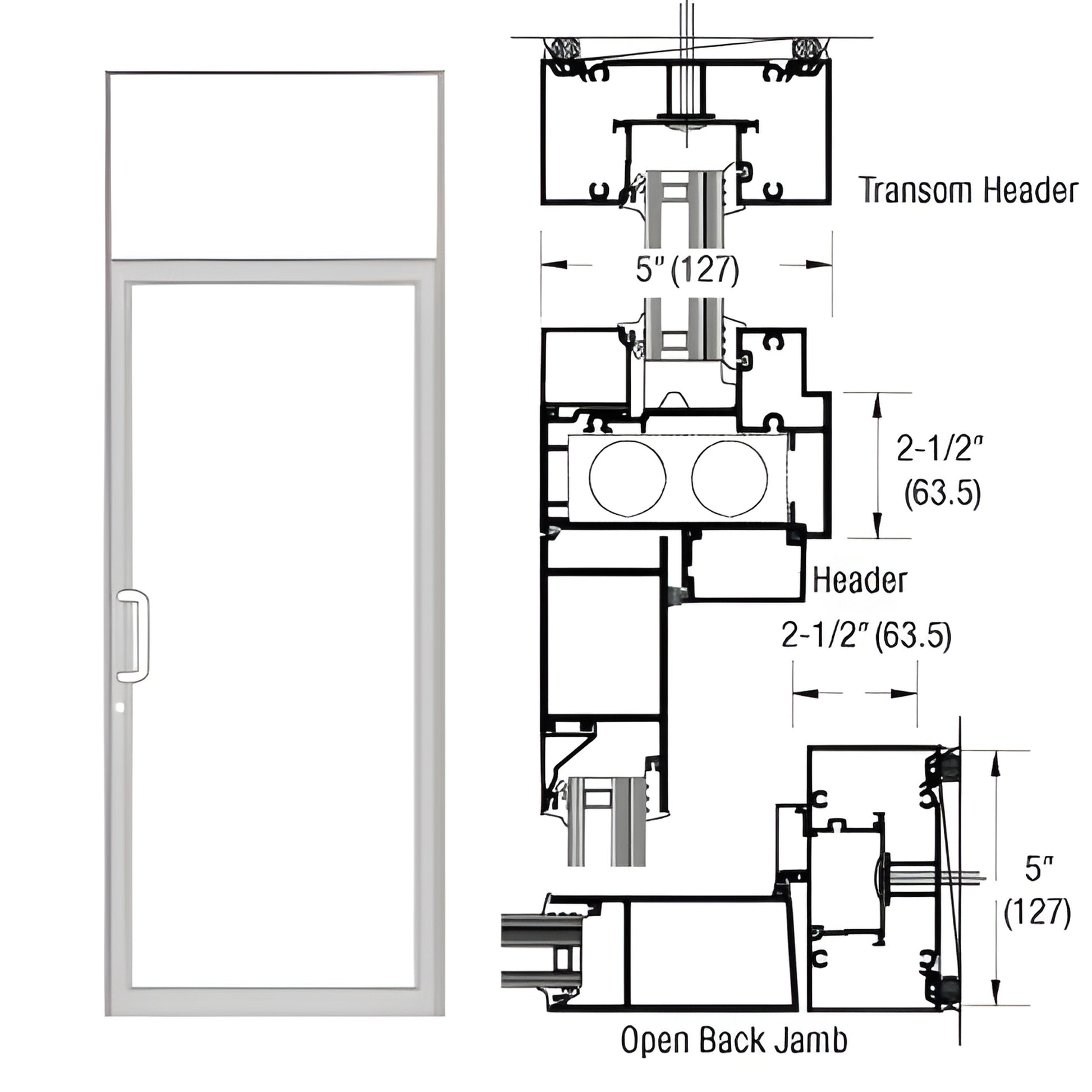

- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Includes prep for overhead concealed closer and deadbolt strike
This Custom Transom Door Frame (SKU: 0F91911) is designed for single geared hinged hurricane impact doors and compatible with 1-5/16" (33 mm) laminated impact glazing. Constructed using IG626/IG147/IG146 door jambs, IG667/IG200/IG663 header with NP803 and NP801 gaskets for the overhead concealed closer, IG626 transom header, and TH811 air threshold. Hardware preparations include overhead concealed closer and a standard deadbolt strike—ideal for hurricane impact door installations requiring reinforced transom frames and certified glazing compatibility.
When installing hurricane impact products, always refer to FPA Guidelines.
Order this custom hurricane impact transom door frame (SKU: 0F91911) or contact CRL for details and shipping quotes.
