CRL-U.S. Aluminum IG600 Transom Frame - Clear Anodized, Geared Hinge
CRL-U.S. Aluminum IG600 Transom Frame - Clear Anodized, Geared Hinge
Regular price
$2,899.21 CAD
Regular price
Sale price
$2,899.21 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P91911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

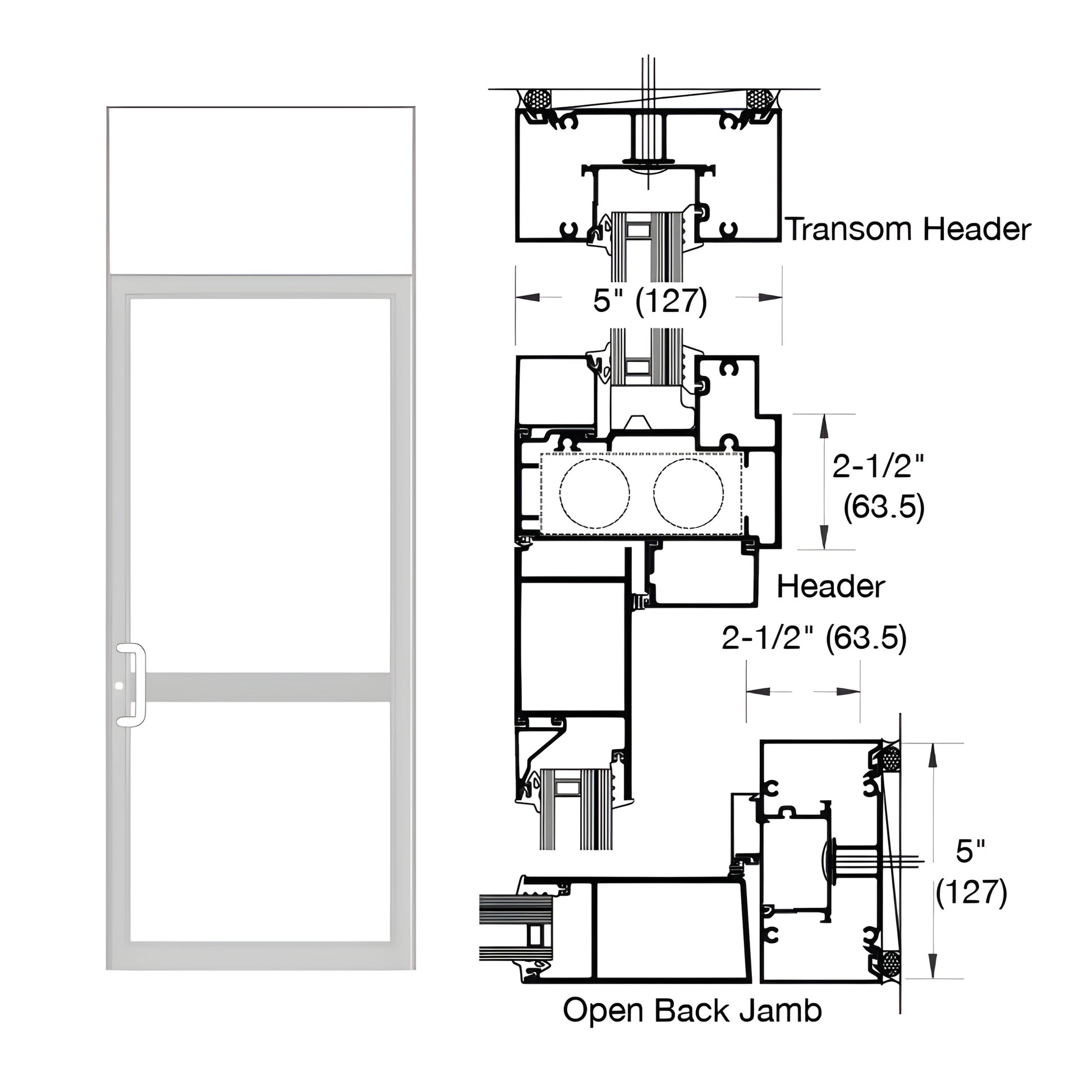

- 2-1/2" x 5" (63.5 x 127 mm) transom door frame
- Prep for overhead concealed closer and CVR panic strike
- Includes TH811 air resistant threshold (optional air/water resistant threshold available)
Custom Transom Door Frame engineered for single geared hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG147/IG146 door jambs, IG667/IG200/IG663 header with NP803 and NP801 gaskets, IG626 transom header, and TH811 air threshold. Hardware preparations include overhead concealed closer and standard CVR panic strike.
Key differentiators: purpose-built for hurricane impact door systems, prepped for concealed closers, and includes an air resistant threshold for improved performance—ideal for contractors and architects specifying custom transom frames for coastal or high-wind installations.
SKU: 0P91911
When installing hurricane impact products, always refer to FPA Guidelines.
Contact CRL Customer Service to confirm specifications or request a quote.
