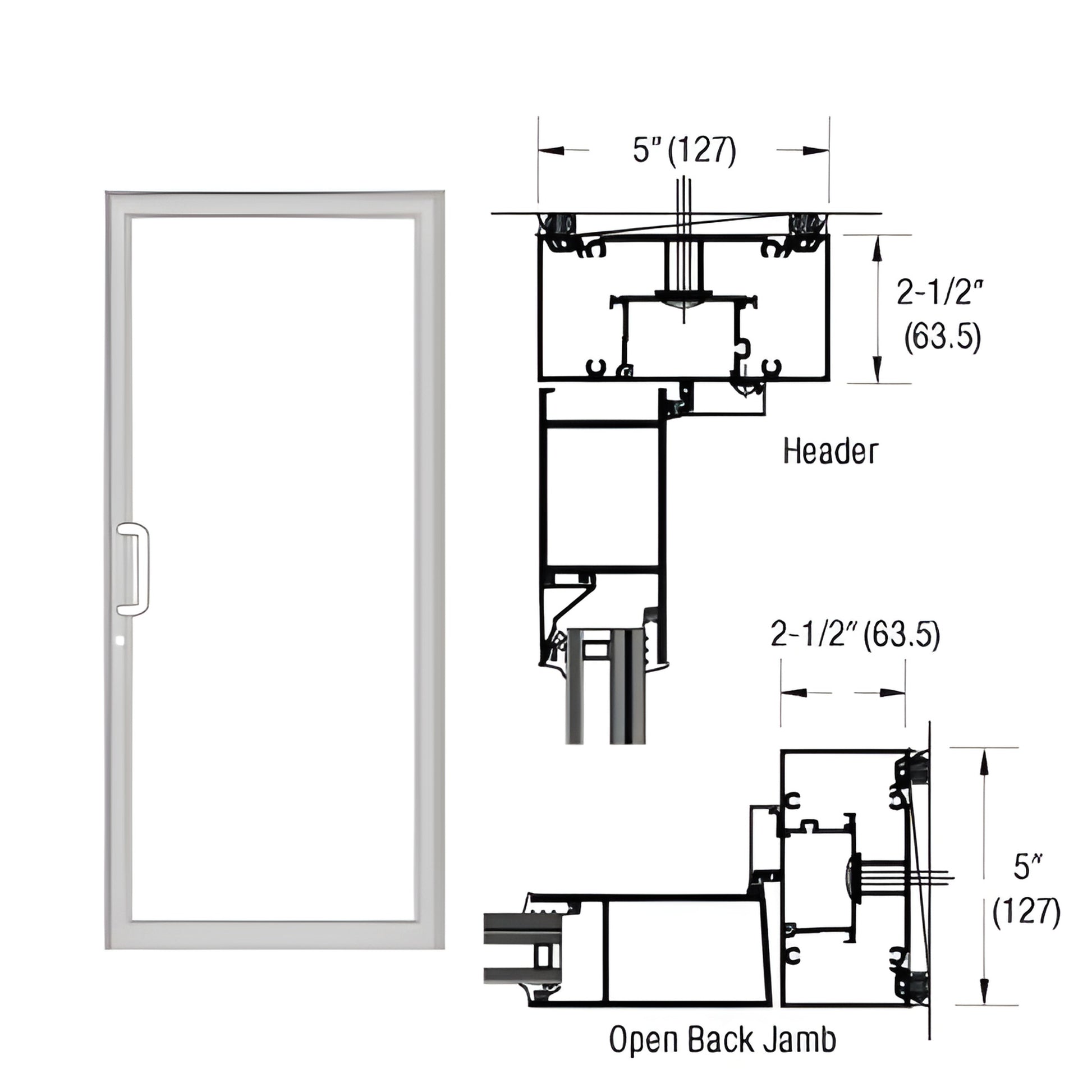

• Clear anodized single up/over hurricane impact door frame with open back jamb and header diagram - SKU 0F71511
1 1

CRL

CRL-U.S. Aluminum IG600 Clear Anodized Custom Butt-Hinge Door Frame

CRL-U.S. Aluminum IG600 Clear Anodized Custom Butt-Hinge Door Frame

$1,482.08 CAD
$1,482.08 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F71511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Prepped for standard deadbolt strike
  • Includes air resistant threshold (TH811)
  • Optional air/water resistant threshold available
  • 2-1/2" x 5" (63.5 x 127 mm) butt hinged impact door frame
  • Prepped for 1-1/2 pair of butt hinges (not included)

This Custom Single Up/Over Door Frame is engineered for a single butt-hinged hurricane impact door and compatible with 1-5/16" (33 mm) laminated impact glazing. Constructed using IG626/IG146/IG147 door jambs and IG668 header with IG146/IG147 seal, the assembly includes TH811 air threshold and hardware preparations for standard deadbolt strike and butt hinges. Ideal for coastal and high-wind applications seeking a durable hurricane impact door frame (SKU: 0F71511).

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Need help specifying or ordering this hurricane impact door frame? Contact CRL Customer Service to get exact weights, lead times, and installation support.
