CRL
CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Butt Hinge 2-Door
CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Butt Hinge 2-Door
Regular price
$1,883.32 CAD
Regular price
Sale price
$1,883.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F72511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Prepped for Standard Flush-bolt Strike
- Includes Air Resistant Threshold
- Optional Air/Water Resistant Threshold

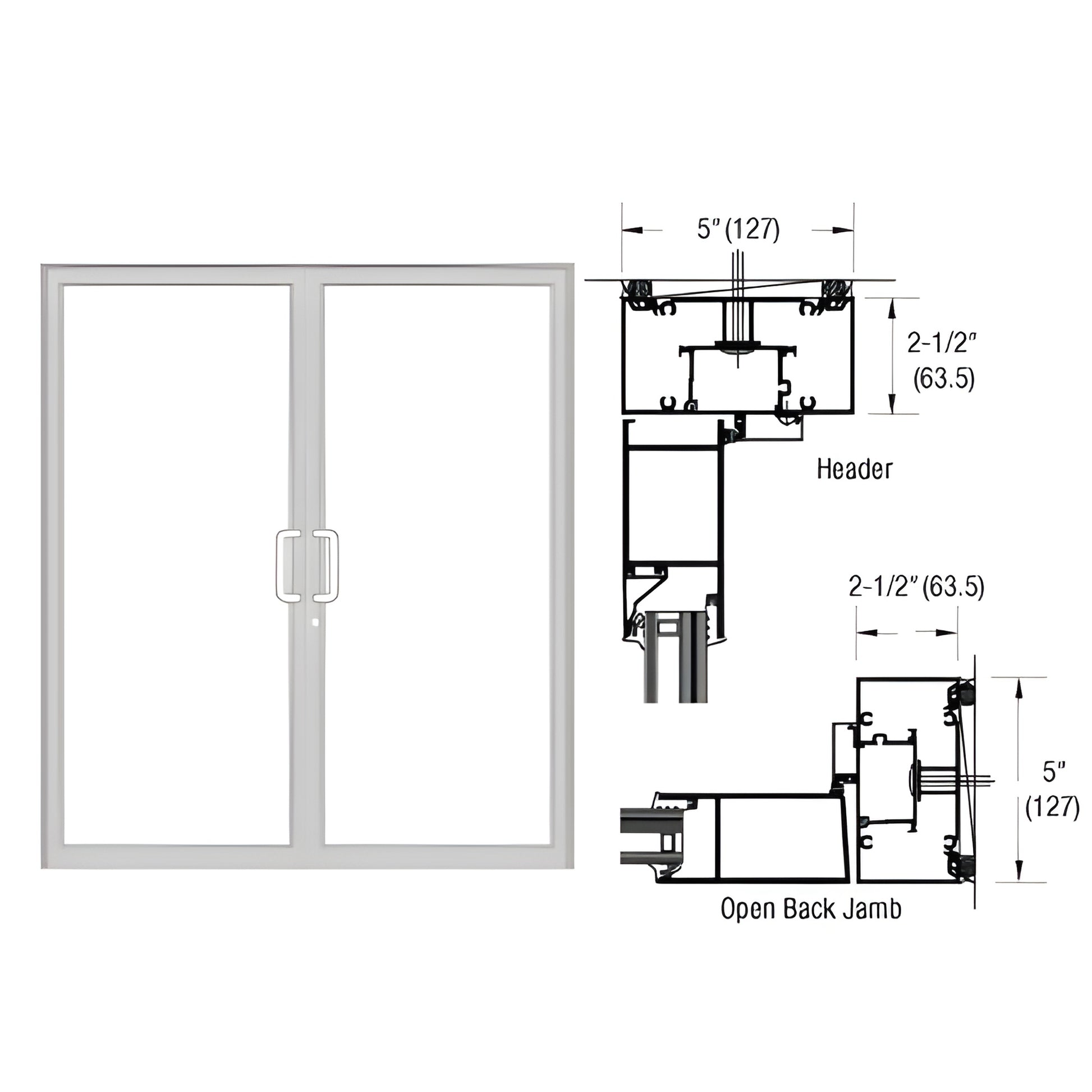

- 2-1/2" x 5" (63.5 x 127 mm) Butt Hinged Impact Door Frame
- Prepped for 1-1/2 Pair of Butt Hinges (Not Included)
This Custom Double Up/Over Door Frame (SKU: 0F72511) is engineered for a pair of butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs and an IG668 header with weal IG146/IG147, it accepts surface-mounted closers and includes hardware preparations for butt hinges and a standard flushbolt strike. The frame ships with an air resistant TH811 threshold; an optional air/water resistant threshold is also available for enhanced weather protection.
Key differentiators: purpose-built for hurricane impact doors, integrated air resistant threshold, and prepped for common hardware to speed installation—ideal for coastal and high-wind applications requiring code-compliant impact-rated framing.
When installing hurricane impact products, always refer to FPA Guidelines.
Contact CRL Customer Service to confirm options or request a weight for shipping.
Specifications
Quote Request Forms
