CRL-U.S. Aluminum IG600 Series Clear Anodized Custom Up/Over Door Frame for Butt Hinge, CVR Panic, and Overhead Concealed Closer

Product Details

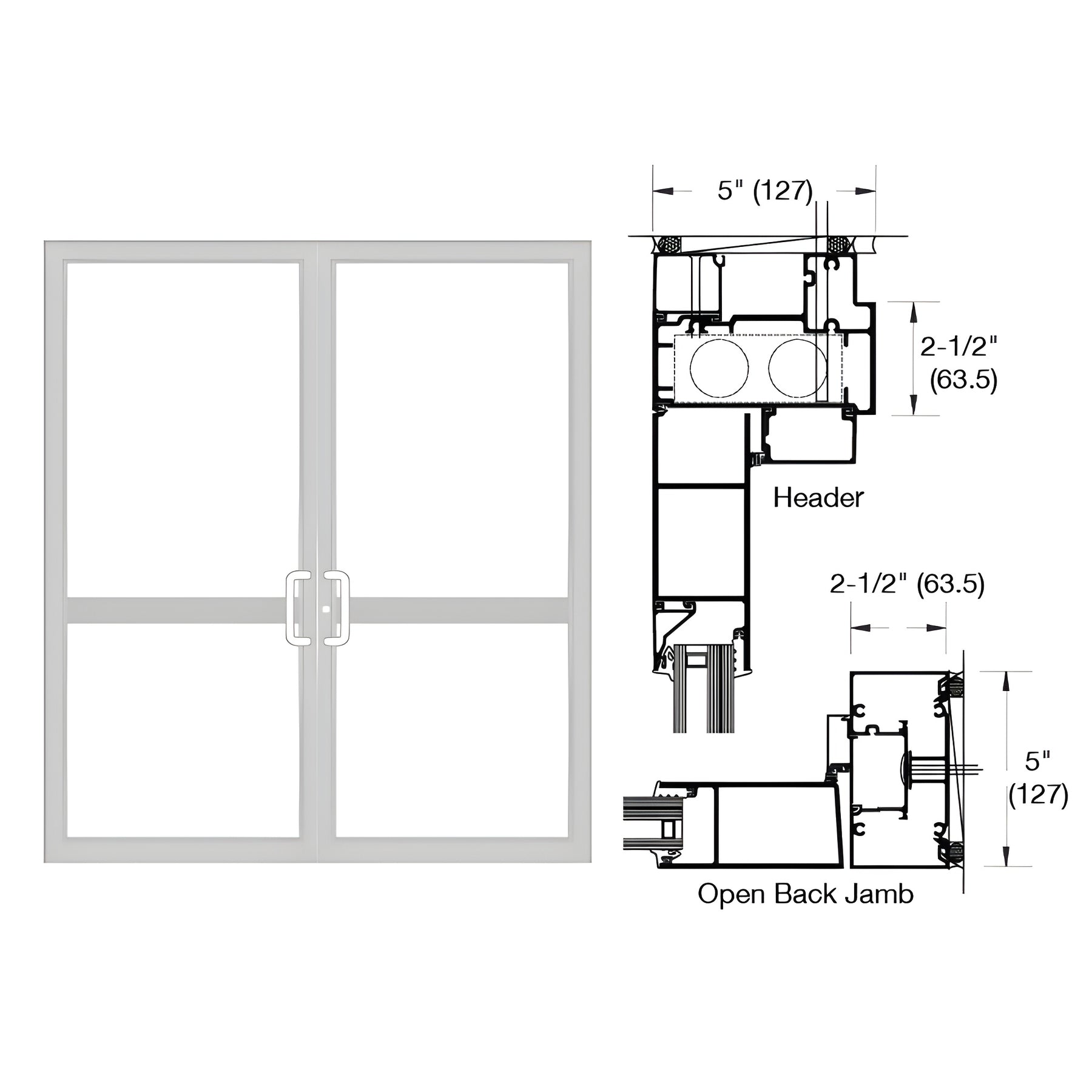

• 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
• Includes Prep for 1-1/2 Pair Butt Hinges (Not Included)
• Includes Prep for Over Concealed Closer and Standard CVR Panic Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Double Up/Over Door Frame is built to accommodate a pair butt hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing, constructed using IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, overhead concealed closer, and standard CVR panic strike.

When installing hurricane impact product always refer to FPA Guidelines.
