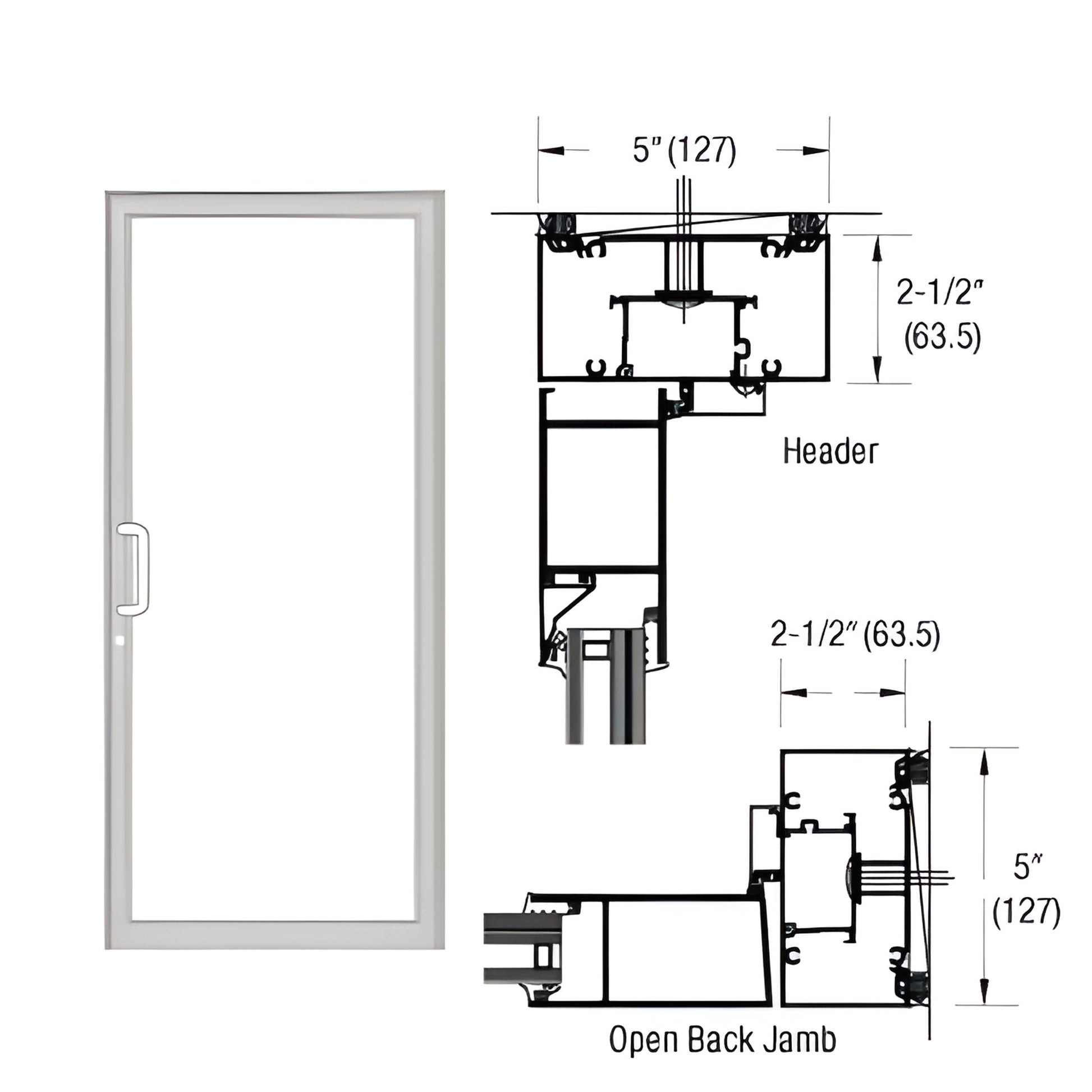

• Clear anodized up/over hurricane impact door frame SKU 0F71811 with air threshold, pull handle and cross section technical dr
1 1

CRL

CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Frame for Geared Hinge

CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Frame for Geared Hinge

$1,916.96 CAD
$1,916.96 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F71811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Includes air-resistant threshold
  • Optional air/water-resistant threshold
  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged up/over impact door frame for surface-mounted closer
  • Prepped for standard deadbolt strike

Custom Up/Over Door Frame (SKU: 0F71811) — Engineered for a single geared-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626 door jambs, IG626/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware prep includes geared hinges and a standard deadbolt strike for easy installation with a surface-mounted closer.


Designed for hurricane impact applications and enhanced air performance — ideal when you need an air-resistant threshold and a frame compatible with laminated impact glazing and surface-mounted closers. Always follow FPA guidelines when installing hurricane impact products.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Need this frame for a project? Contact CRL Customer Service to confirm weight, lead time, and ordering details.
