CRL-U.S. Aluminum IG600 Custom Up/Over Door Frame for Concealed Closer
CRL-U.S. Aluminum IG600 Custom Up/Over Door Frame for Concealed Closer
Regular price
$2,351.85 CAD
Regular price
Sale price
$2,351.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F71911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Label Certified
- Includes Air Resistant Threshold (TH811)
- Optional Air/Water Resistant Threshold available

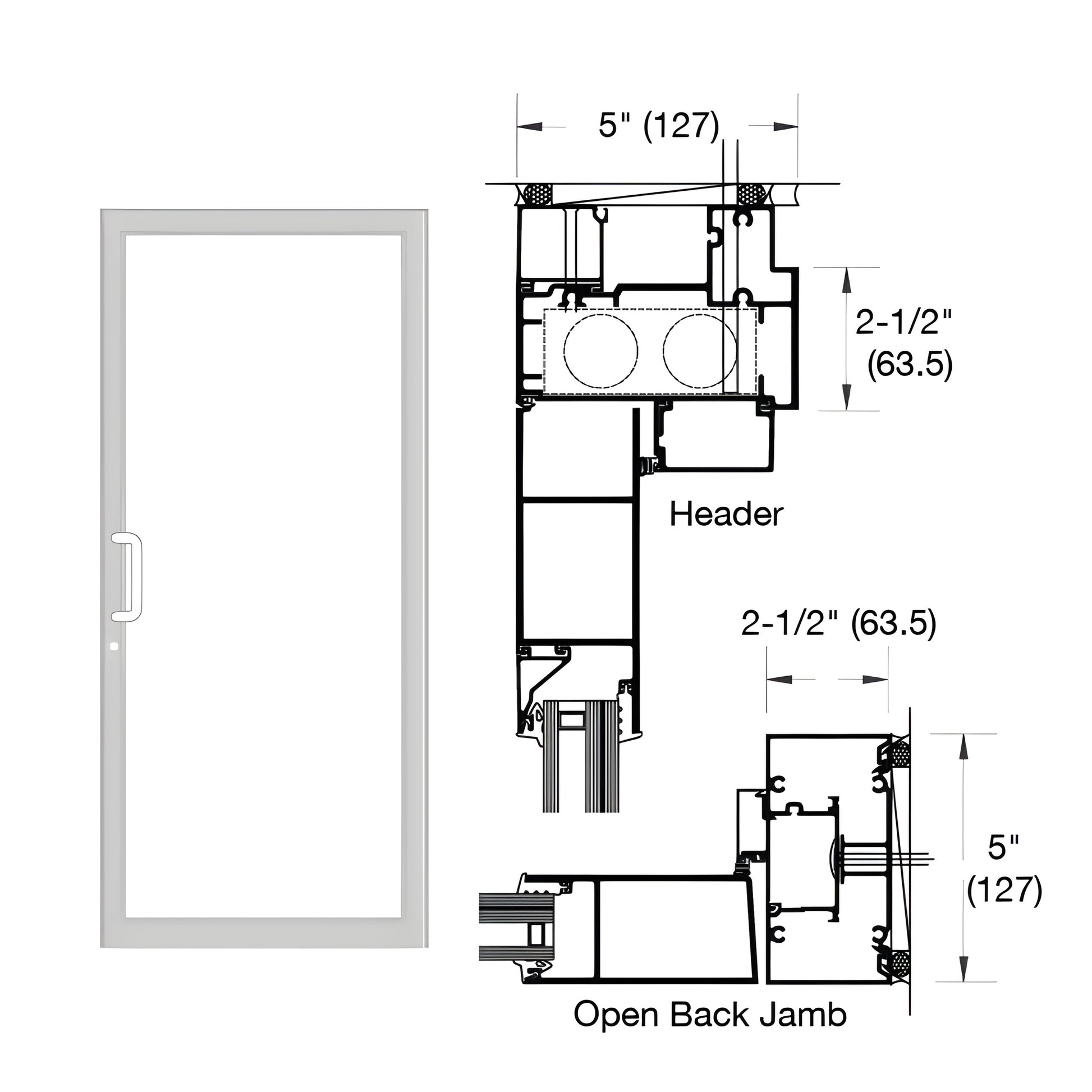

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
- Includes prep for overhead concealed closer and standard deadbolt strike
Custom Up/Over Door Frame (SKU: 0F71911) — Built for a single geared hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626 / IG147 / IG146 door jambs, IG667 / IG663 / IG200 header with NP803 and NP801 gaskets for overhead concealed closer, and TH811 air threshold. Hardware preparations include overhead concealed closer and standard deadbolt strike.
When installing hurricane impact products, always refer to FPA Guidelines.
Designed for coastal and high-wind regions—order this custom hurricane impact up/over door frame today.
