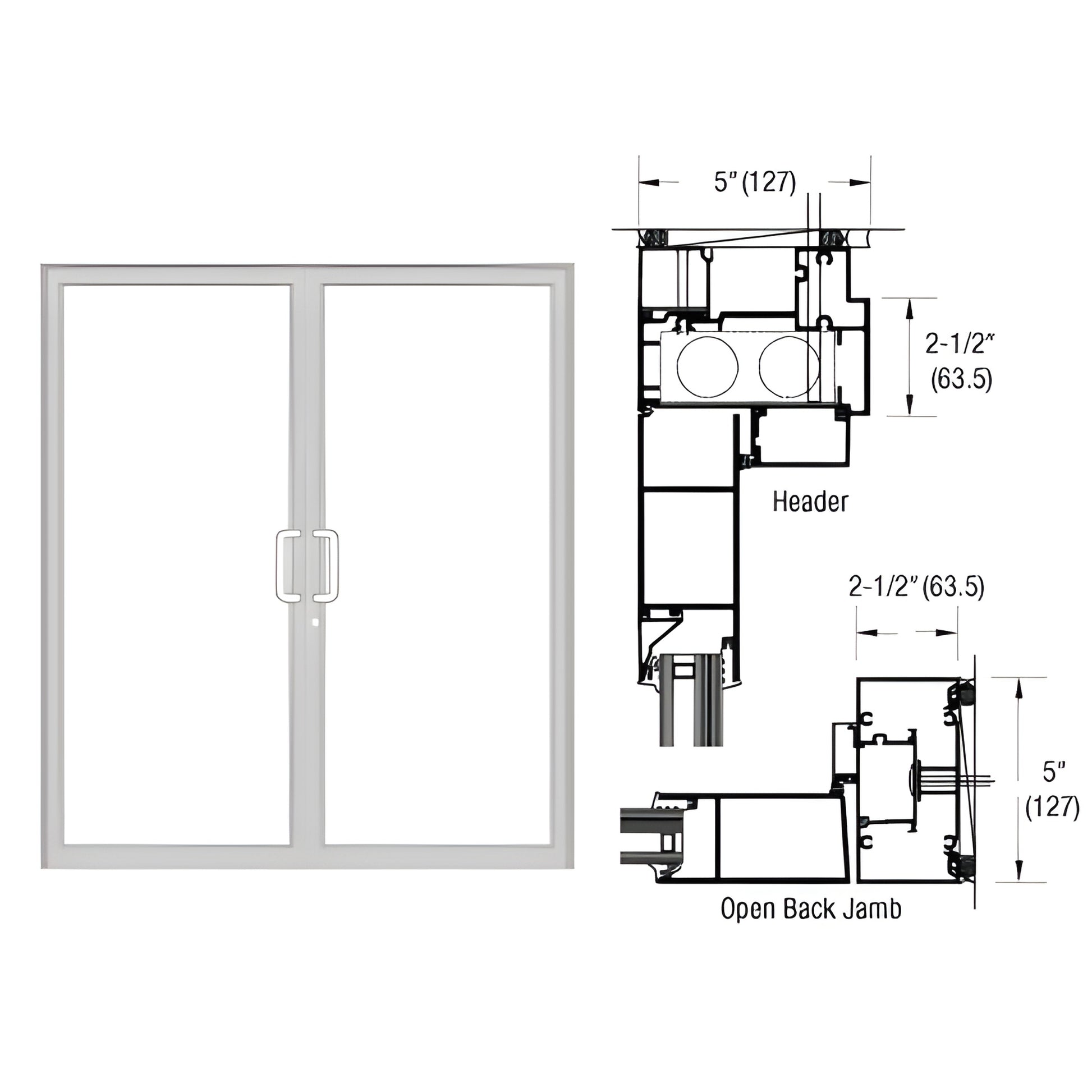

• Clear anodized up/over paired hurricane impact door frame SKU 0F72911, double doors with air threshold and section drawing
1 1

CRL

CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Frame Geared Hinges

CRL-U.S. Aluminum IG600 Clear Anodized Up/Over Frame Geared Hinges

$2,753.10 CAD
$2,753.10 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F72911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
  • Includes prep for overhead concealed closer and flush-bolt strike

Custom Up/Over Door Frame — Engineered for paired geared-hinged hurricane impact doors, SKU 0F72911 supports 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG147/IG146 door jambs and IG667/IG663/IG200 header components with NP803 and NP801 gaskets for overhead concealed closer compatibility. Includes TH811 air threshold; optional air/water resistant threshold available. Hardware prep includes provision for an overhead concealed closer and a standard flush-bolt strike.


Designed for hurricane impact performance and air-resistant perimeter sealing — ideal for coastal and high-wind commercial applications requiring laminated impact glazing and concealed-closing hardware.

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

For pricing, lead times, or to order SKU 0F72911, contact CRL Customer Service or your local distributor.
