CRL-U.S. Aluminum IG600 Transom Frame w/ KYNAR® Paint & Butt Hinge
CRL-U.S. Aluminum IG600 Transom Frame w/ KYNAR® Paint & Butt Hinge
Regular price
$2,303.12 CAD
Regular price
Sale price
$2,303.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F91571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

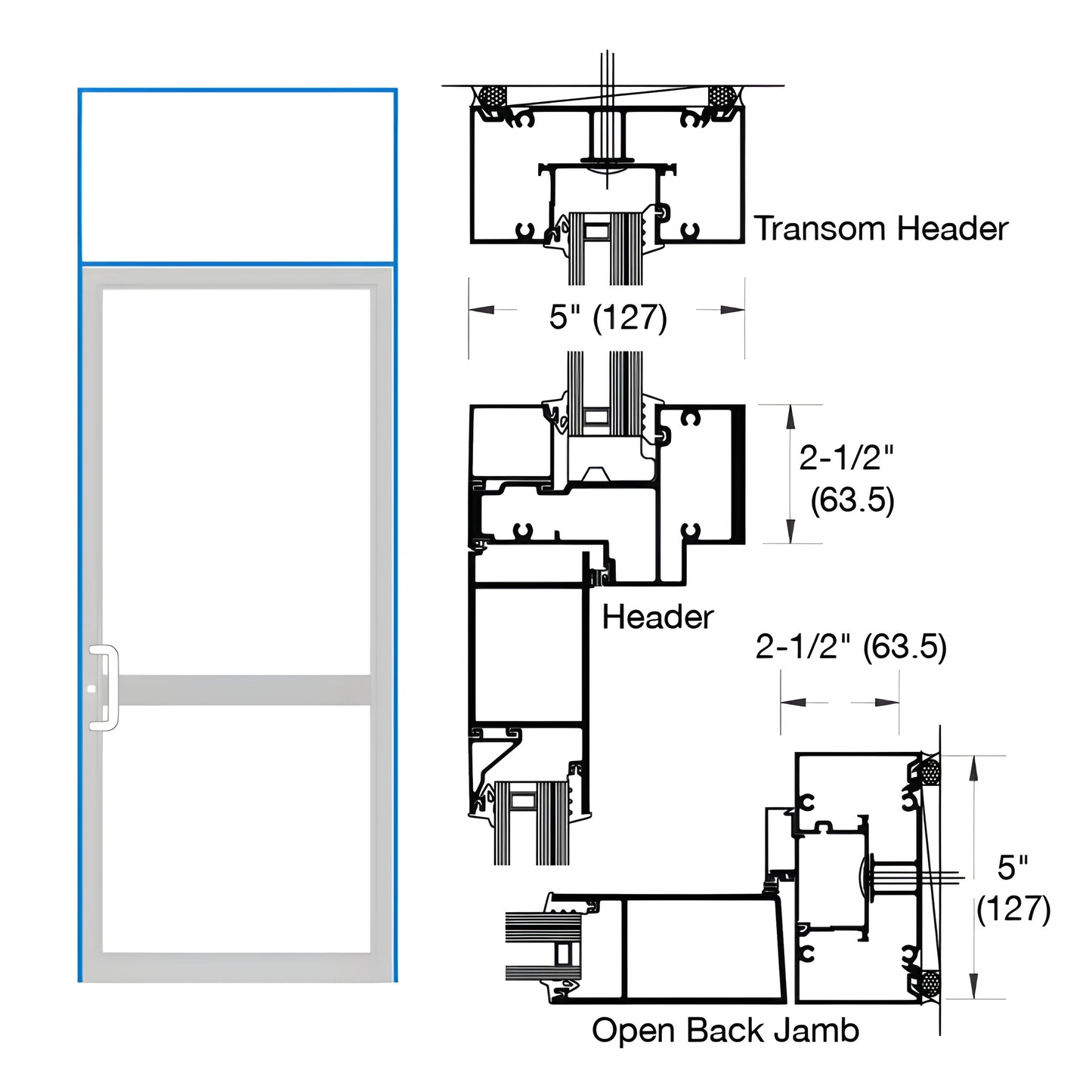

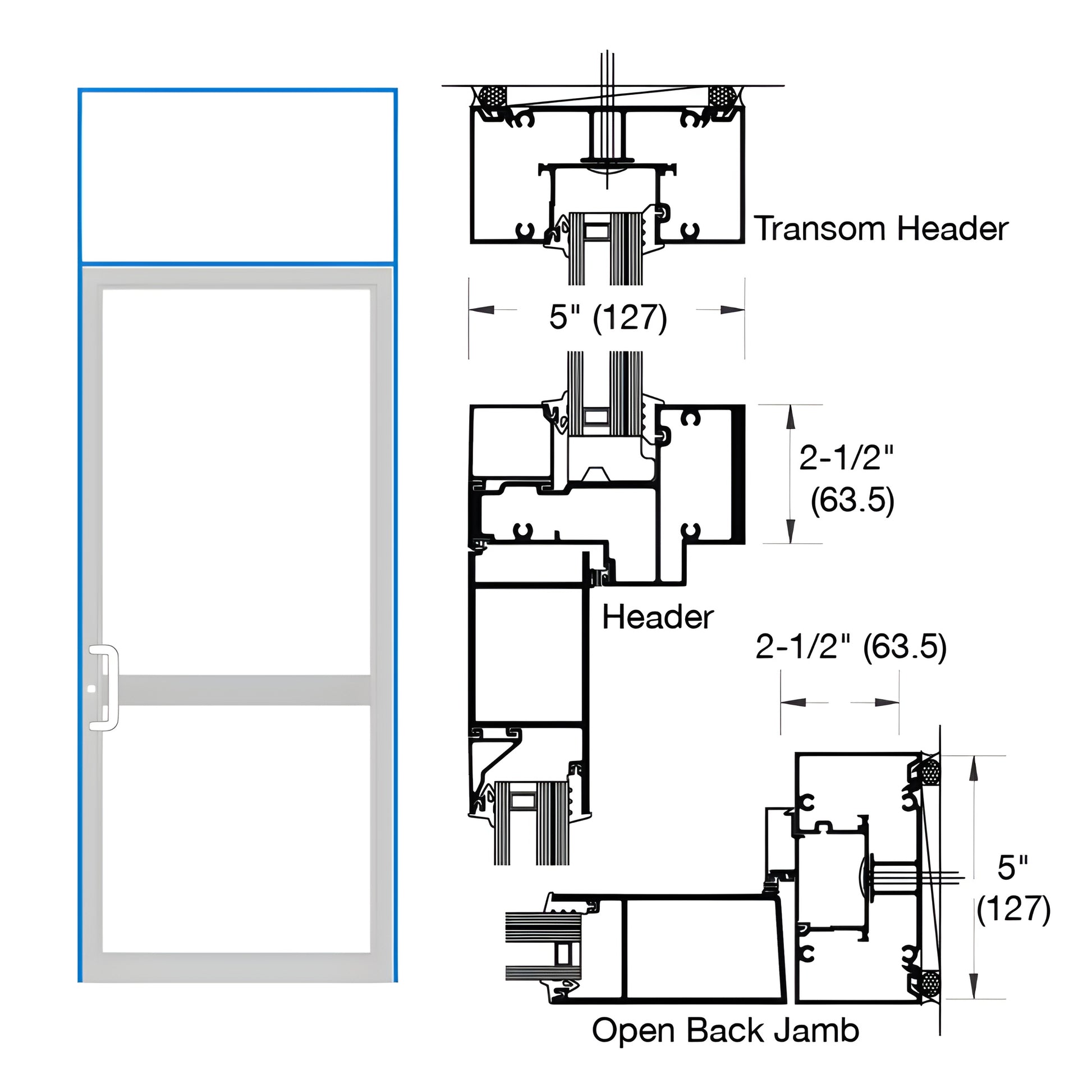

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for standard flush-bolt / deadbolt strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
This Custom Single Transom Door Frame (SKU: 0F91571) is engineered for single butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold. Hardware prep includes 1-1/2" pair of butt hinges and a standard deadbolt strike. Ideal when you need a durable, code-conscious hurricane impact door frame and transom solution.
Note: When installing hurricane impact products always refer to FPA Guidelines.
Order this hurricane-rated custom transom door frame (SKU: 0F91571) or contact CRL for a quote and installation guidance.
