CRL-U.S. Aluminum IG600 Transom Door Frame, Kynar Painted, Butt Hinge
CRL-U.S. Aluminum IG600 Transom Door Frame, Kynar Painted, Butt Hinge
Regular price
$2,282.25 CAD
Regular price
Sale price
$2,282.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P91571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame — SKU: 0P91571
- Prepped for 1-1/2" pair of butt hinges (hinges not included)
- Prepped for CVR panic strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available

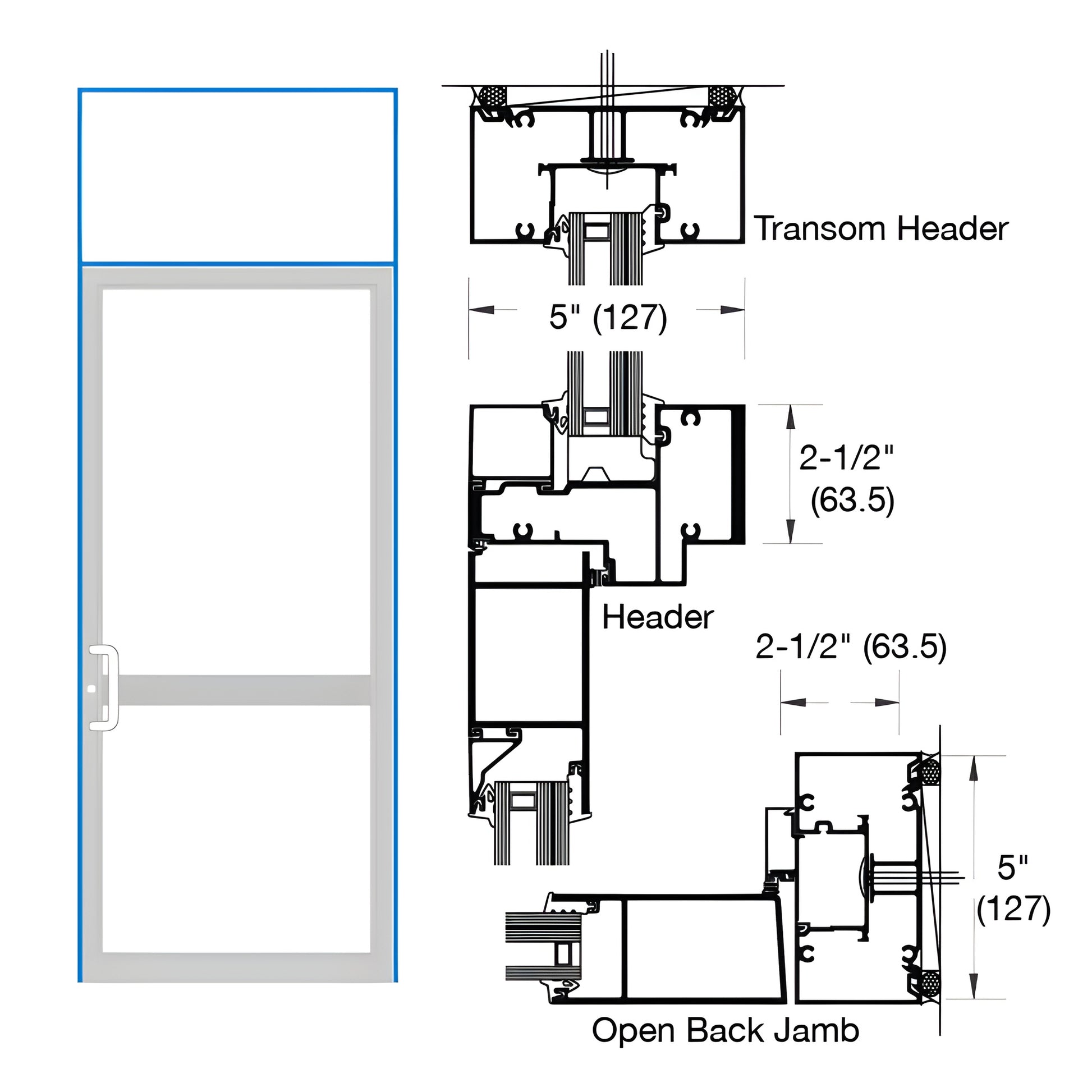

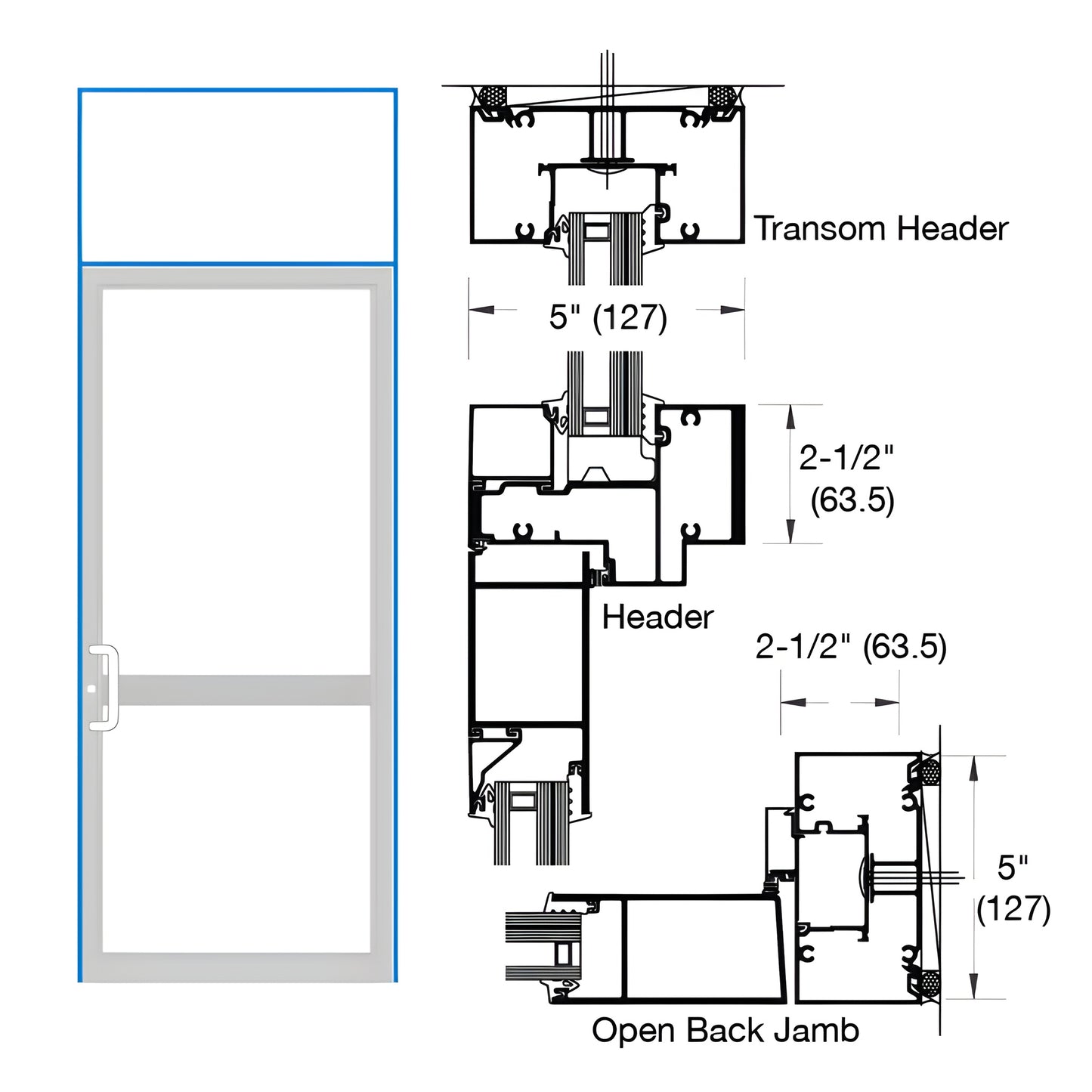

Custom Single Transom Door Frame designed for hurricane-impact transom installations. Fits a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing and surface-mounted closers. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold. Hardware preparations include provisions for 1-1/2" pair of butt hinges and a standard CVR panic strike.
Ideal for hurricane-impact transom door projects and coastal installations requiring air-resistant thresholds and panic hardware prep. Follow FPA guidelines when installing hurricane impact products.
Ready to specify? Contact us to confirm options and lead times for SKU 0P91571.
Specifications
