CRL-U.S. Aluminum IG600 Transom Frame, Butt Hinge & Concealed Closer
CRL-U.S. Aluminum IG600 Transom Frame, Butt Hinge & Concealed Closer
Regular price
$2,738.00 CAD
Regular price
Sale price
$2,738.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F91471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

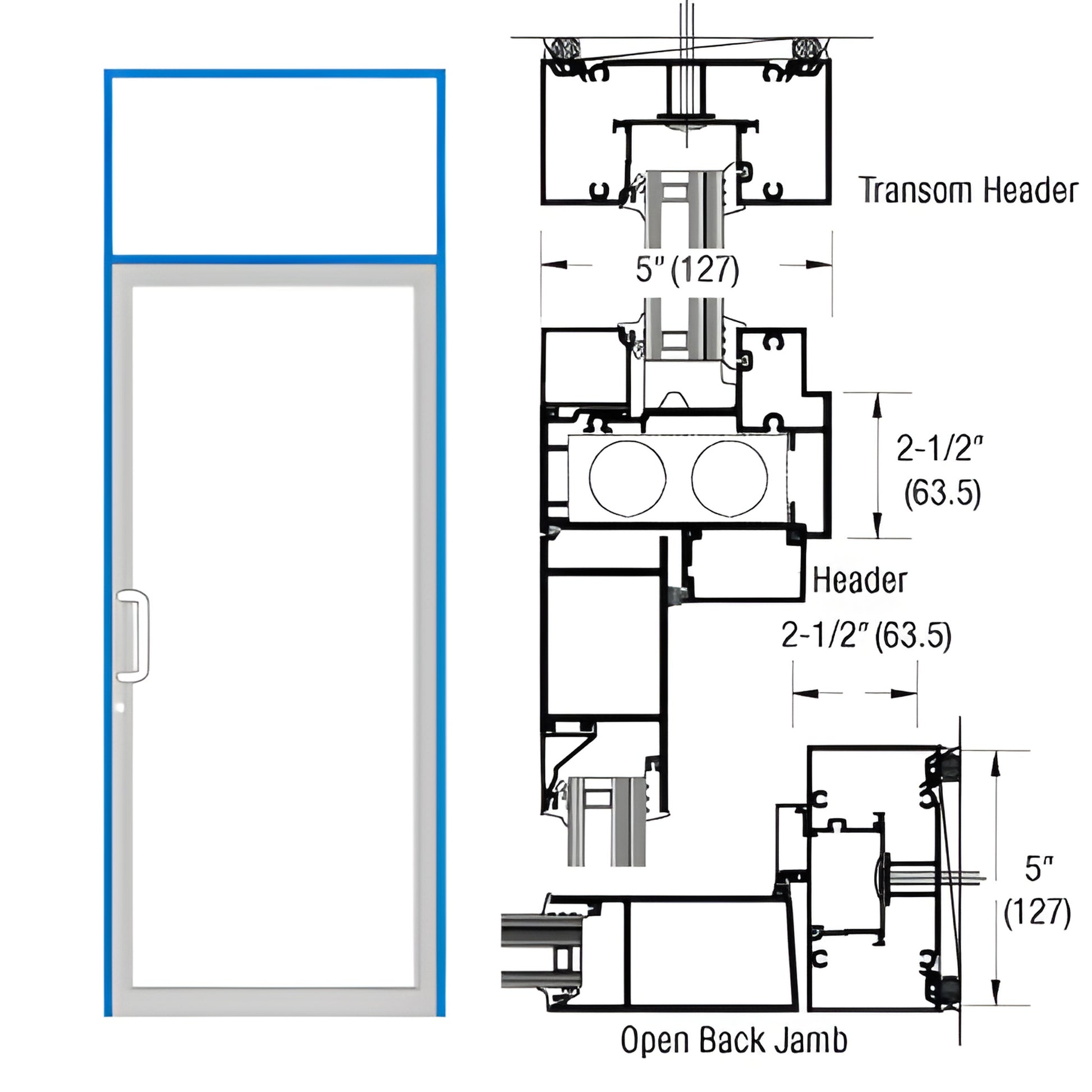

- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Prep for 1-1/2" pair butt hinges (hinges not included)
- Prep for overhead concealed closer and standard deadbolt strike
- Includes air resistant threshold (TH811)
- Optional air/water resistant threshold available
This Custom Single Transom Door Frame is engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and TH811 air threshold, it features factory preparations for butt hinges, an overhead concealed closer, and a standard deadbolt strike—ideal for coastal and high-wind applications where hurricane impact-rated transom frames are required.
When installing hurricane impact products, always refer to FPA Guidelines.
SKU: 0F91471 — Order this custom transom frame for hurricane impact doors today.
