CRL-U.S. Aluminum IG600 Transom, Kynar, Butt-Hinge & Concealed Closer

CRL-U.S. Aluminum IG600 Transom, Kynar, Butt-Hinge & Concealed Closer

$3,531.23 CAD
$3,531.23 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F92471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

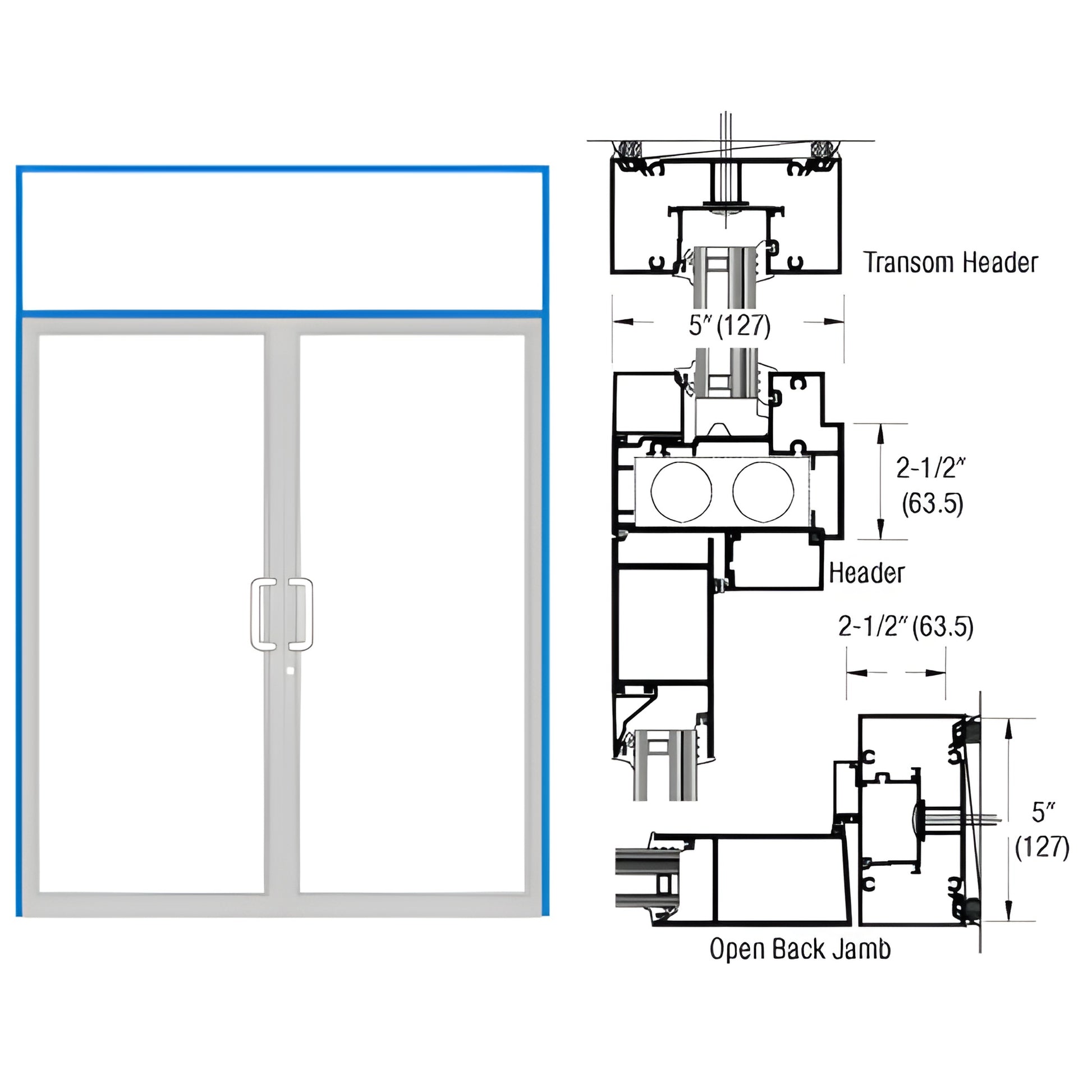

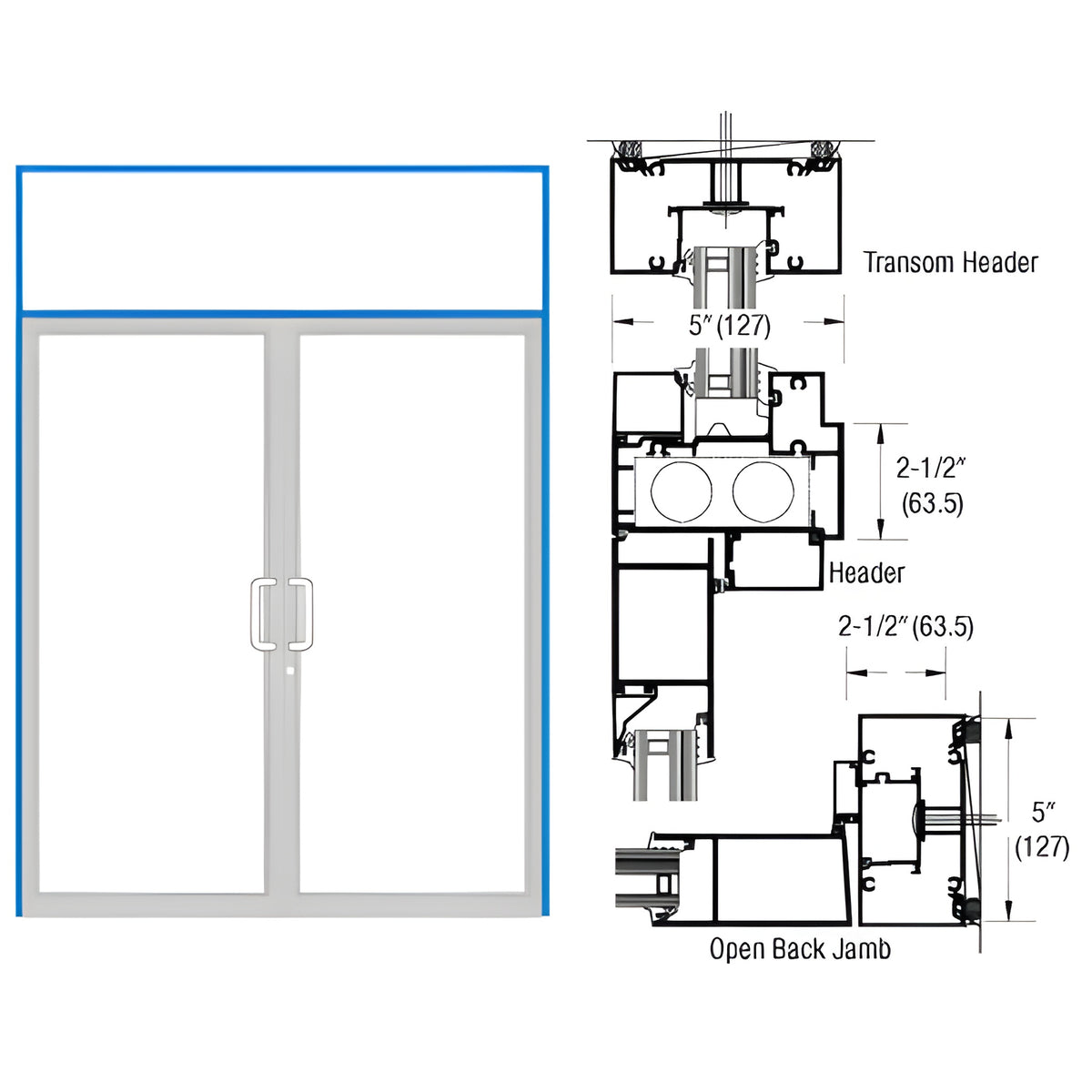

  • 2-1/2" x 5" (63.5 x 127 mm) transom door frame for double transom installations
  • Prep for 1-1/2" pair butt hinges (hinges not included)
  • Prep for overhead concealed closer and standard deadbolt strike
  • Includes TH811 air resistant threshold
  • Optional air/water resistant threshold available
  • Warnings: When installing hurricane impact products always refer to FPA Guidelines

This Custom Double Transom Door Frame (SKU: 0F92471) is designed for hurricane impact applications and accepts 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and TH811 air threshold, it provides hardware preparations for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard deadbolt strike. Ideal as a hurricane impact transom door frame or custom double transom frame for impact doors where air resistance and hardware integration are required.

When installing hurricane impact product always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order this custom hurricane impact double transom door frame (SKU: 0F92471) or contact CRL for a quote and installation guidance.
