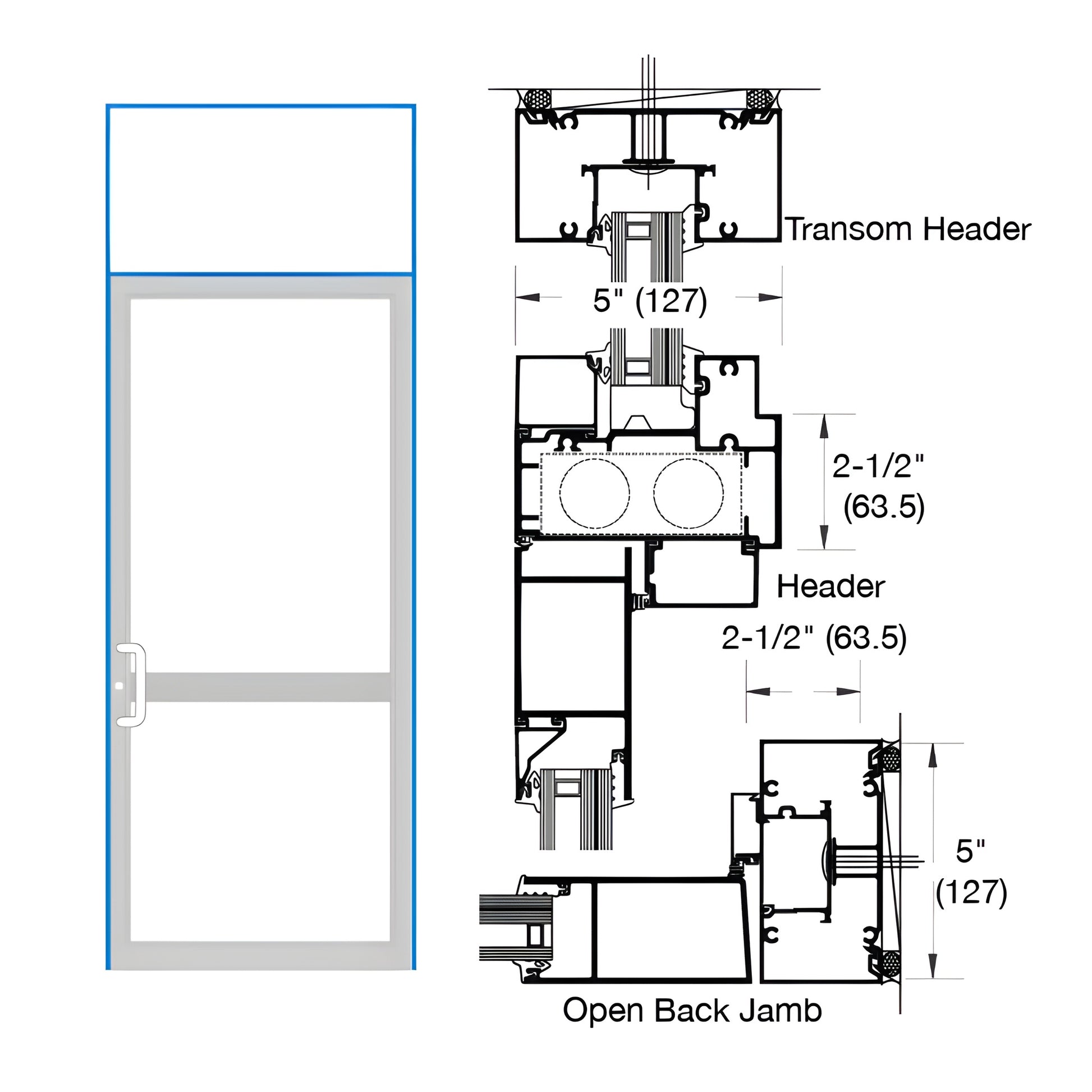

• Custom Kynar single transom hurricane impact door frame (SKU 0P91471) with transom, threshold and technical cross-section dia
1 1

CRL

CRL-U.S. Aluminum IG600 Transom Door Frame - KYNAR Paint, Butt Hinge

CRL-U.S. Aluminum IG600 Transom Door Frame - KYNAR Paint, Butt Hinge

$2,717.15 CAD
$2,717.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P91471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
  • Prep for 1-1/2" pair butt hinges (hinges not included)
  • Prep for overhead concealed closer and standard CVR panic strike
  • Includes TH811 air resistant threshold
  • Optional air/water resistant threshold available

This Custom Single Transom Door Frame (SKU: 0P91471) is engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, and IG626/IG147/IG146 transom header, it includes hardware preparations for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard CVR panic strike. Ideal for coastal and high-wind installations requiring a hurricane impact door frame with air resistant threshold options.

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service prior to submitting your order. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.


Need a quote or technical help selecting the right hurricane impact door frame? Contact CRL Customer Service to get assistance and place your order.
