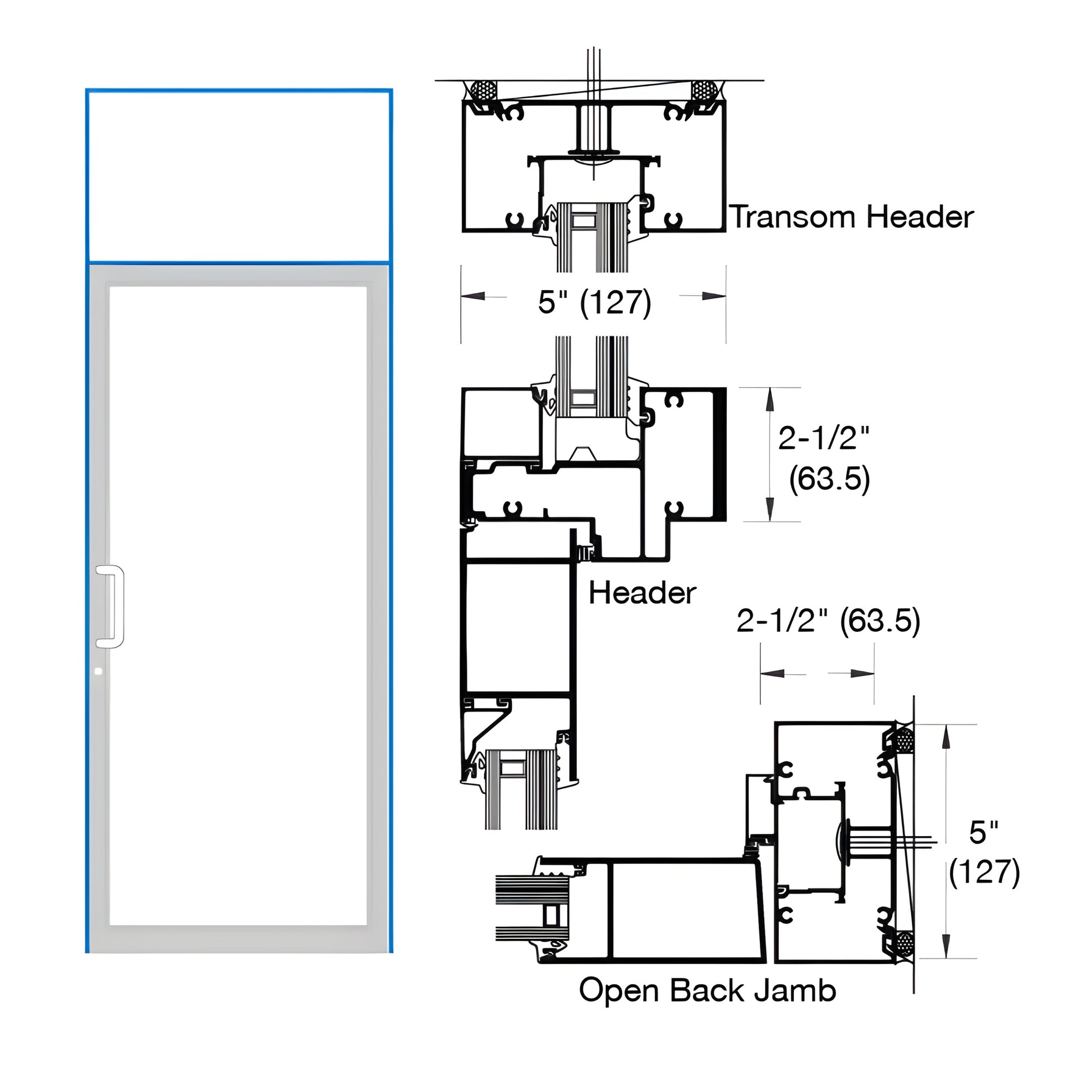

• Hurricane-rated Custom Kynar transom door frame diagram, 5" transom, 2-1/2" jamb - SKU 0F91871
1 1

CRL

CRL-U.S. Aluminum IG600 Transom Frame - Kynar® Paint, Hinge/Flushbolt

CRL-U.S. Aluminum IG600 Transom Frame - Kynar® Paint, Hinge/Flushbolt

$2,738.00 CAD
$2,738.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F91871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame for surface closer (geared hinge not included)
  • Prepped for standard deadbolt strike
  • Includes air resistant threshold
  • Optional air/water resistant threshold available

This Custom Transom Door Frame (SKU: 0F91871) is engineered for a single geared-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing and a surface-mount closer. Constructed from IG626 door jambs, IG147/IG146 door stops, IG667/IG663 header, IG626 transom header, and TH811 air threshold. Hardware preparations include geared hinge reinforcement and standard deadbolt strike cutouts. Ideal for coastal and hurricane-prone installations seeking a durable, code-ready transom frame solution with air-resistant threshold options and compatibility with surface closers.

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Order the 0F91871 hurricane-rated transom door frame today — contact CRL for a quote and lead time.
