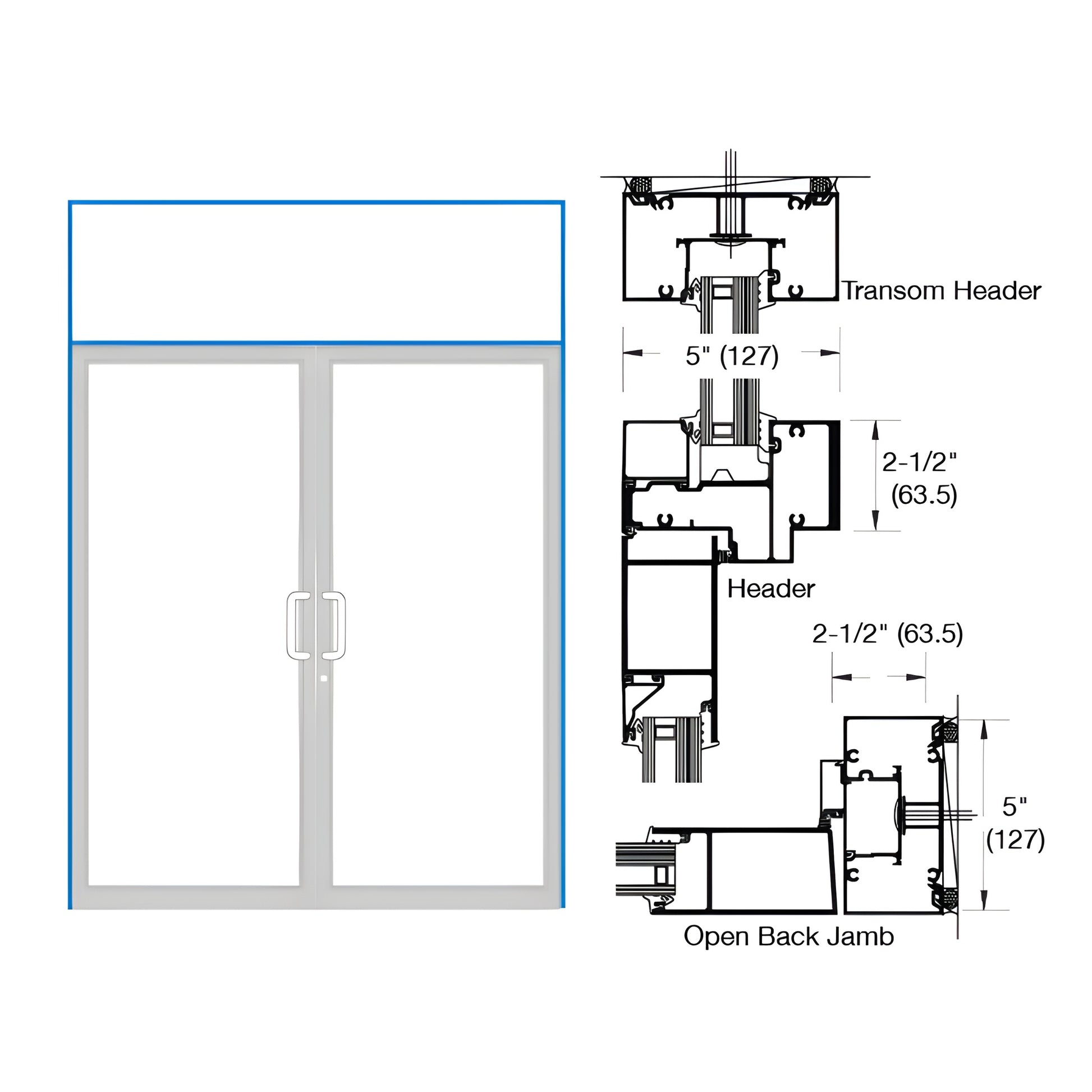

• Double impact transom door frame diagram and front view, geared-hinged pair, custom Kynar finish - SKU 0F92871
1 1

CRL

CRL-U.S. Aluminum IG600 KYNAR Transom Frame, Geared Hinge, Flushbolt

CRL-U.S. Aluminum IG600 KYNAR Transom Frame, Geared Hinge, Flushbolt

$3,531.23 CAD
$3,531.23 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F92871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Prepped for Standard Flushbolt Strike
  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame for Surface Closer (Geared Hinge Not Included)

Custom Transom Door Frame — Built for hurricane impact installations, this custom transom frame supports a pair of geared-hinged impact doors and is designed for 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626 door jambs, IG147/IG146 door stops, IG667/IG663 header, IG626 transom header, and TH811 air threshold. Hardware preparations include geared hinge provisions and a standard flushbolt strike, optimized for surface-mount closers.

Highlights & differentiators:

  • Engineered for hurricane impact door applications and geared-hinged transom configurations
  • Includes air resistant threshold; optional upgrade to air/water resistant threshold for improved sealing
  • Compatible with surface-mount closers and 1-5/16" laminated impact glazing
  • Constructed from IG-series profiles for reliable performance in impact-rated storefront systems

SKU: 0F92871

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Order or request a quote for SKU 0F92871 to get started.
