CRL-U.S. Aluminum Kynar Transom Frame for Geared & Overhead Closers

CRL-U.S. Aluminum Kynar Transom Frame for Geared & Overhead Closers

$3,172.89 CAD
$3,172.89 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F91971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

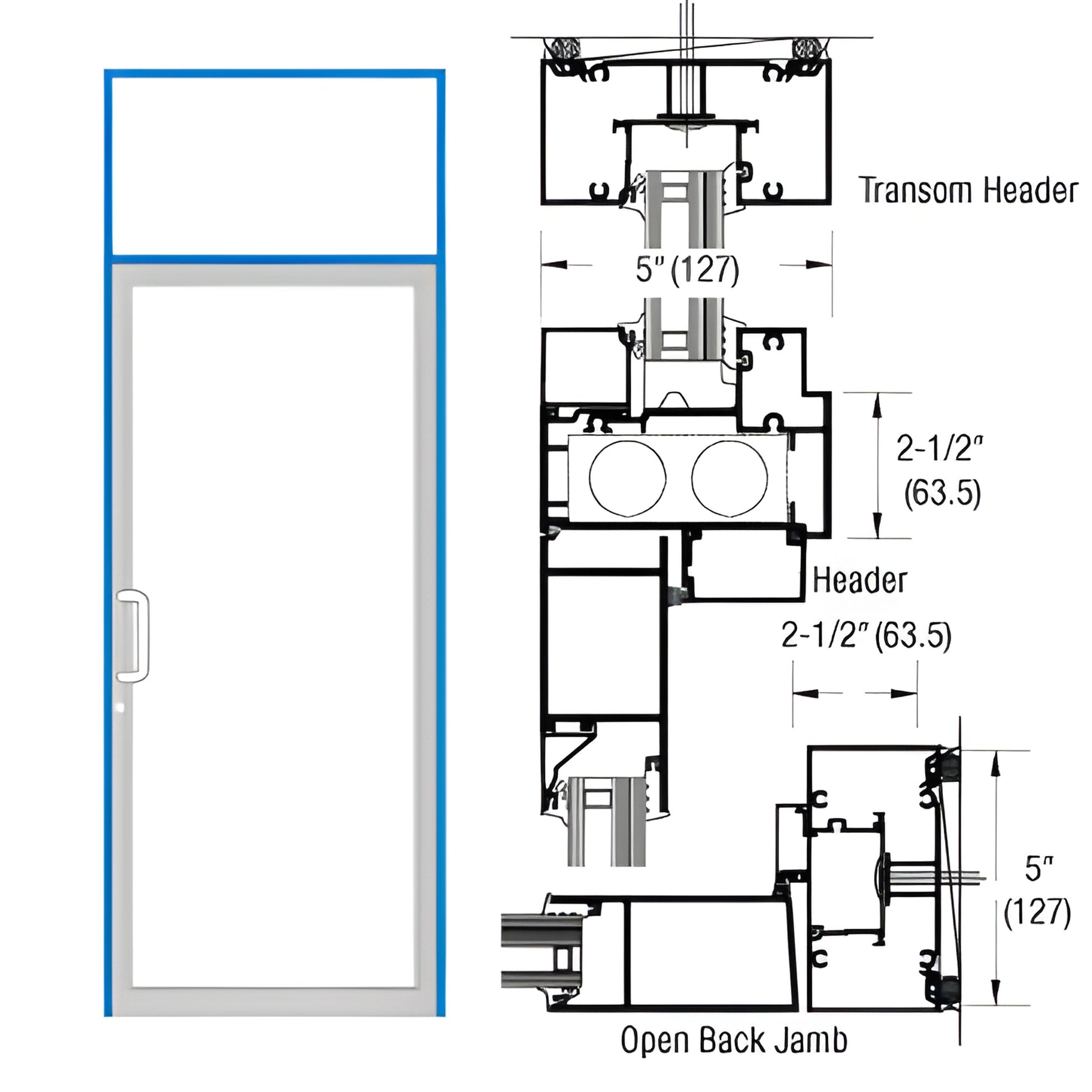

  • 2-1/2" x 5" (63.5 x 127 mm) transom door frame — SKU: 0F91971
  • Built for single geared hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing
  • Includes prep for overhead concealed closer and standard deadbolt strike
  • Includes TH811 air resistant threshold; optional air/water resistant threshold available

This Custom Transom Door Frame is engineered for hurricane impact performance and weather resistance. Constructed with IG626/IG147/IG146 door jambs, IG667/IG200/IG663 header with NP803 and NP801 gaskets for overhead concealed closer prep, IG626 transom header, and TH811 air threshold. Hardware preparations include overhead concealed closer and standard deadbolt strike—ideal for projects requiring a durable custom transom frame with impact-rated glazing compatibility.

When installing hurricane impact product always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Order SKU 0F91971 or contact CRL for a quote and lead time.
