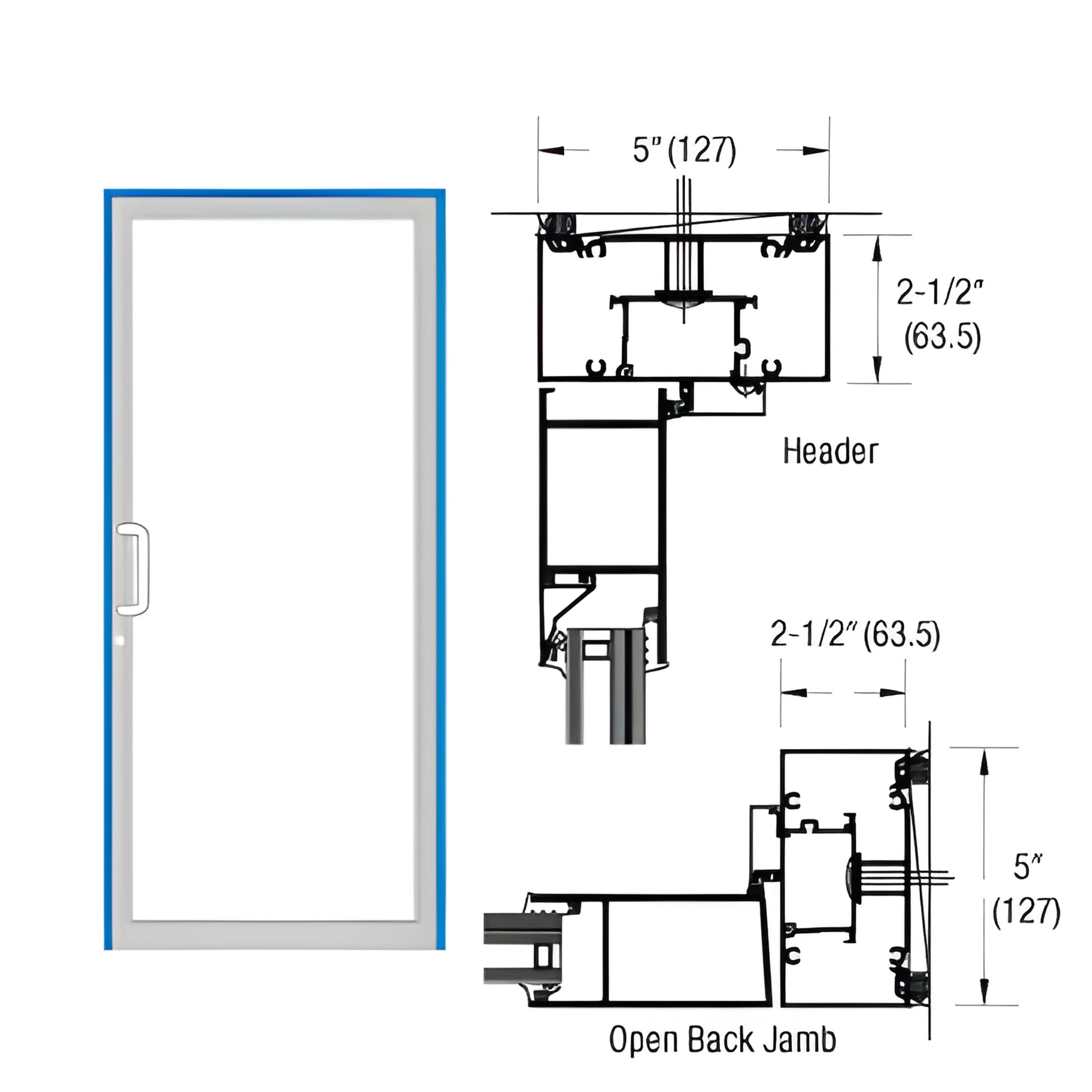

• Hurricane-impact single butt-hinged door frame (SKU 0F71571) front view and technical cross-section diagram, custom Kynar fin
1 1

CRL

CRL-U.S. Aluminum IG600 KYNAR Custom Door Frame w/ Up-Over Butt Hinge

CRL-U.S. Aluminum IG600 KYNAR Custom Door Frame w/ Up-Over Butt Hinge

$1,665.31 CAD
$1,665.31 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F71571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Prepped for 1-1/2 pair of butt hinges (not included)
  • Prepped for standard deadbolt strike
  • Includes air resistant threshold; optional air/water resistant threshold available
  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact door frame

Custom Single Up/Over Door Frame (SKU: 0F71571) — Built for a single butt-hinged hurricane impact door. Engineered to accept 1-5/16" (33 mm) laminated impact glazing and surface-mount closers. Constructed with IG626/IG146/IG147 door jambs, IG668 header with IG146/IG147 seal, and TH811 air threshold. Hardware prep includes 1-1/2 pair butt hinge locations and standard deadbolt strike.

Key differentiators: purpose-built for hurricane impact doors, compatibility with laminated impact glazing, optional air/water resistant threshold for enhanced weather protection, and factory-prepped hinge and deadbolt locations to speed installation.

When installing hurricane impact products, always follow FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor settings.

Order the hurricane impact butt-hinged door frame (SKU: 0F71571) today to ensure a weather-resistant, code-ready installation.
