CRL-U.S. Aluminum IG600 KYNAR Frame - Butt Hinge & Concealed Closer
CRL-U.S. Aluminum IG600 KYNAR Frame - Butt Hinge & Concealed Closer
Regular price
$2,100.19 CAD
Regular price
Sale price
$2,100.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F71471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

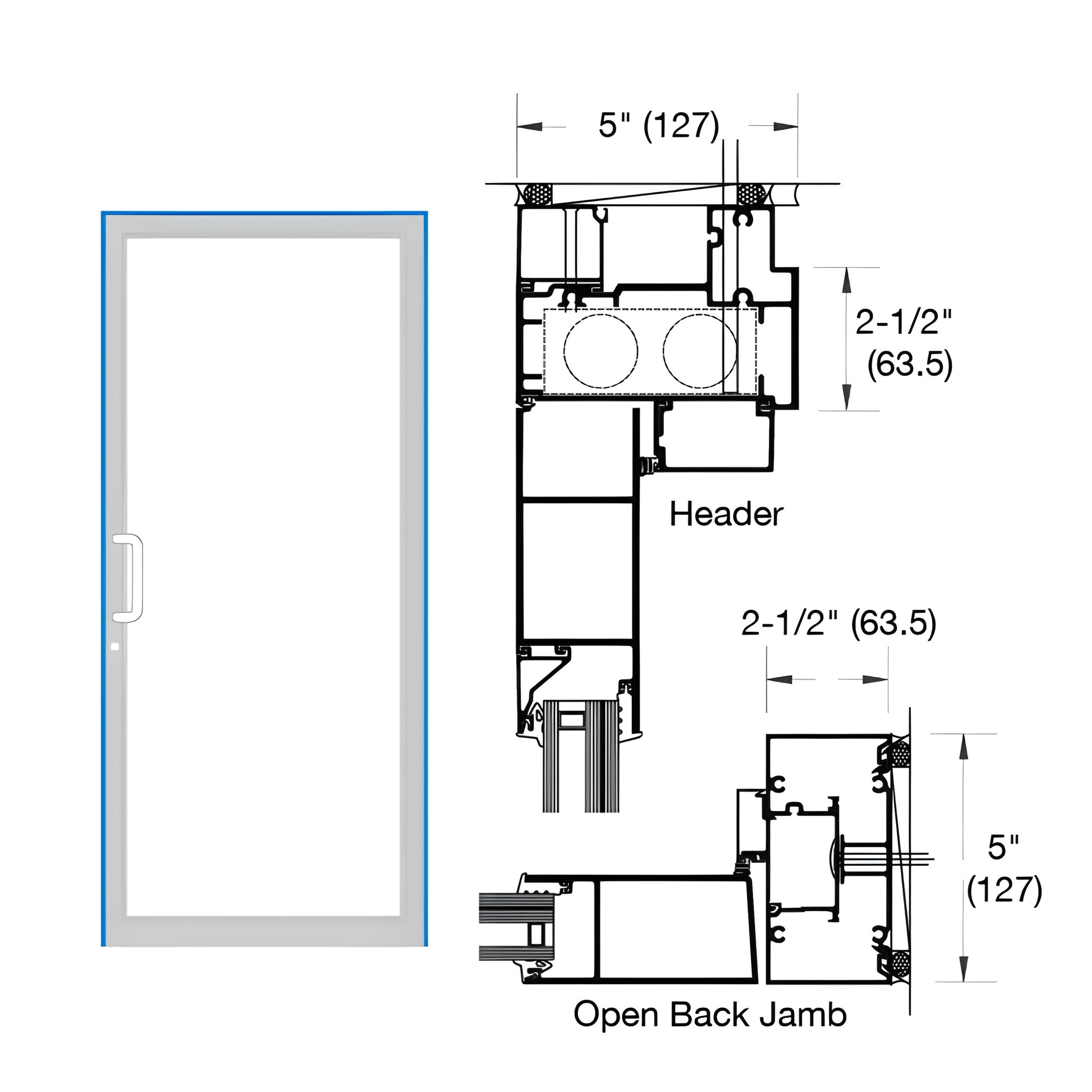

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over door frame for single doors
- Prep for 1-1/2" pair butt hinges (hinges not included)
- Prep for overhead concealed closer and standard deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
This Custom Single Up/Over Door Frame (SKU: 0F71471) is engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG147/IG146 door jambs, IG626/IG146/IG147/IS100 header, and a TH811 air threshold, it features hardware preparations for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard deadbolt strike. Ideal for hurricane impact up-over door installations and coastal applications requiring air-resistant thresholds.
When installing hurricane impact products, always refer to FPA Guidelines.
Need a quote or more details for installation and thresholds? Contact CRL Customer Service to get started.
