CRL-U.S. Aluminum IG600 KYNAR Up/Over Frame - Panic & Overhead Closer

CRL-U.S. Aluminum IG600 KYNAR Up/Over Frame - Panic & Overhead Closer

$2,540.86 CAD
$2,540.86 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P72471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Includes prep for 1-1/2" pair butt hinges (hinges not included)
  • Includes prep for overhead concealed closer and standard CVR panic strike
  • Includes air resistant threshold; optional air/water resistant threshold available

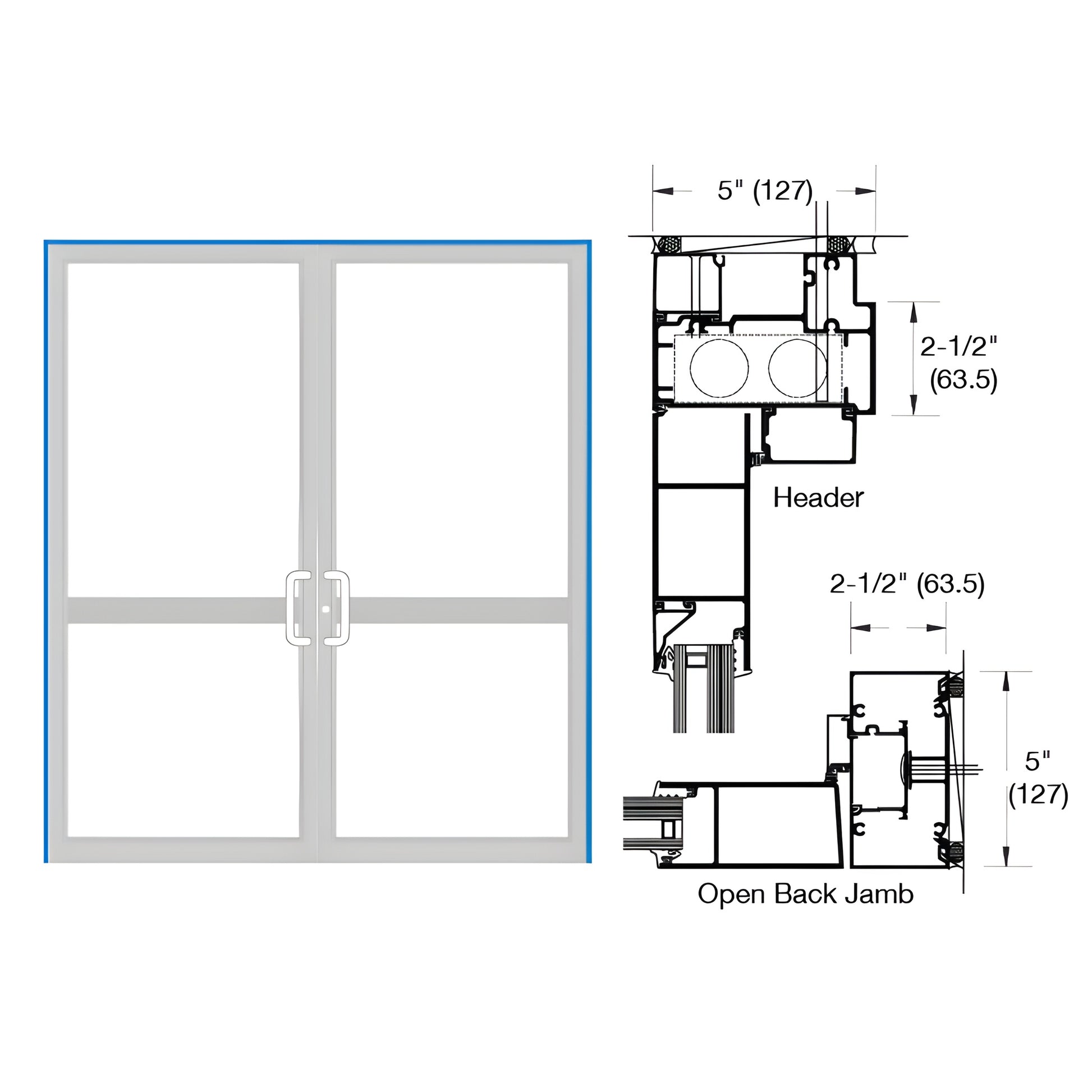

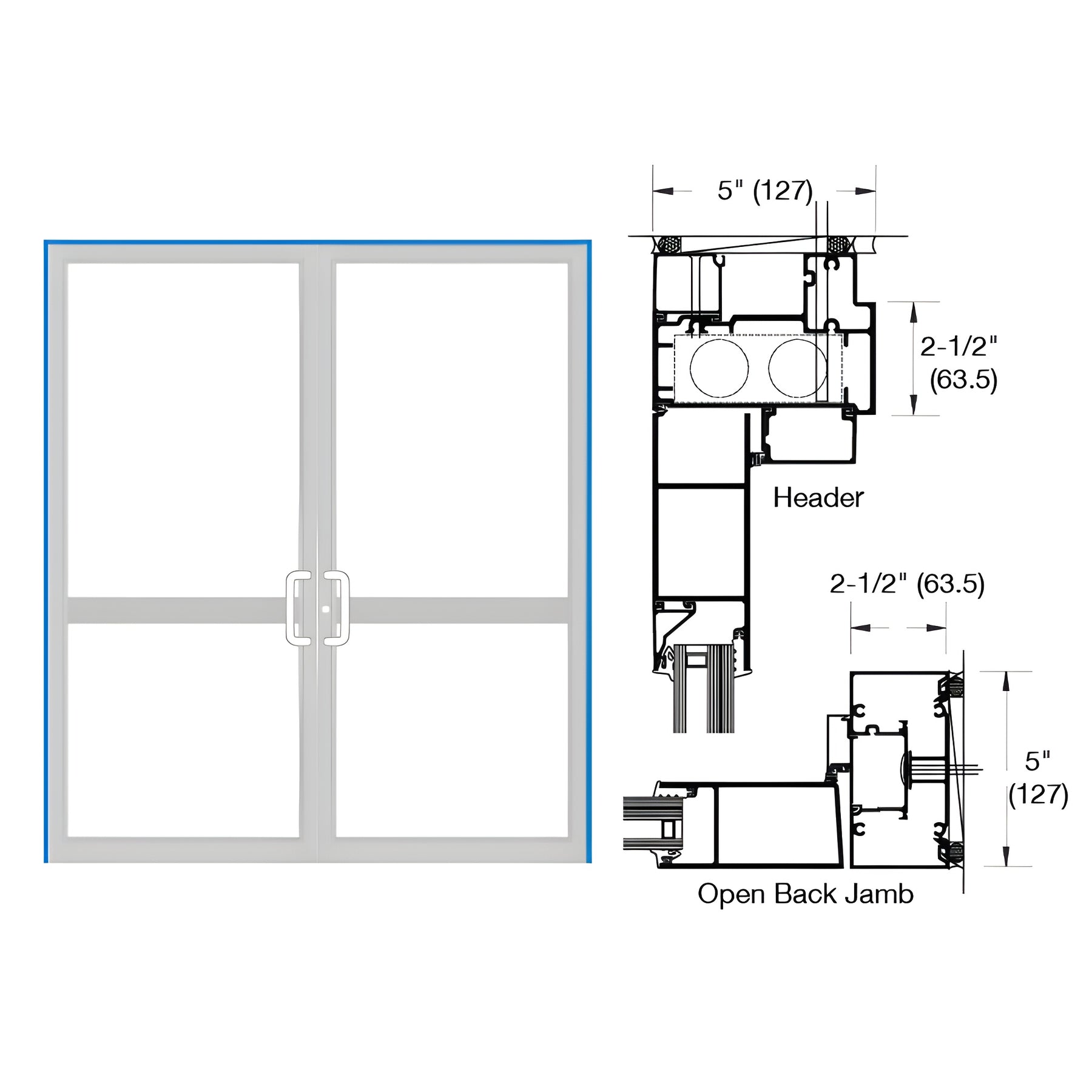

  • 2-1/2" x 5" (63.5 x 127 mm) up/over door frame

This Custom Double Up/Over Door Frame (SKU: 0P72471) is engineered for hurricane impact door systems and built to accommodate a pair of butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, and TH811 air threshold, this frame features factory prep for 1-1/2" pair butt hinges, overhead concealed closer, and standard CVR panic strike — ideal for commercial and coastal applications requiring impact-rated performance and air resistance.

When installing hurricane impact products always refer to FPA guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Highlight: hurricane impact-rated up/over frame with air resistant threshold and factory hardware prep. Contact CRL Customer Service to order or request exact shipping weight.
