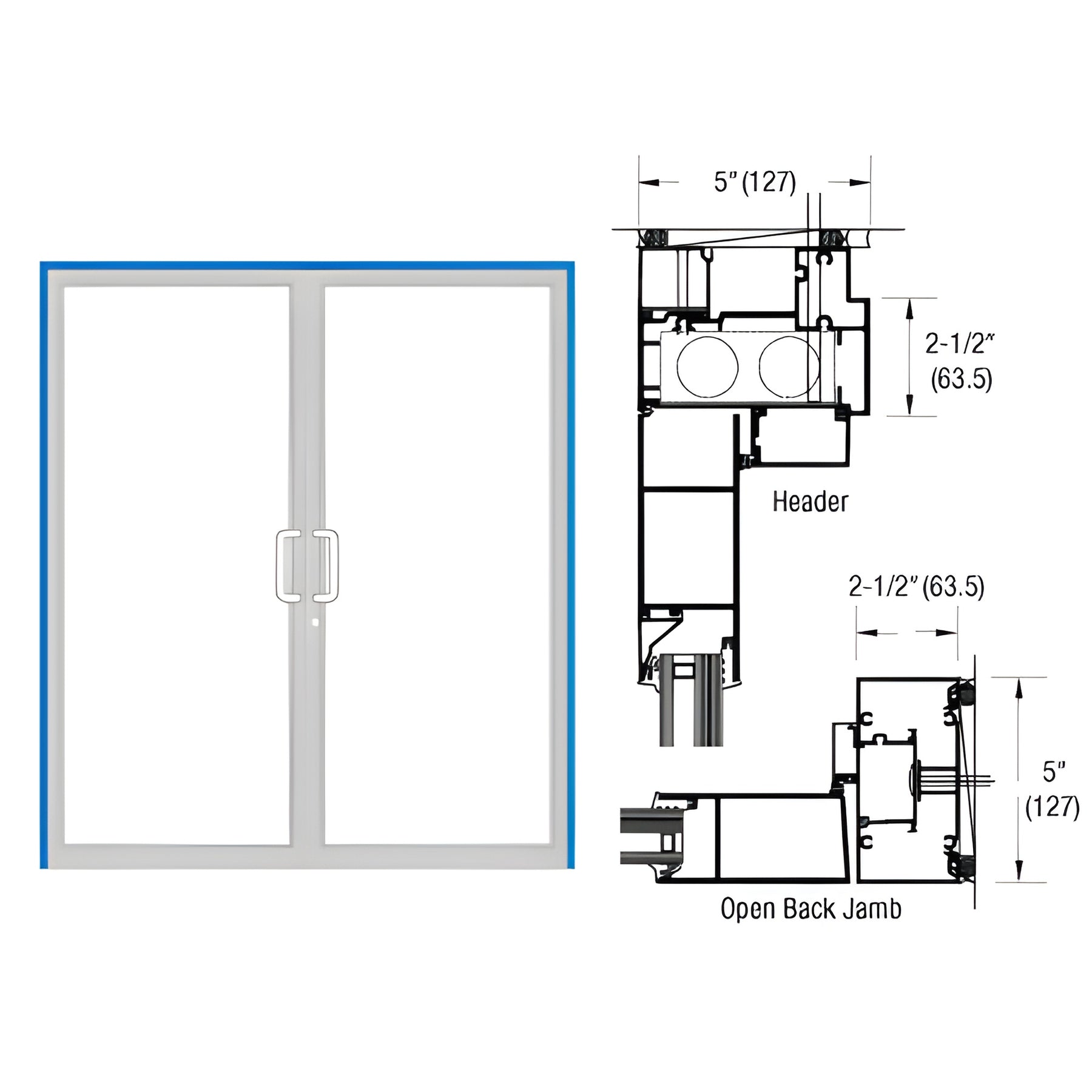

CRL-U.S. Aluminum IG600 Series Custom KYNAR® Paint Custom Up/Over Door Frame for Geared Hinged and Overhead Concealed Closer

Product Details

• 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
• Includes Prep for Overhead Concealed Closer and Flush-Bolt Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Up/Over Door Frame is built to accommodate a pair geared hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing, constructed using IG626/IG147/IG146 door jambs, IG667/IG663/IG200 with NP803 and NP801 gaskets header for overhead concealed closer, and TH811 air threshold, hardware preparations include overhead concealed closer, standard flush-bolt strike.

When installing hurricane impact product always refer to FPA Guidelines.
