• Custom single transom hurricane impact door frame, Black Bronze Anodized Class 1, 2-1/2 in x 5 in, SKU 0F91522
1 1

CRL

CRL-U.S. Aluminum IG600 Dark Bronze/Black Anodized Transom Butt Hinge

CRL-U.S. Aluminum IG600 Dark Bronze/Black Anodized Transom Butt Hinge

$2,303.12 CAD
$2,303.12 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F91522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

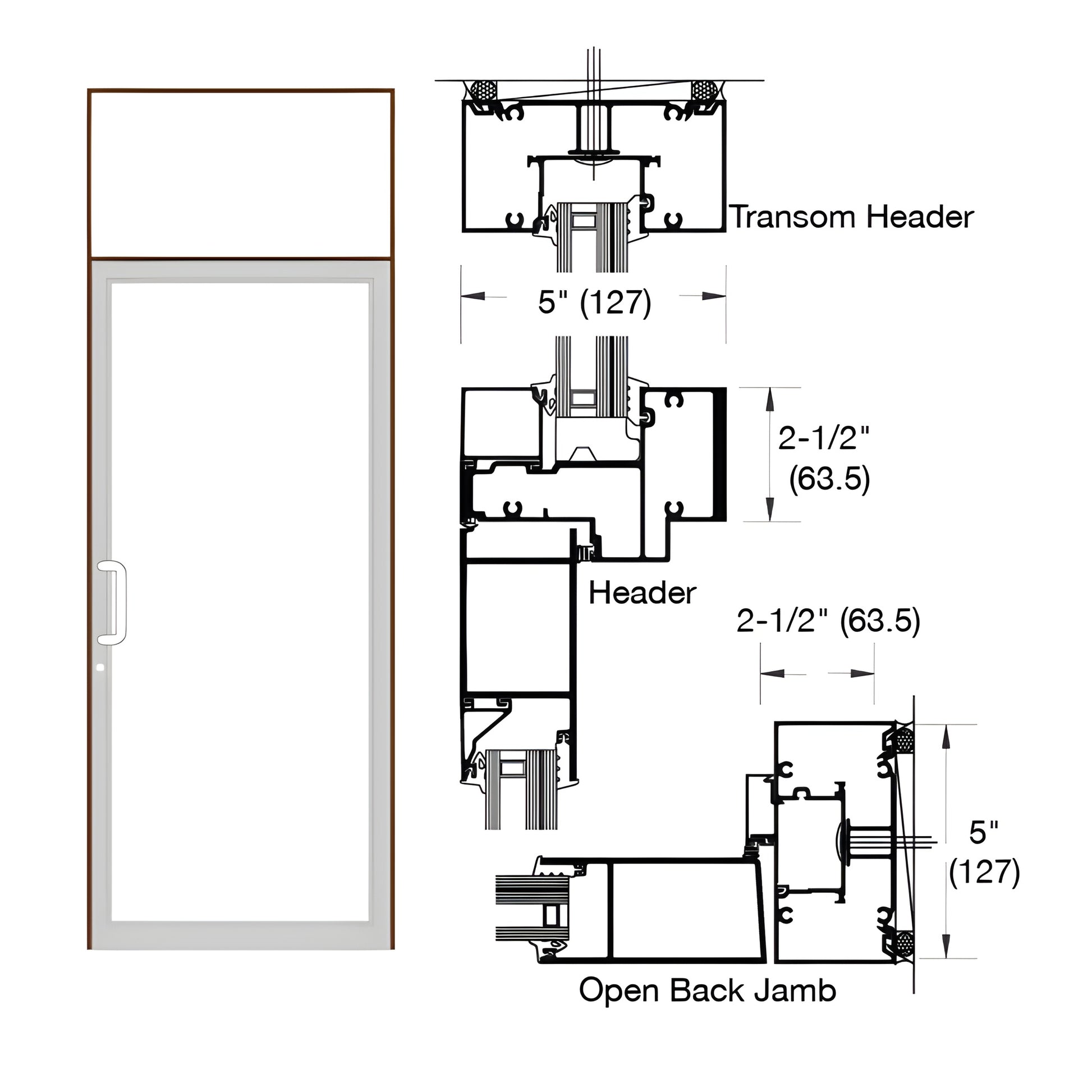

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard flush-bolt / deadbolt strike
  • Includes air resistant threshold (optional air/water resistant threshold available)

This Custom Single Transom Door Frame is engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold for improved wind-driven rain performance. Hardware preparations include provisions for a 1-1/2" pair of butt hinges and a standard deadbolt strike—ideal for coastal and high-wind applications requiring a robust, code-ready hurricane impact door frame. SKU: 0F91522

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Need a quote or technical details for your hurricane impact door project? Contact CRL Customer Service to get assistance and ordering information.
