CRL-U.S. Aluminum IG600 Transom Frame, Dark Bronze/Black Hinge/Closer

• 2-1/2" x 5" (63.5 x 127 mm) transom door frame
• Prep for 1-1/2" pair butt hinges (hinges not included)
• Prep for overhead concealed closer and standard deadbolt strike
• Includes TH811 air resistant threshold
• Optional air/water resistant threshold available
• Warning: When installing hurricane impact products always refer to FPA Guidelines

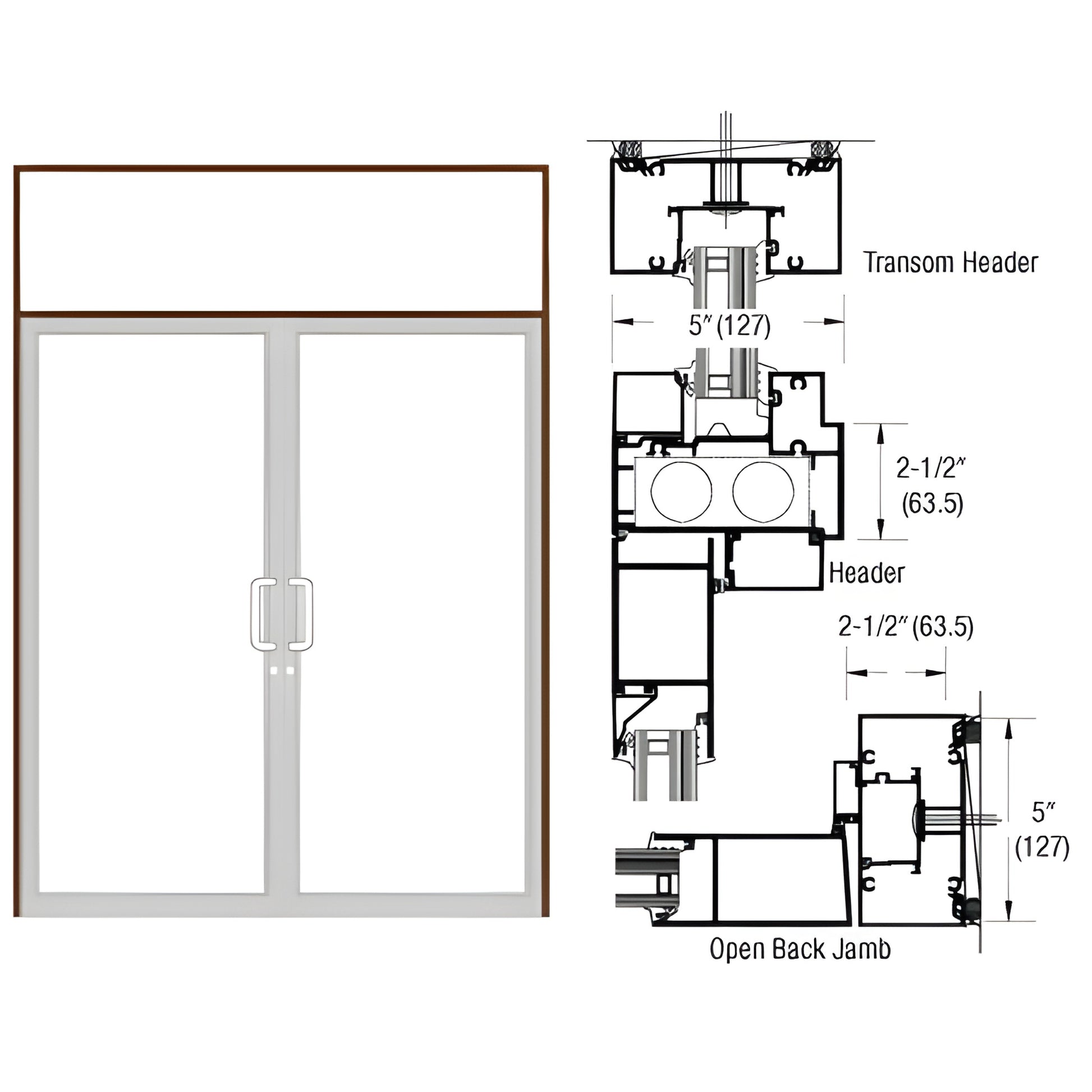

Custom Double Transom Door Frame — SKU: 0F92422. Designed for pair-butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and TH811 air threshold for enhanced air resistance.

Hardware preparations include 1-1/2" pair butt hinge prep, overhead concealed closer prep, and standard deadbolt strike prep. Optional air/water resistant threshold upgrade is available for improved weather performance. Ideal for coastal and high-wind applications requiring hurricane impact-rated transom frames.

Compliance: When installing hurricane impact products, always follow FPA Guidelines and local code requirements.

Order this hurricane-impact rated custom double transom door frame (SKU: 0F92422) or contact CRL for quotes and installation guidance.
