CRL-U.S. Aluminum IG600 White Kynar® Transom Butt-Hinge Door Frame
CRL-U.S. Aluminum IG600 White Kynar® Transom Butt-Hinge Door Frame
Regular price
$2,282.25 CAD
Regular price
Sale price
$2,282.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P91552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

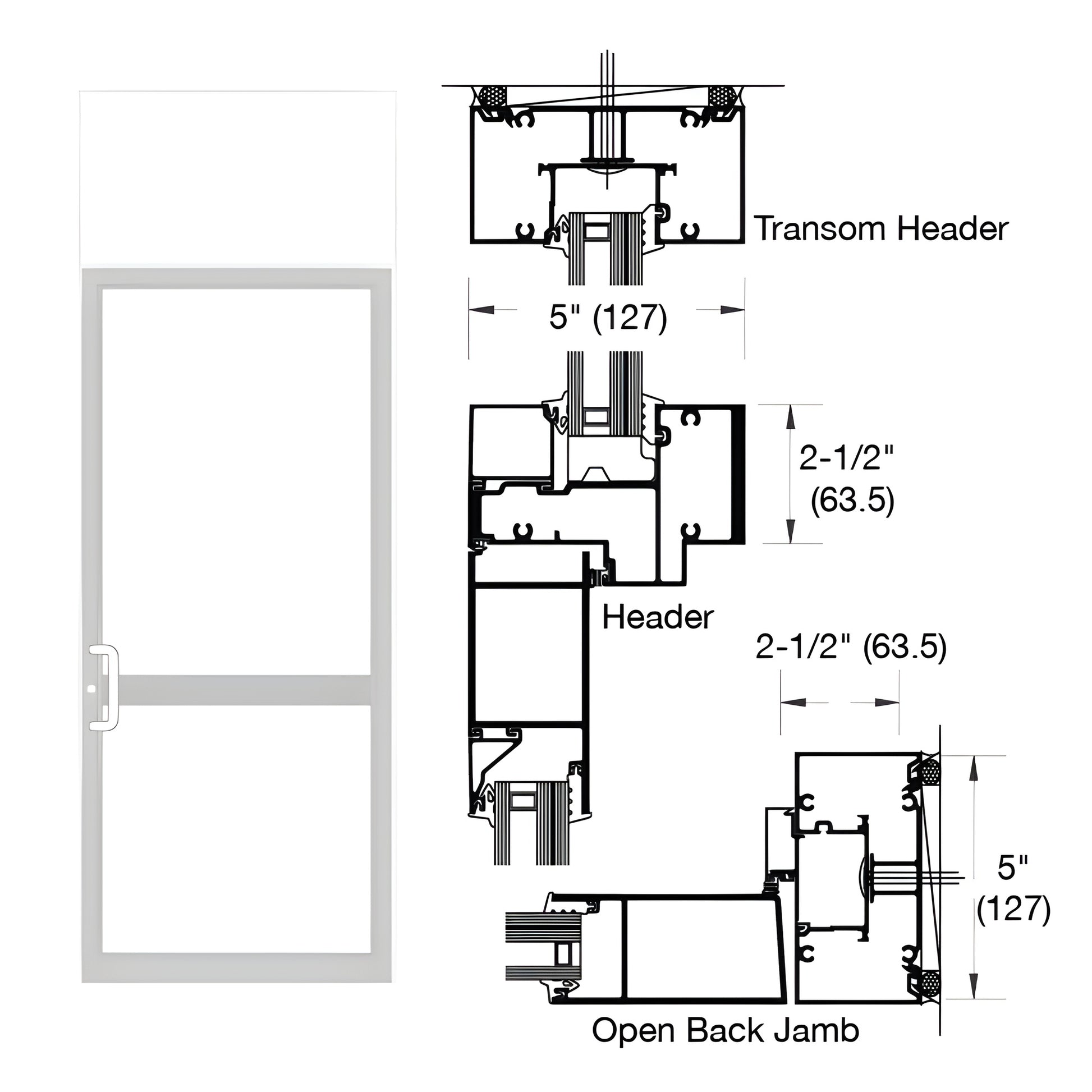

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame
- Prepped for 1-1/2 pair of butt hinges (not included)
- Prepped for CVR panic strike
- Includes air resistant threshold
- Optional air/water resistant threshold available
Custom Single Transom Door Frame engineered for a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold. Hardware preparations include 1-1/2 pair of butt hinges and a standard CVR panic strike. Ideal for coastal and hurricane-prone applications where air-resistant thresholds and impact-rated frames are required.
When installing hurricane impact products, always refer to FPA guidelines.
SKU: 0P91552 — Contact CRL to order or request exact shipping weight and lead time.
Specifications
Quote Request Forms
