CRL-U.S. Aluminum IG600 White Kynar® Transom Butt Hinge, 2-Door
CRL-U.S. Aluminum IG600 White Kynar® Transom Butt Hinge, 2-Door
Regular price
$3,089.40 CAD
Regular price
Sale price
$3,089.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P92552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

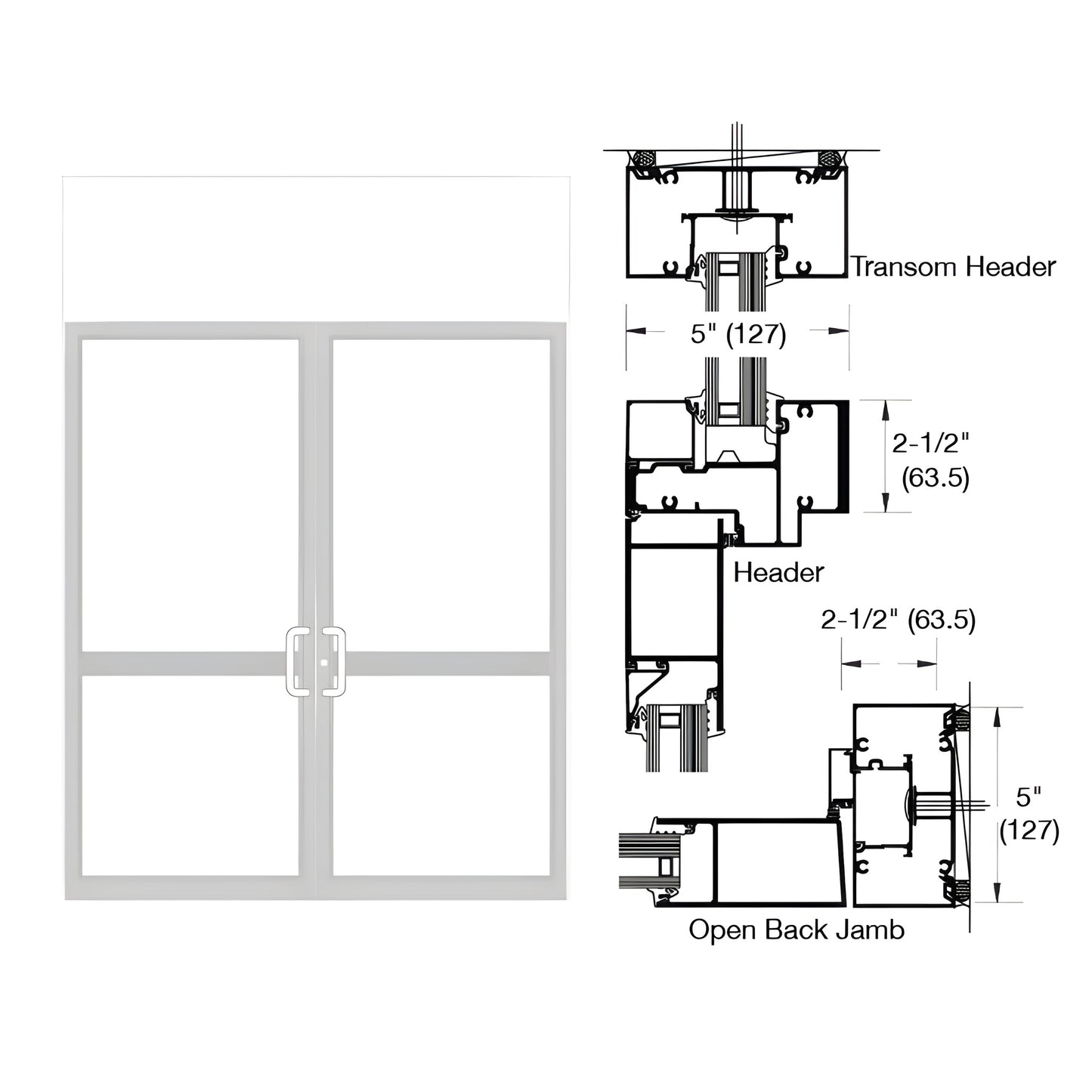

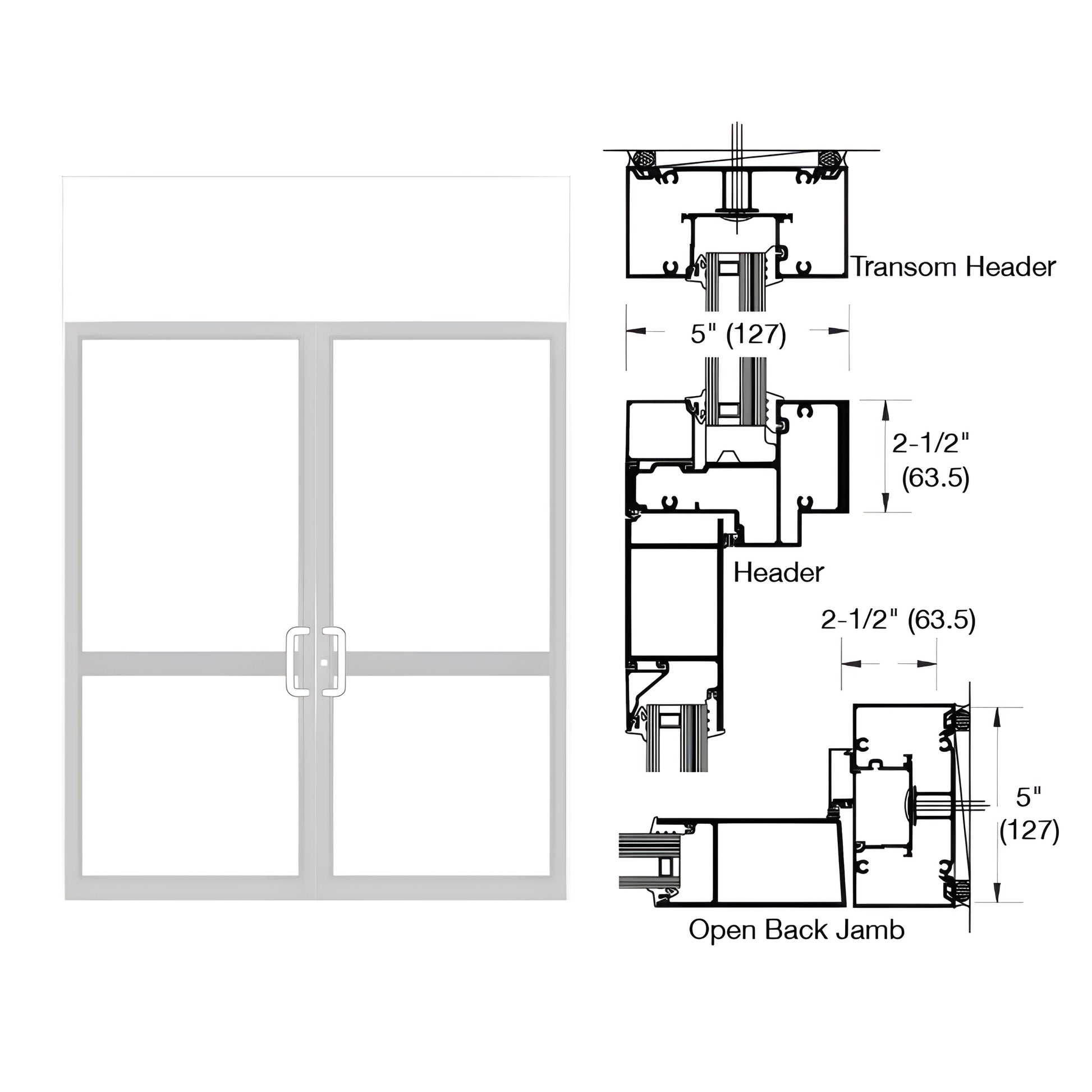

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame (SKU: 0P92552)
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for CVR panic strike
- Includes air resistant threshold; optional air/water resistant threshold available
This Custom Double Transom Door Frame is engineered for pairs of butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 door jambs, IG667 header with seal IG663, IG626 transom header, and TH811 air threshold. Hardware preparations include provisions for a 1-1/2" pair of butt hinges and a standard CVR panic strike—ideal for commercial and coastal hurricane impact installations where air-resistant performance and code-ready prep matter.
When installing hurricane impact products, always refer to FPA Guidelines.
Contact CRL Customer Service to confirm specifications, shipping weight, and to place your order.
Specifications
