CRL-U.S. Aluminum IG600 Transom Frame Kynar - For Butt Hinge & Closer
CRL-U.S. Aluminum IG600 Transom Frame Kynar - For Butt Hinge & Closer
Regular price
$2,738.00 CAD
Regular price
Sale price
$2,738.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F91452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 2-1/2" x 5" (63.5 x 127 mm) transom door frame
- Prepped for 1-1/2" pair butt hinges (hinges not included)
- Prepped for overhead concealed closer and standard deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available

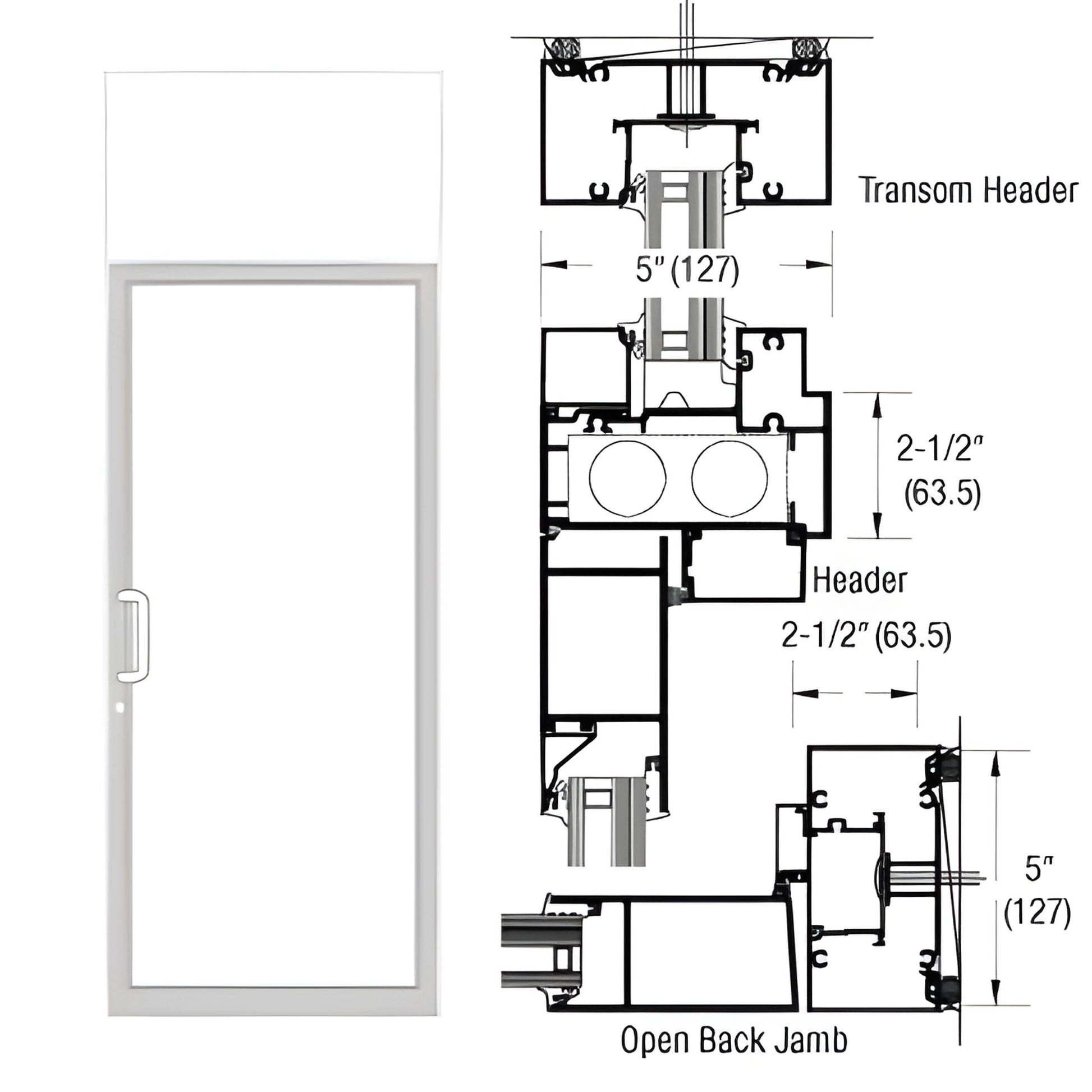

This Custom Single Transom Door Frame is engineered to accept a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Frame components include IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and the TH811 air threshold. Hardware preparations support a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard deadbolt strike — ideal for high-performance, hurricane impact door installations.
For safety and compliance, always refer to FPA Guidelines when installing hurricane impact products.
SKU: 0F91452
Order this custom transom door frame for hurricane impact doors — contact CRL to request a quote or confirm exact shipping weight.
