CRL-U.S. Aluminum IG600 Kynar® Transom Butt Hinge & Overhead Closer
CRL-U.S. Aluminum IG600 Kynar® Transom Butt Hinge & Overhead Closer
Regular price
$3,531.23 CAD
Regular price
Sale price
$3,531.23 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F92452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Prep for 1-1/2" pair butt hinges (hinges not included)
- Prep for overhead concealed closer and standard deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
- Designed for use with 1-5/16" (33 mm) laminated impact glazing
- Warning: When installing hurricane impact products always refer to FPA Guidelines

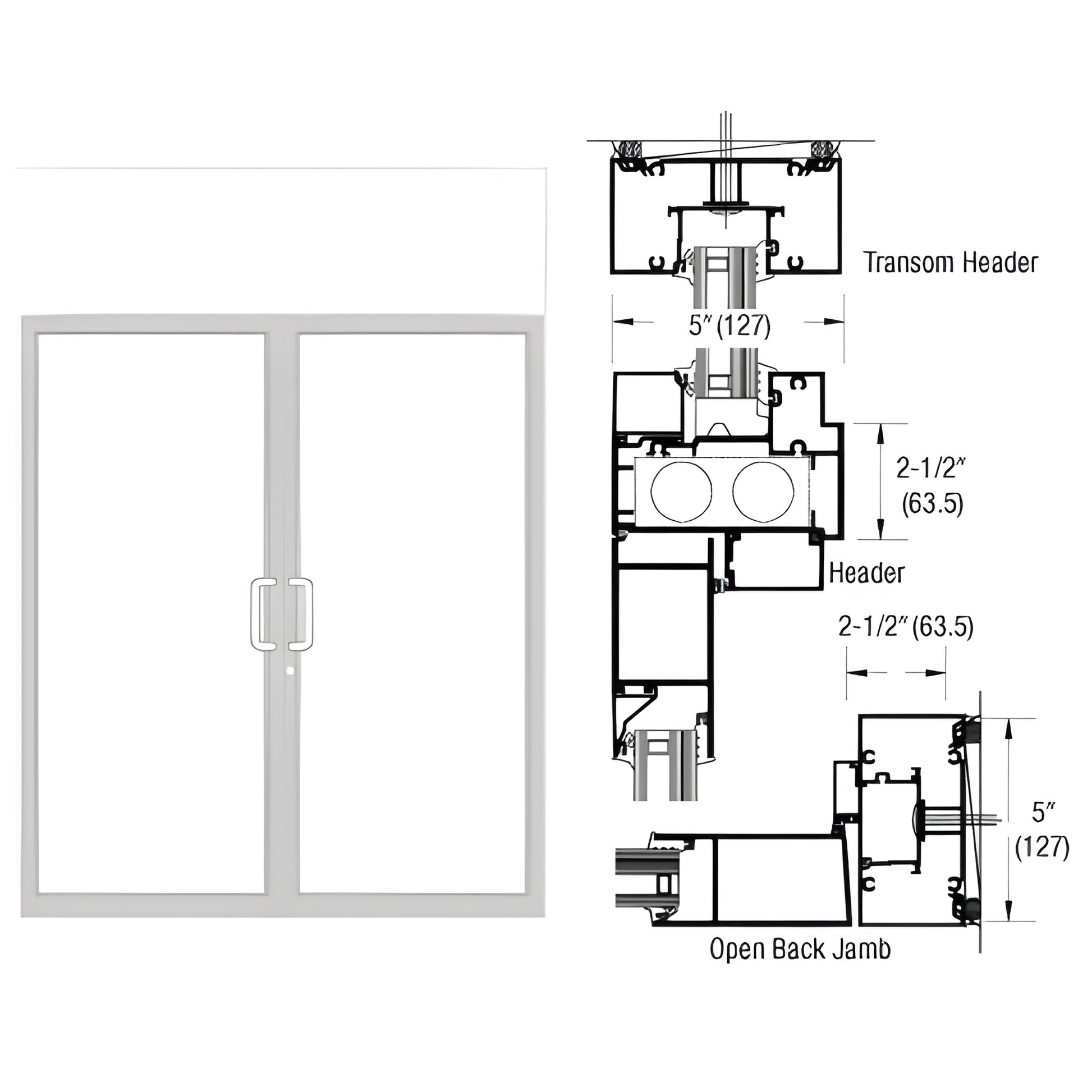

This Custom Double Transom Door Frame (SKU: 0F92452) is engineered for hurricane impact applications and built to accommodate a pair-butt-hinged door using laminated impact glazing. Frame components: IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and TH811 air threshold. Hardware preparations include provisions for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard deadbolt strike. This product is ideal for coastal and high-wind locations requiring impact-rated transom door solutions.
When installing hurricane impact products always refer to FPA Guidelines.
Order this hurricane impact custom double transom door frame (SKU: 0F92452) or contact CRL for a quote and installation guidance.
