CRL-U.S. Aluminum IG600 White KYNAR Transom Frame for Panic Hardware

CRL-U.S. Aluminum IG600 White KYNAR Transom Frame for Panic Hardware

$2,717.15 CAD
$2,717.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P91452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) up/over door frame
  • Prep for 1-1/2" pair butt hinges (hinges not included)
  • Prep for overhead concealed closer and standard CVR panic strike
  • Includes TH811 air-resistant threshold
  • Optional air/water-resistant threshold available

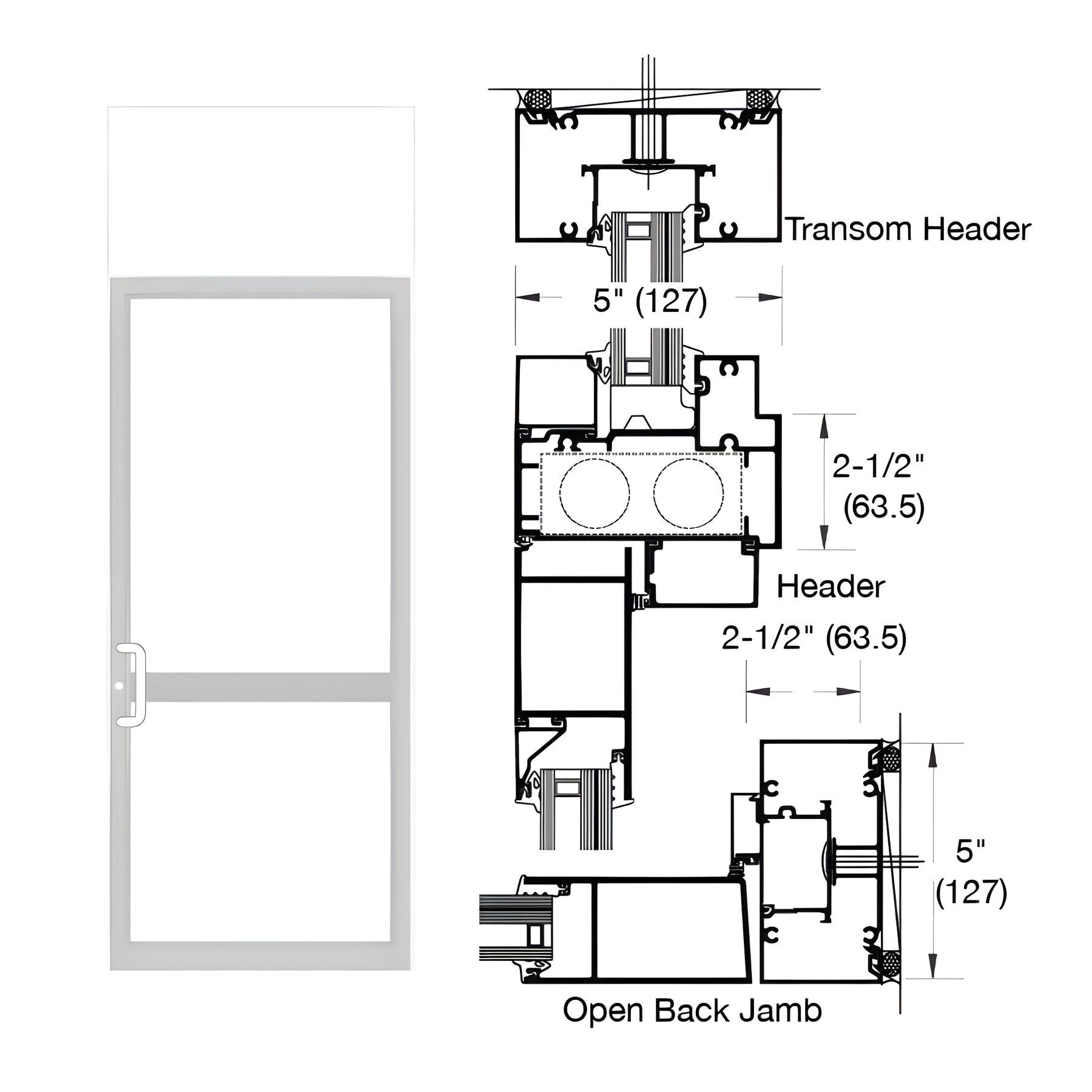

This Custom Single Transom Door Frame (SKU: 0P91452) is engineered for hurricane impact door applications and built to accept a single butt-hinged impact door with 1-5/16" (33 mm) laminated impact glazing. Frame components: IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG147/IG146 transom header, and TH811 air threshold. Hardware preparations include 1-1/2" pair butt hinges, overhead concealed closer, and standard CVR panic strike—ideal for coastal and high-wind installations requiring certified hurricane impact door frames and air-resistant thresholds.

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order or request a quote for SKU 0P91452 today.
