CRL-U.S. Aluminum IG600 White Kynar Transom Frame for Panic Bar
CRL-U.S. Aluminum IG600 White Kynar Transom Frame for Panic Bar
Regular price
$3,524.27 CAD
Regular price
Sale price
$3,524.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P92452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

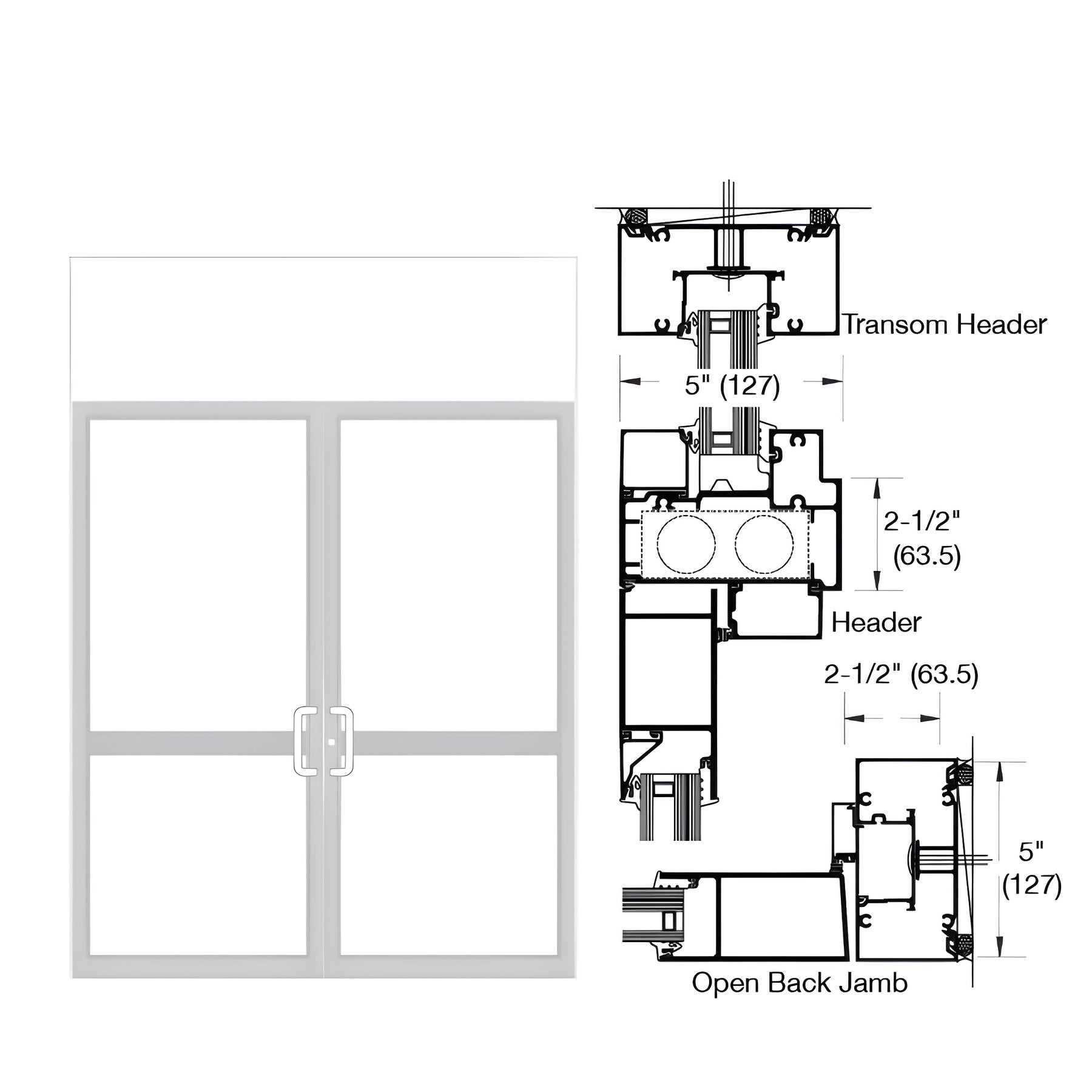

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over door frame
- Prep for 1-1/2" pair butt hinges (hinges not included)
- Prep for overhead concealed closer and standard CVR panic strike
- Includes TH811 air resistant threshold
- Optional air/water resistant threshold available
This Custom Double Transom Door Frame is engineered for pair butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG147/IG146 door jambs, IG677/IG200/IG663 header, IG626/IG146/IG147 transom header, and TH811 air threshold, the frame provides hardware preparations for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard CVR panic strike—ideal for commercial and coastal hurricane-impact installations.
Always follow FPA guidelines when installing hurricane impact products.
SKU: 0P92452 — Order this custom double transom hurricane impact door frame or contact CRL for a quote and configuration assistance.
