Product Details
- Prepped for Standard Deadbolt Strike
- Includes Air Resistant Threshold
- Optional Air/Water Resistant Threshold
- 2-1/2" x 5" (63.5 x 127 mm) Butt Hinged Impact Door Frame
- Prepped for 1-1/2 Pair of Butt Hinges (Not Included)

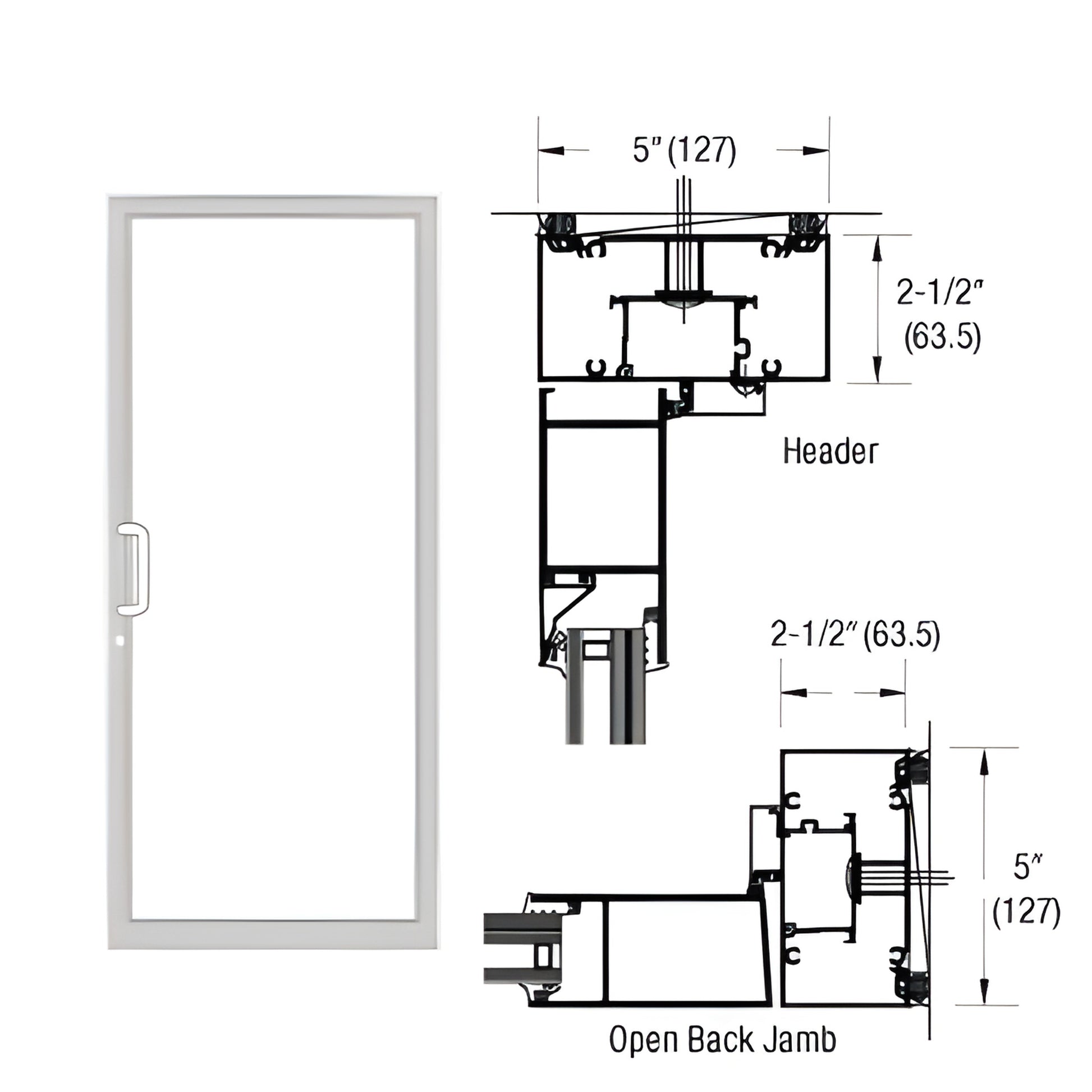

This Custom Single Up/Over Door Frame is built to accommodate a single butt hinged hurricane impact door for using 1-5/16" (33 mm) laminated impact glazing, surface mount closer, constructed using IG626/IG146/IG147 door jambs, IG668 with seal IG146/IG147 header, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, standard deadbolt strike.
When installing hurricane impact product always refer to FPA Guidelines.
