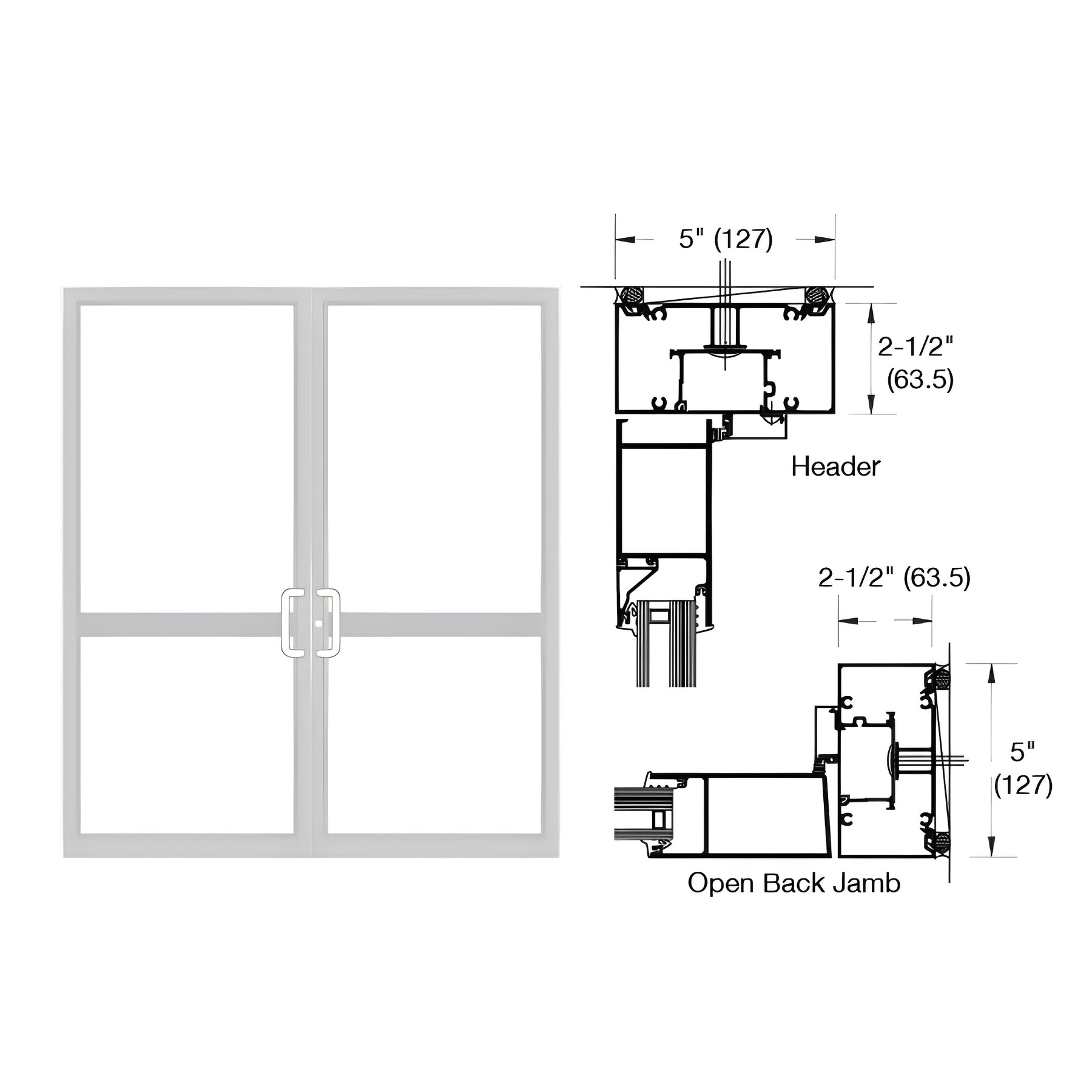

• White Kynar custom double up/over hurricane impact door frame SKU 0P72552 with TH811 threshold and technical drawing
1 1

CRL

CRL-U.S. Aluminum IG600 Custom White KYNAR® Butt-Hinge Door Frame

CRL-U.S. Aluminum IG600 Custom White KYNAR® Butt-Hinge Door Frame

$2,105.99 CAD
$2,105.99 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P72552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact up/over door frame — designed for hurricane impact doors
  • Prepped for 1-1/2" pair of butt hinges (hinges not included)
  • Prepped for CVR panic strike (standard panic strike prep)
  • Includes TH811 air-resistant threshold; optional air/water-resistant threshold available

This Custom Double Up/Over Door Frame (SKU: 0P72552) is engineered to accept a pair of butt-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing. Constructed with IG626/IG146/IG147 jambs and header and fitted with a TH811 air threshold, it supports surface-mount closers and standard hardware preparations. Designed for coastal and high-wind applications, this frame emphasizes impact resistance and weather performance.

When installing hurricane impact products, always refer to FPA guidelines and local code requirements.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.


Need a quote or technical details for installation? Contact CRL Customer Service to proceed.
