CRL-U.S. Aluminum IG600 White KYNAR® Up/Over Door Frame w/ Geared Hinge, CVR Strike & Surface Closer

CRL-U.S. Aluminum IG600 White KYNAR® Up/Over Door Frame w/ Geared Hinge, CVR Strike & Surface Closer

$2,540.86 CAD
$2,540.86 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P72852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Prepped for Standard CVR Strike
  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold

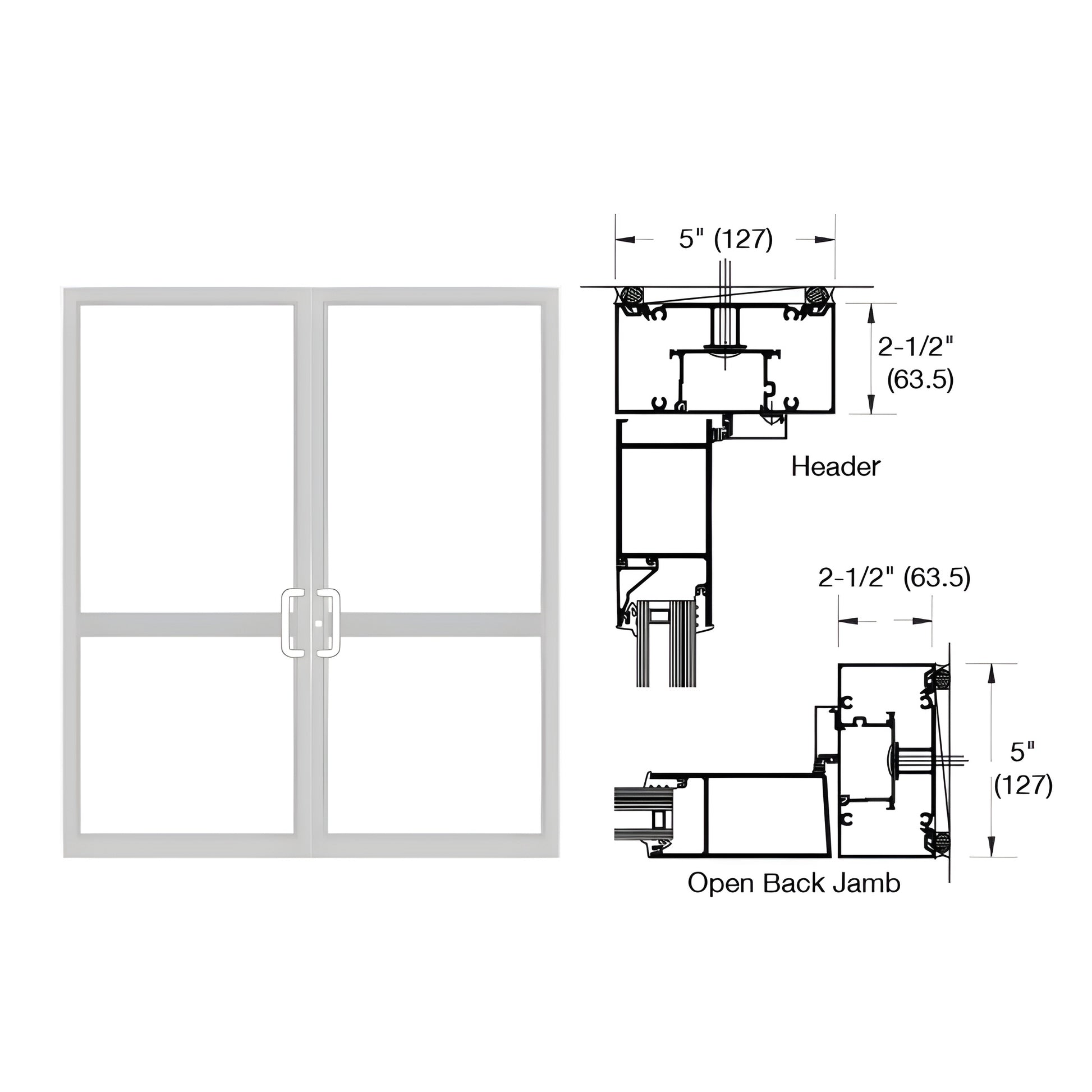

  • 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame for Surface Closer (Geared Hinge Not Included)

This Custom Up/Over Door Frame is engineered for hurricane impact door installations and built to accept a pair of geared-hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing for a surface-mount closer. Constructed from IG626 door jambs, IG147/IG146 door stops, IG626/IG100 header, and TH811 air threshold. Hardware preparations include geared hinge locations and a standard CVR strike—ideal for commercial hurricane impact door frame applications and geared hinged transom impact door projects.

When installing hurricane impact products always refer to FPA Guidelines.

SKU: 0P72852

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Contact CRL Customer Service to request a quote or confirm shipping and exact specifications.
