CRL
Aluminum Door Frame CRL-U.S. IG600 White KYNAR Custom Up/Over
Item# 0F71852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar

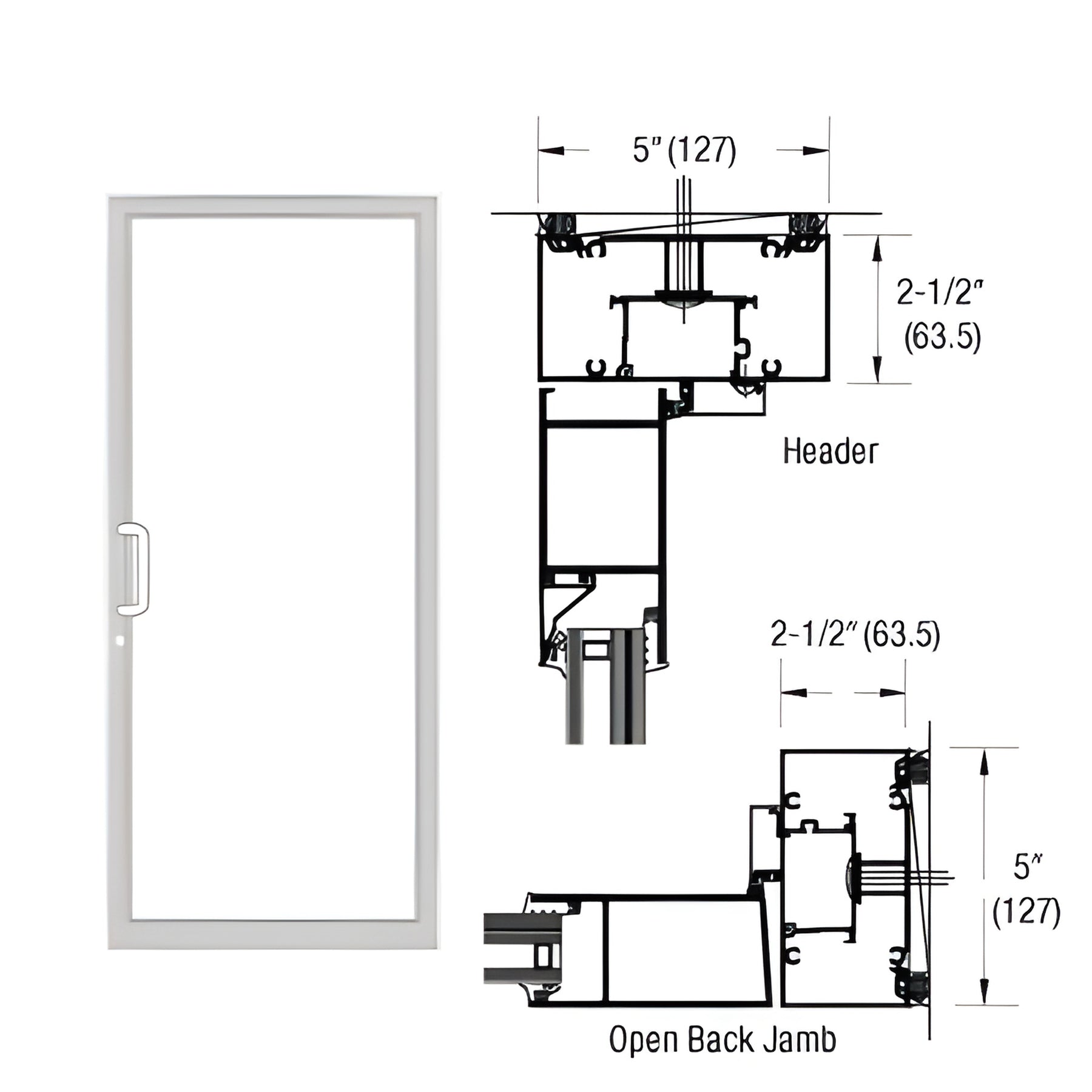

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged up/over hurricane impact door frame for surface mount closer
- Prepped for standard deadbolt strike
- Includes air resistant threshold (TH811)
- Optional air/water resistant threshold available
This Custom Up/Over Door Frame (SKU: 0F71852) is engineered for a single geared hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing and a surface mount closer. Constructed with IG626 door jambs, IG626/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware preparations include geared hinges and a standard deadbolt strike—designed for hurricane impact resistance and reliable surface-closer operation.
When installing hurricane impact products, always refer to FPA Guidelines.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Order the 0F71852 custom geared hinged hurricane impact door frame today.
