CRL-U.S. Aluminum IG600 Series White KYNAR® Paint Custom Up/Over Door Frames for Geared Hinged, CVR Panic Strike, and Overhead Concealed Closers

Product Details

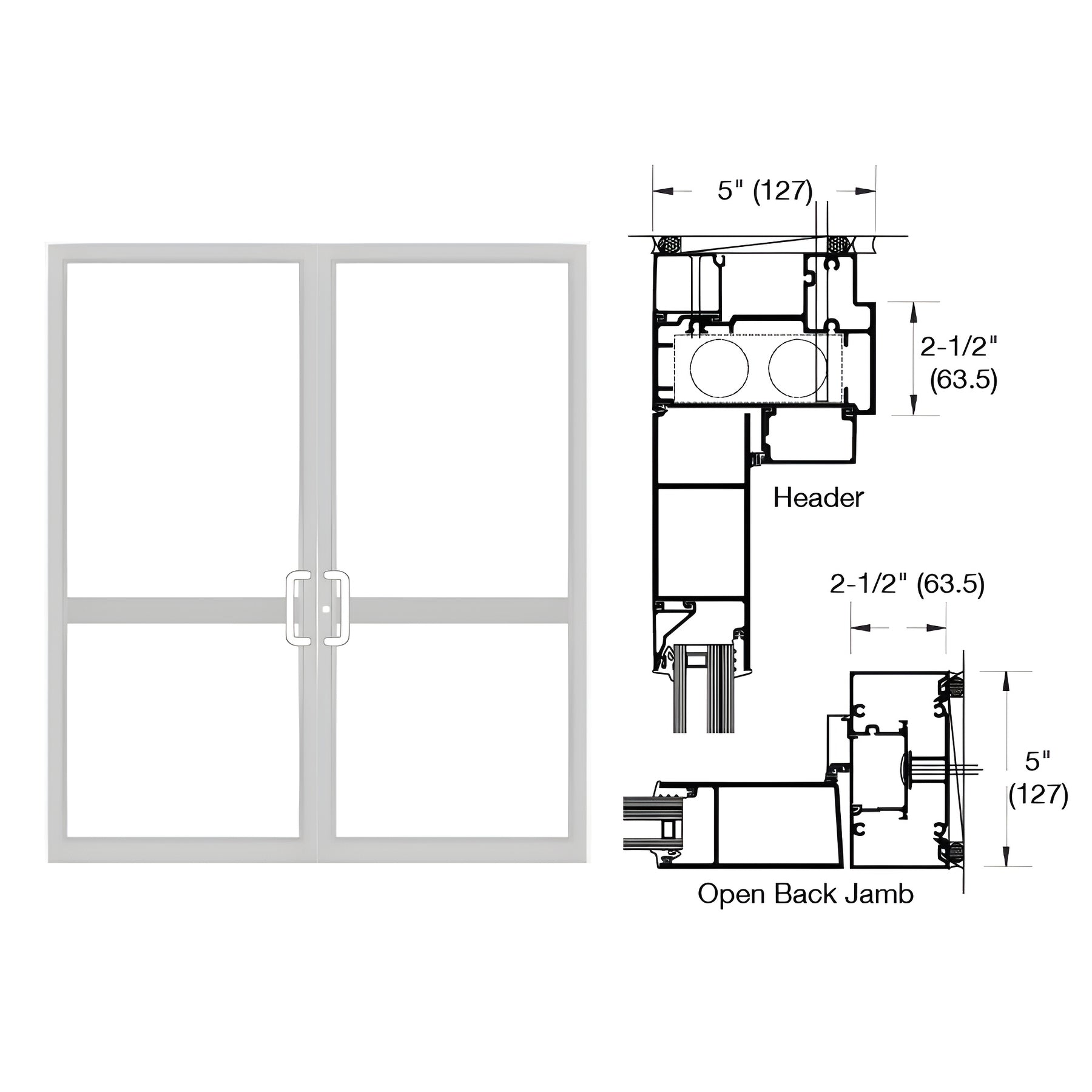

• 2-1/2' x 5" (63.5 x 127 mm) Up/Over Door Frame
• Includes Prep for Overhead Concealed Closer and CVR Panic Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Up/Over Door Frame is built to accommodate a pair geared hinged hurricane impact doors using 1-5/16" (33 mm) laminated impact glazing, constructed using IG626/IG147/IG146 door jambs, IG667/IG663/IG200 with NP803 and NP801 gaskets header for overhead concealed closer, and TH811 air threshold, hardware preparations include overhead concealed closer, standard CVR panic strike.

When installing hurricane impact product always refer to FPA Guidelines.
