CRL-U.S. Aluminum IT451 Clear Anodized Custom Up-and-Over Pivot Frame

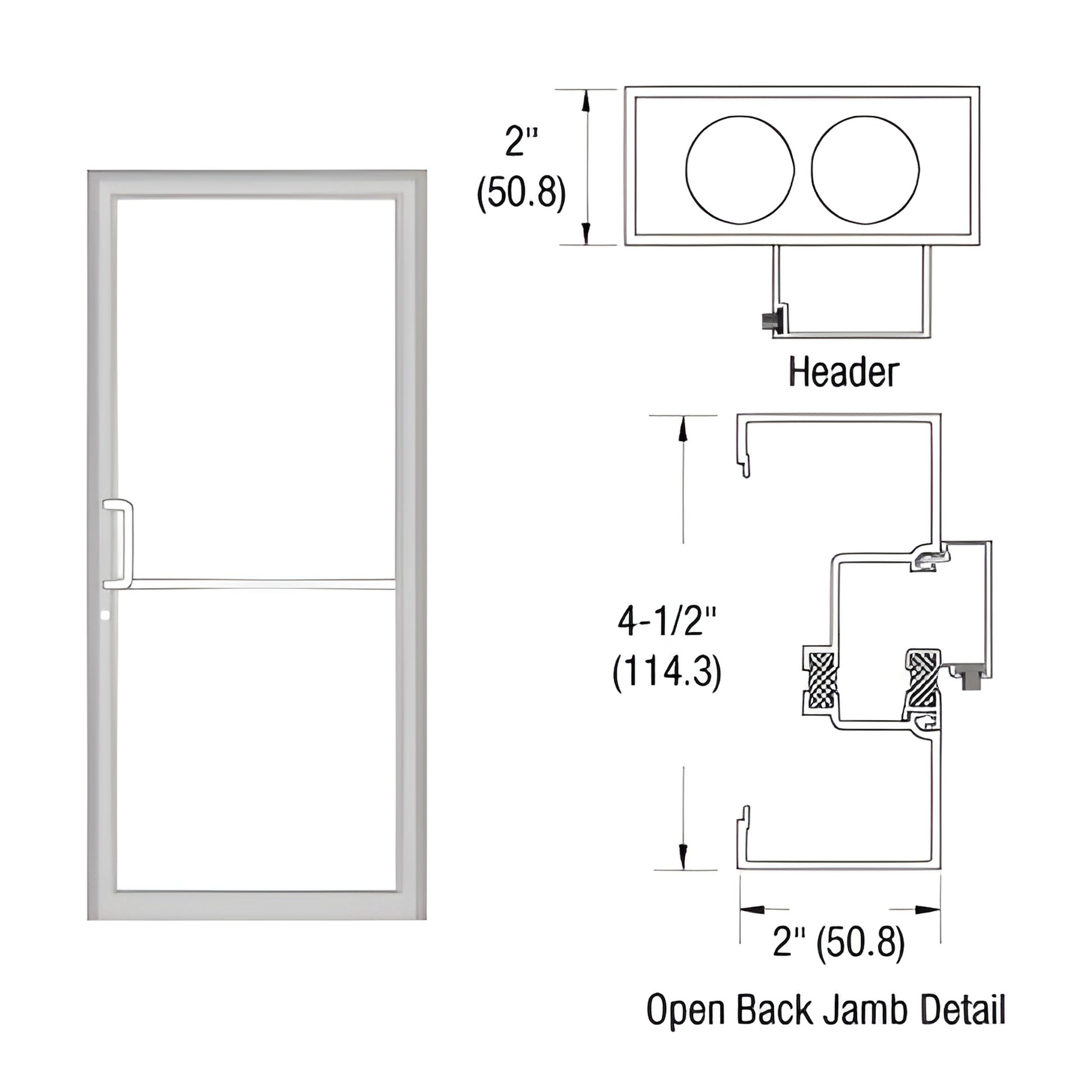

• 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up-and-Over Frame with Open Back Jambs — ideal for offset pivot doors and commercial storefront applications
• Aluminum threshold included for a durable weather-resistant sill
• Custom size frame options available for non-standard openings

Complete Frame built to accommodate a base 36" x 84" Offset Pivot 2-1/4" door with a 105° overhead concealed closer and offset arm. Constructed using 1T455 open back jambs and a 1450 header. Includes DT058 door stops for 2-1/4" doors, weatherstrip, standard hardware, and hardware preparations for fast, accurate installation.

All fasteners, standard hardware, and hardware fabrication required for frame assembly are included; customer provides fasteners to attach frame to opening. Note: frame widths under 40" (1.0 m) may not meet A.D.A. inspection requirements.

SKU: TB71111 — Offset pivot frame with concealed closer, aluminum threshold, and custom sizing options.

Order SKU TB71111 today for a ready-to-install offset pivot frame with concealed closer and aluminum threshold.
