CRL-U.S. Aluminum IT451 Clear Anodized Offset Pivot Up-and-Over Frame
CRL-U.S. Aluminum IT451 Clear Anodized Offset Pivot Up-and-Over Frame
Regular price
$1,870.08 CAD
Regular price
Sale price
$1,870.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TB71211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

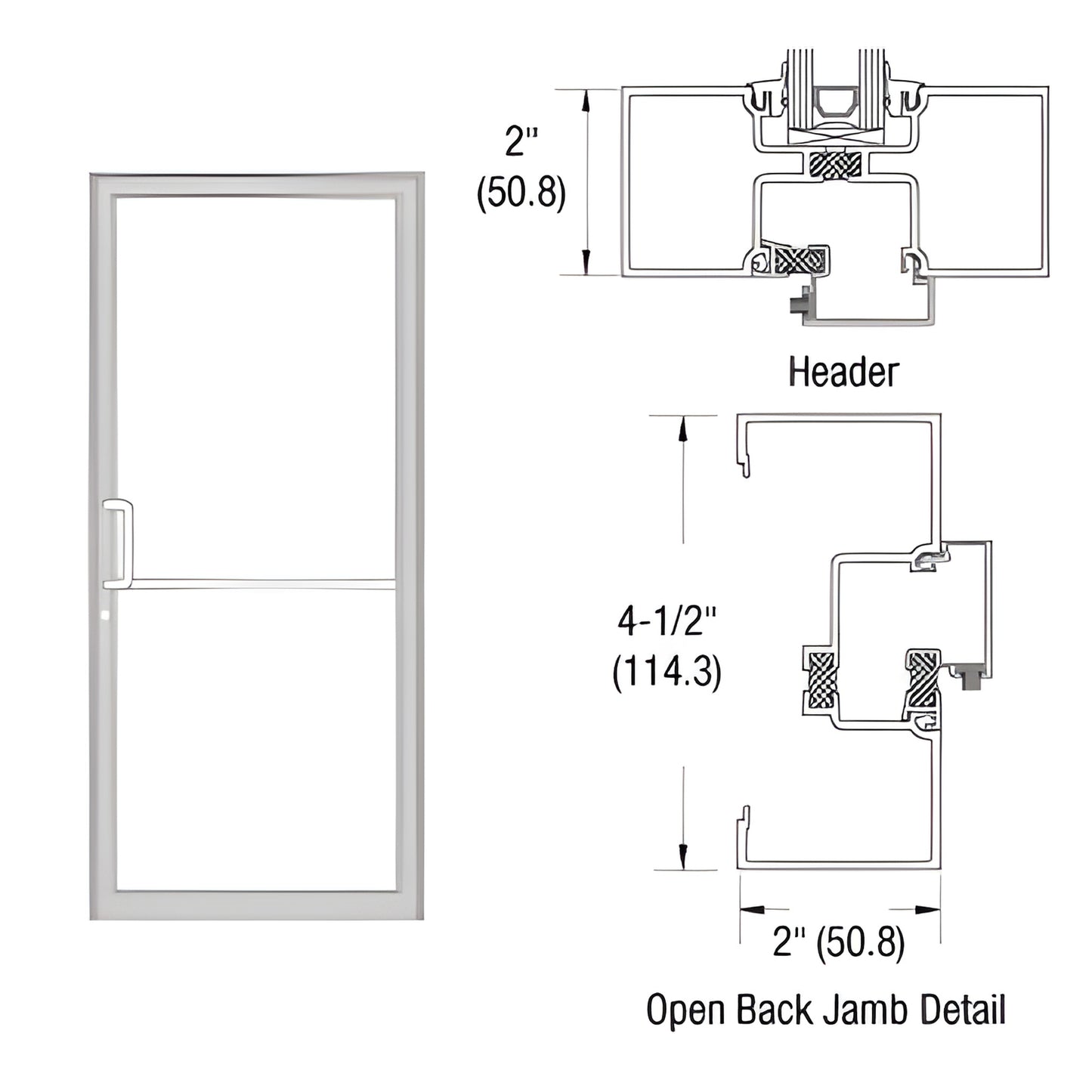

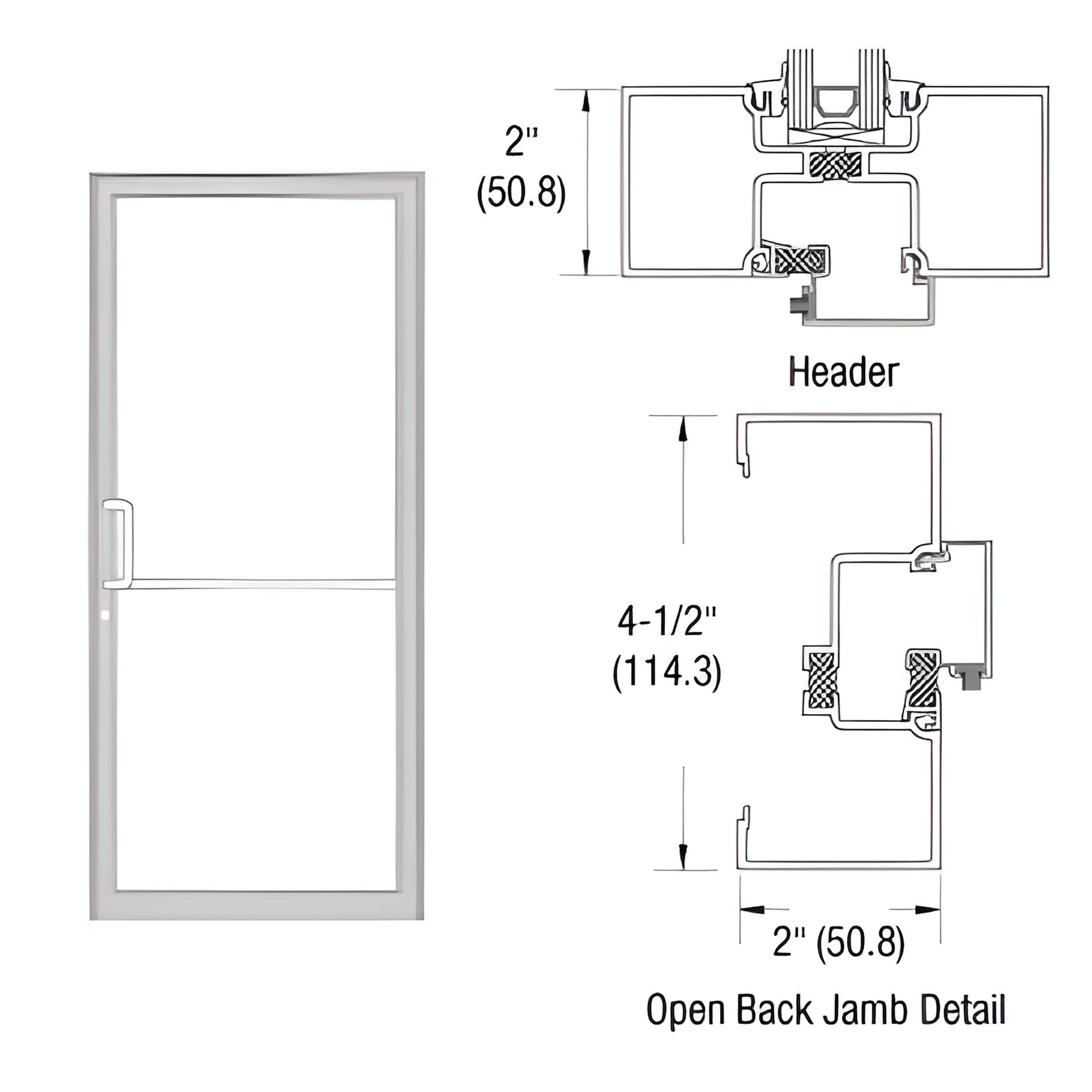

- 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up-and-Over Frame with Open Back Jambs — ideal for offset pivot door installations
- Custom size available — built to order for non-standard openings
- Aluminum threshold included for durable bottom seal and smooth operation
Complete Frame (SKU: TB71211) is built to accommodate a base 36" x 84" Offset Pivot 2-1/4" door with provisions for a surface mount closer. Constructed using 1T455 open back jambs and a 1T422 header. DT058 door stops for 2-1/4" doors, weatherstrip, standard hardware, and hardware preparations are included to simplify installation.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection—consult local code for compliance.
Looking for a custom offset pivot door frame with aluminum threshold? Contact CRL Customer Service for quotes, lead times, and ADA guidance.
