CRL-U.S. Aluminum IT451 Custom KYNAR® Up-and-Over Pivot Frame
CRL-U.S. Aluminum IT451 Custom KYNAR® Up-and-Over Pivot Frame
Regular price
$2,025.50 CAD
Regular price
Sale price
$2,025.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TB71271
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

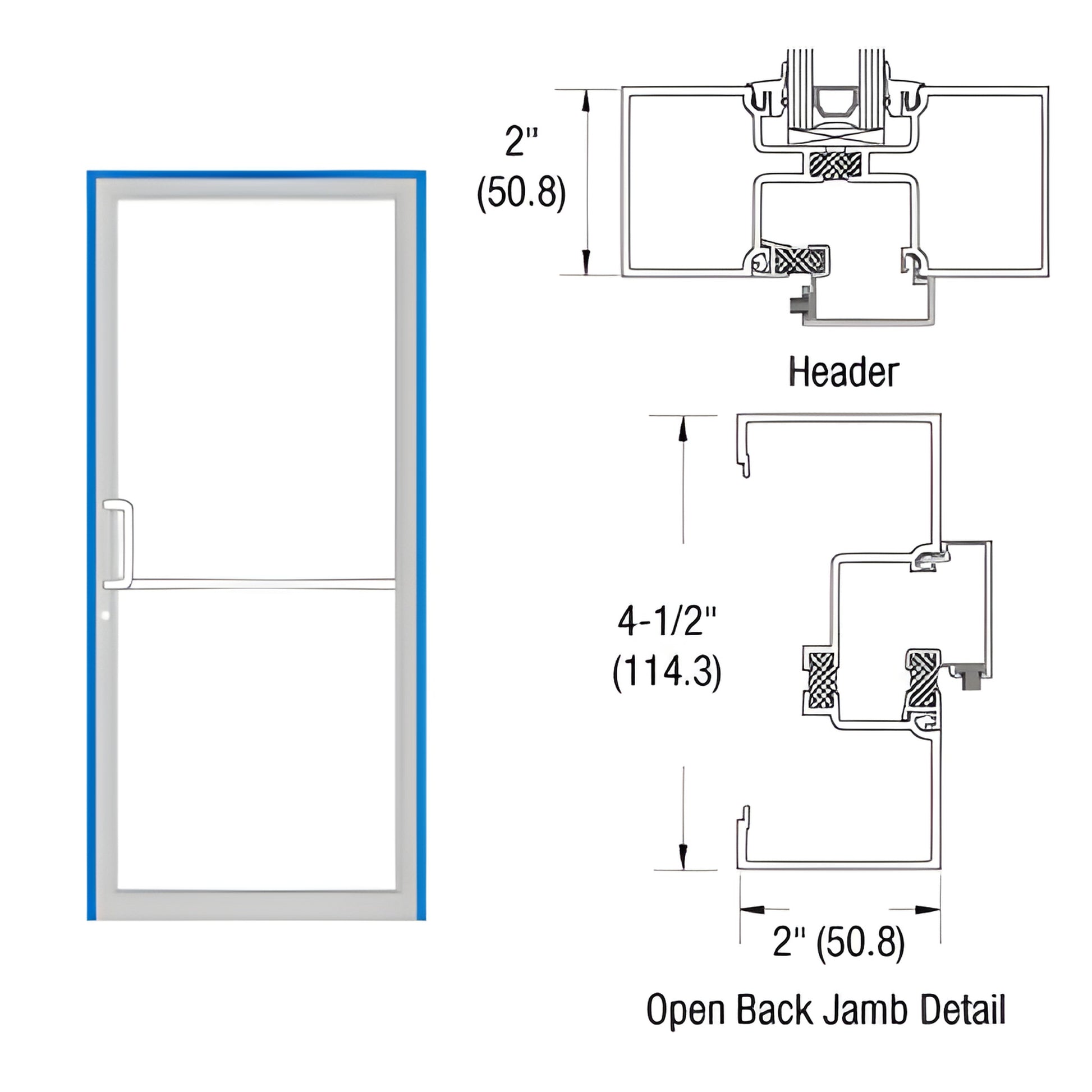

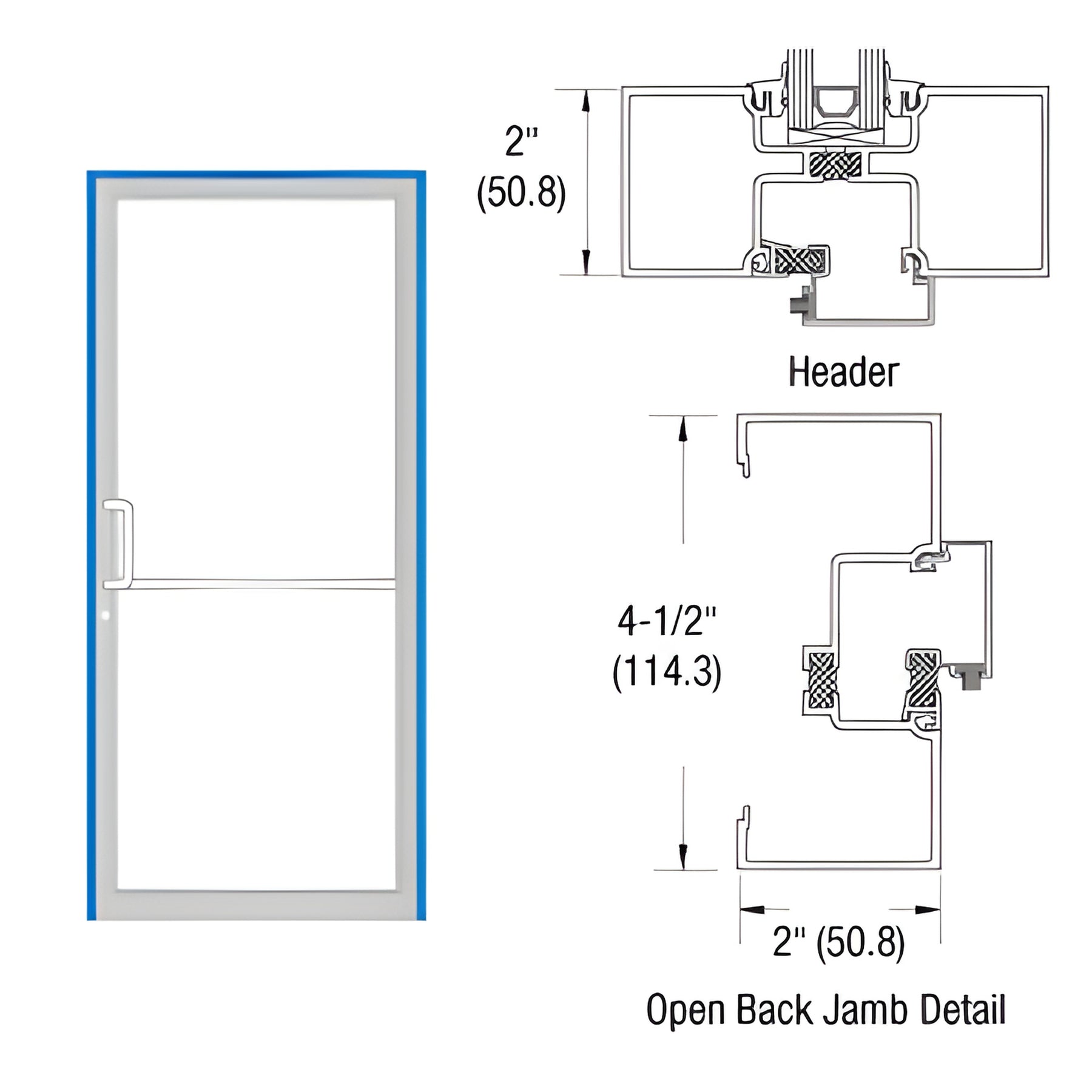

- 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up-and-Over Frame with Open Back Jambs — ideal for commercial offset pivot doors
- Aluminum threshold included for durable, low-maintenance entry
- Custom size frame available (built to order)
Complete Frame is built to accommodate a base 36" x 84" Offset Pivot 2-1/4" door configured for a surface mount closer. Constructed with 1T455 open back jambs and a 1T422 header, the frame includes DT058 door stops for a 2-1/4" door, weatherstrip, standard hardware, and hardware preparations.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; the customer supplies fasteners to attach the frame to the opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection.
SKU: TB71271 — Order this custom offset pivot frame or contact us for lead time and build options.
