CRL-U.S. Aluminum IT451 Kynar® Offset Pivot Up-Over Window Frame (1F)
CRL-U.S. Aluminum IT451 Kynar® Offset Pivot Up-Over Window Frame (1F)
Regular price
$2,202.46 CAD
Regular price
Sale price
$2,202.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TB71171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

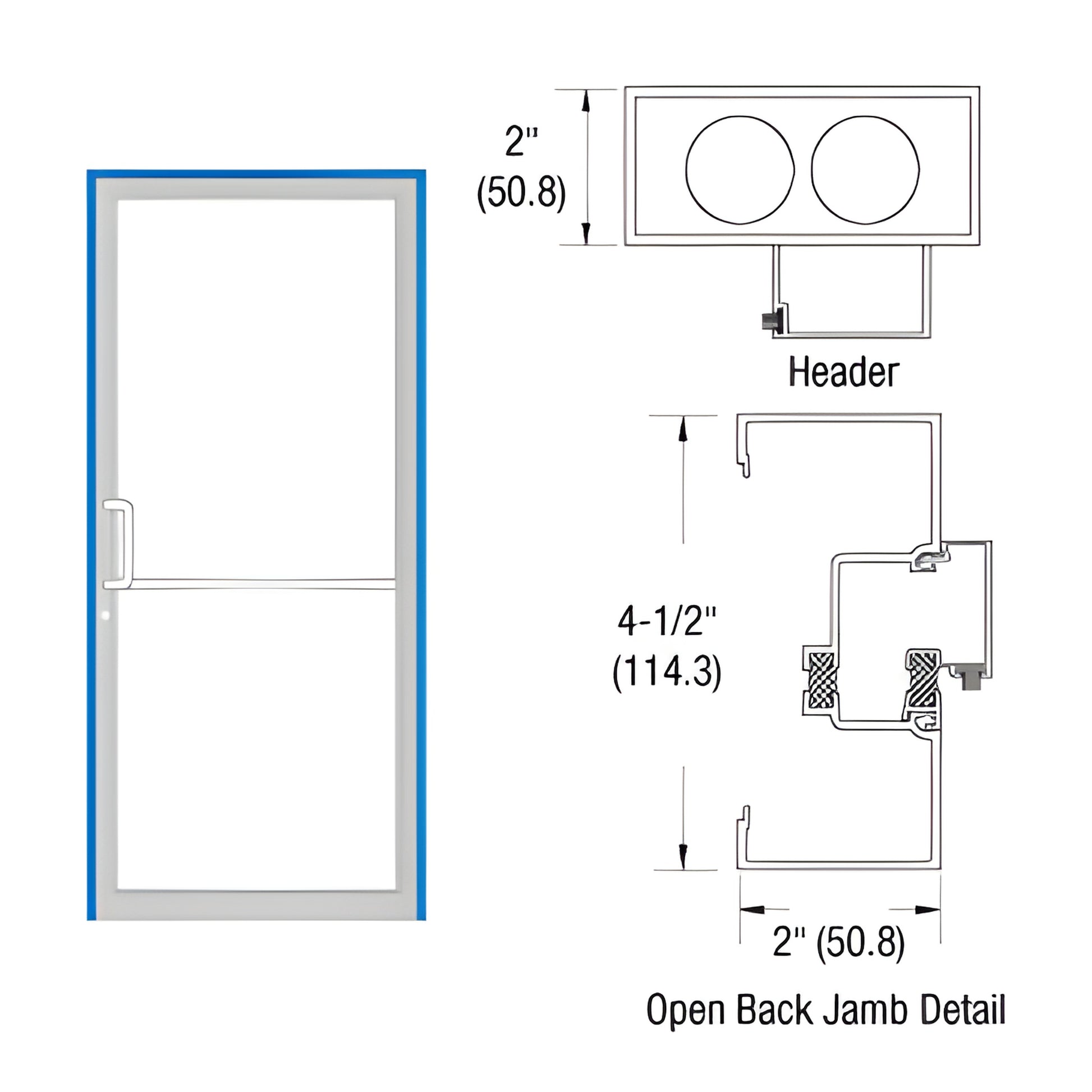

- 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up-and-Over Frame with Open Back Jambs
- Custom Size
- Aluminum threshold included
Complete Frame built to accept a 36" x 84" Offset Pivot 2-1/4" door (base) and a 105° overhead concealed closer with offset arm. Constructed with 1T455 open back jambs and a 1450 header. Includes DT058 door stops for 2-1/4" doors, weatherstrip, standard hardware, and hardware preparations. All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths under 40" (1.0 m) may not pass A.D.A. inspection.
Key differentiators: purpose-built offset pivot up-and-over frame, integrated aluminum threshold, open back jamb design (1T455) for easy hardware access, and included DT058 stops and weatherstrip — ideal for custom commercial entry solutions.
SKU: TB71171
Ready to order or need a custom quote? Contact CRL Customer Service for pricing and lead times.
