CRL-U.S. Aluminum IT451 Offset Pivot Up-and-Over Frame, Dark Bronze

CRL-U.S. Aluminum IT451 Offset Pivot Up-and-Over Frame, Dark Bronze

$1,928.99 CAD
$1,928.99 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# TB71222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

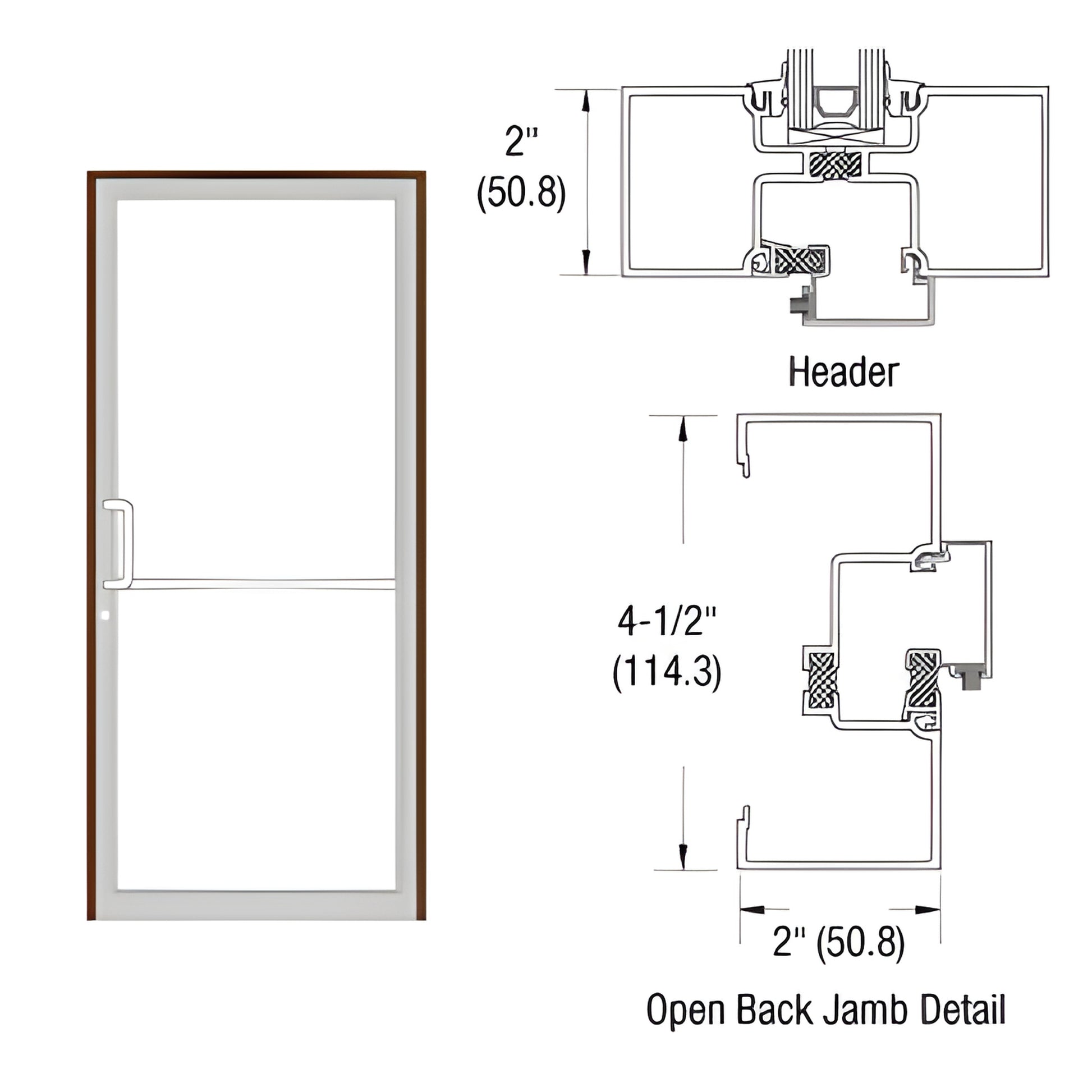

  • 2" x 4-1/2" (50.8 x 114.3 mm) Offset Pivot Up and Over Frame with Open Back Jambs — ideal for offset pivot door installations (SKU: TB71222)
  • Custom Size — made-to-order offset pivot door frame to fit non‑standard openings
  • Aluminum Threshold Included — durable threshold for weather protection and smooth operation

Complete Frame is built for a base 36" x 84" Offset Pivot 2-1/4" door with Surface Mount Closer. Constructed using 1T455 Open Back Jambs and 1T422 Header, the assembly includes DT058 door stops for 2-1/4" doors, weatherstrip, standard hardware, and hardware preparations for easy installation.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths under 40" (1.0 m) may not pass A.D.A. inspection. This offset pivot door frame is optimized for commercial and residential retrofit projects where a compact pivot solution is required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.


Order SKU TB71222 or contact CRL for custom sizing and lead times.
