CRL-U.S. Aluminum IT451 White Kynar Pivot Up-Over Window Frame

• Aluminum threshold included for durability and weather resistance
• Custom size frame — made to order (SKU: TB71252)

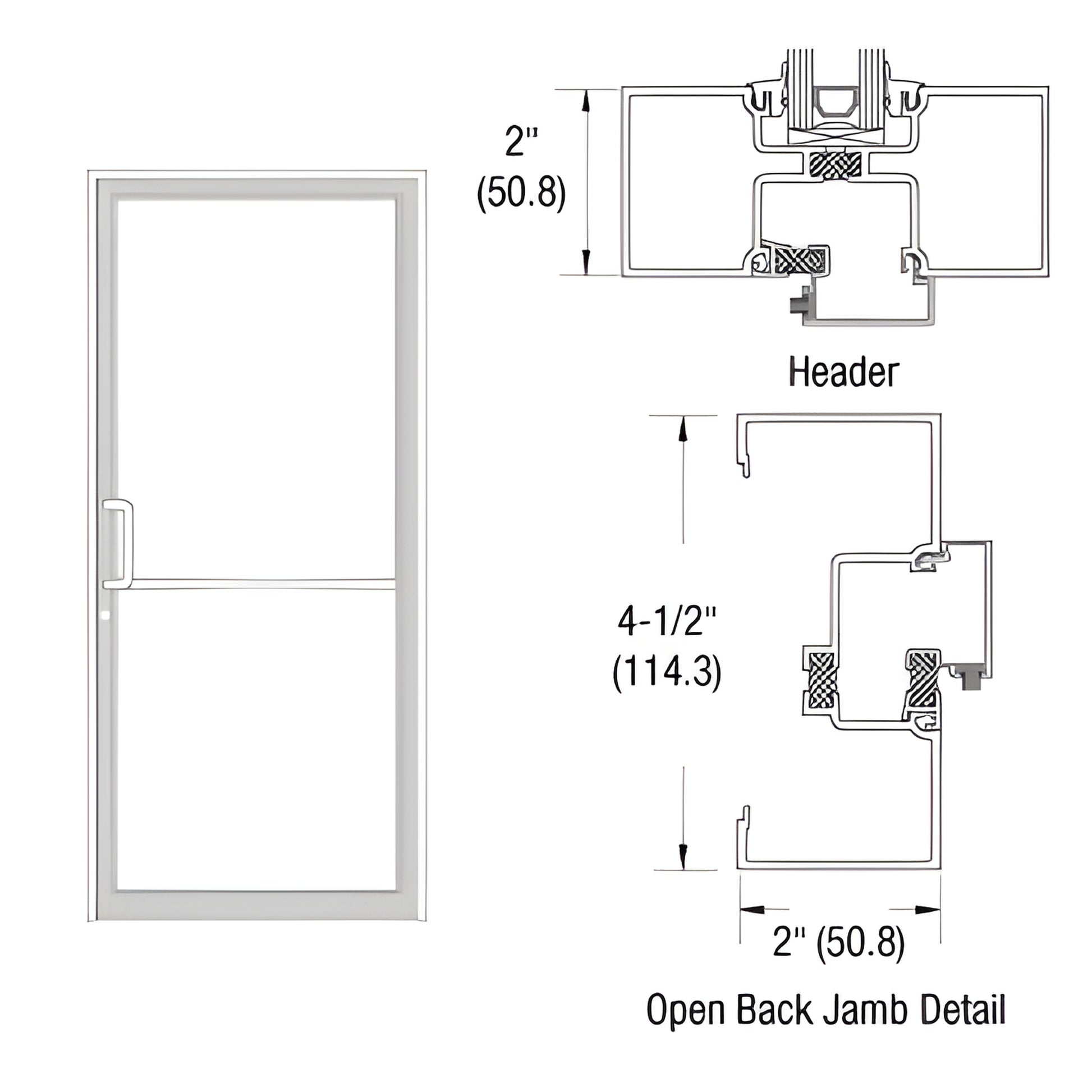

• 2" x 4-1/2" (50.8 x 114.3 mm) offset pivot up-and-over frame with open back jambs

Complete Frame is built to accommodate a base 36" x 84" offset pivot 2-1/4" door for a surface-mount closer. Constructed with 1T455 open back jambs and 1T422 header, the package includes DT058 door stops for a 2-1/4" door, weatherstrip, standard hardware, and hardware preparations.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection.

Why choose this offset pivot frame (TB71252)? Built-to-order sizing, aluminum threshold, open back jamb construction, and included hardware make it ideal for retrofit and new-construction applications requiring an offset pivot solution.

Order the TB71252 offset pivot frame in custom sizes — contact us for pricing and lead time.
