CRL-U.S. Aluminum KYNAR® 250 Narrow Stile Geared Hinge Entry Door
CRL-U.S. Aluminum KYNAR® 250 Narrow Stile Geared Hinge Entry Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- 9-1/2" (241 mm) Bottom Rail is Installed to Comply With A.D.A.
- Custom Fabricated to Accept Optional Hardware Applications

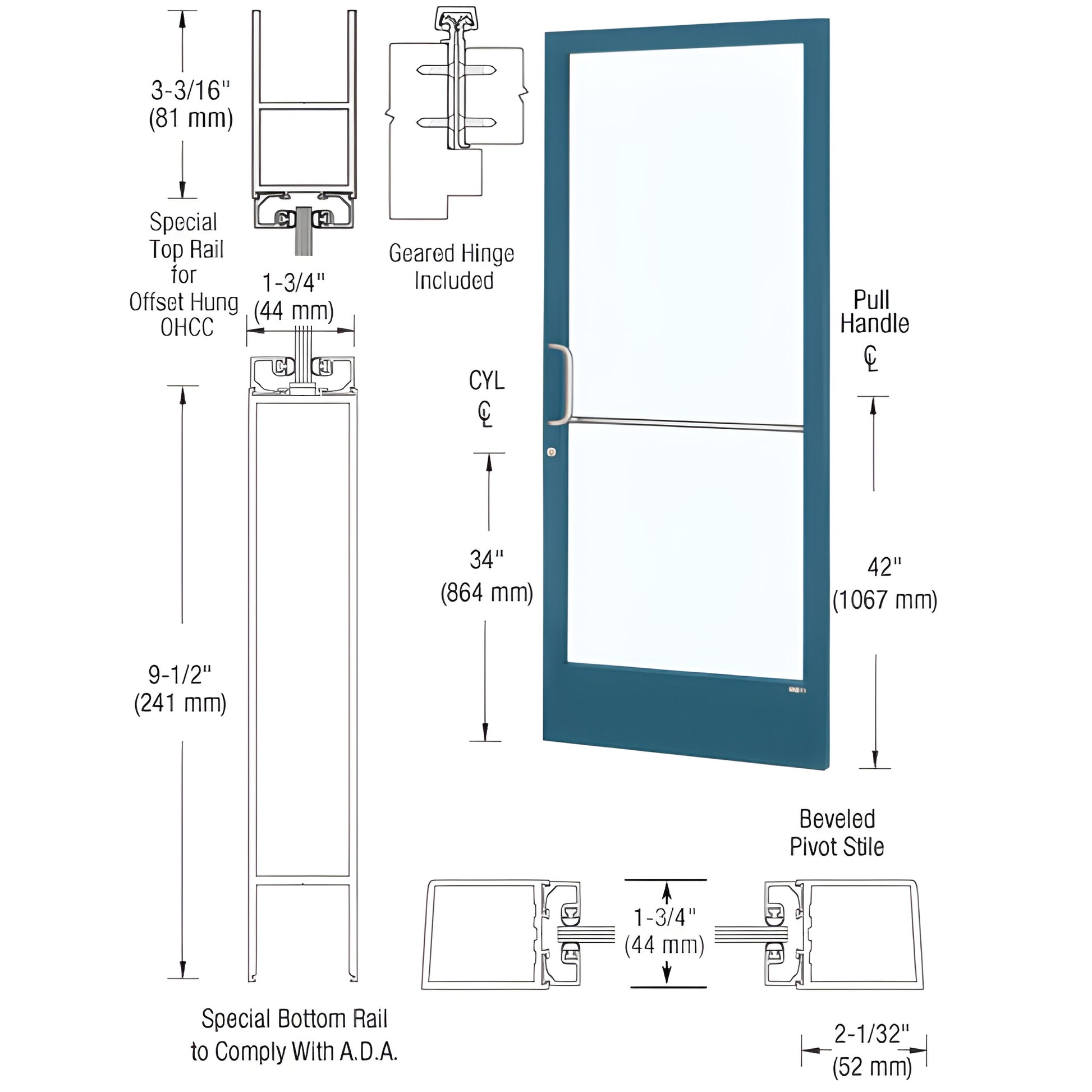

This Custom Narrow Stile Entrance Door (SKU: DE21971) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail to meet A.D.A. requirements. Designed for commercial storefronts and custom entry systems, the narrow stile construction provides a sleek, modern appearance while maintaining structural integrity.
Standard configuration includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied and installed by others). The door is custom-fabricated and ready to accept a wide range of optional hardware applications, making it ideal for tailored commercial and retail entrance solutions.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not pass A.D.A. inspection.
Choose this ADA-compatible, custom narrow stile entrance door for durable, customizable storefront performance — contact us to request a quote or confirm specifications.
Specifications
BIM Objects - rvt
