CRL-U.S. Aluminum KYNAR® 550 Wide-Stile Butt Hinge, Custom Size
CRL-U.S. Aluminum KYNAR® 550 Wide-Stile Butt Hinge, Custom Size
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

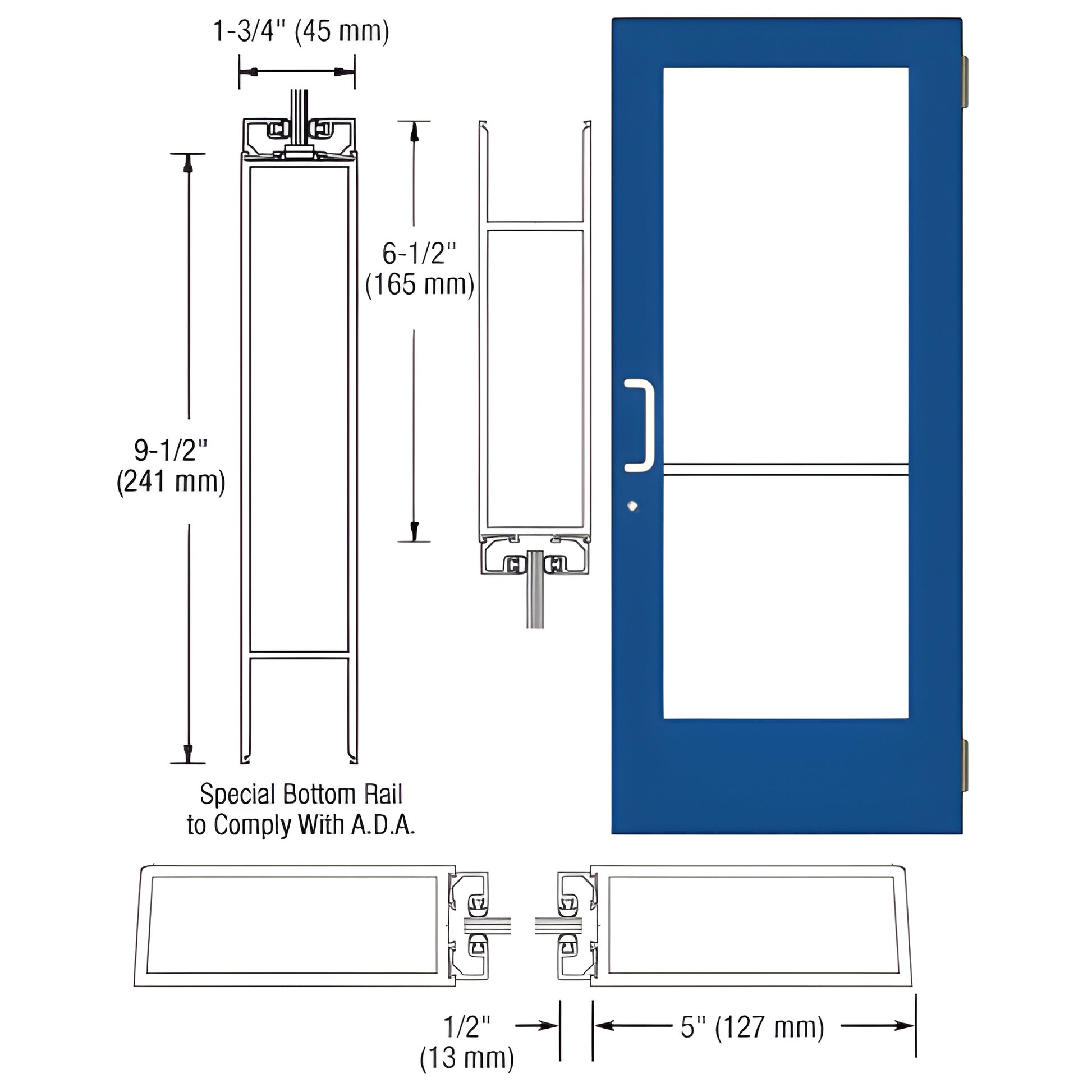

- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
Custom Wide Stile Entrance Door (SKU: DE51471) — built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Ready for butt-hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Custom fabrication supports a wide range of optional hardware applications and commercial door configurations.
Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
Order SKU DE51471 today to get a customizable, ADA-ready commercial entrance door — contact us for glazing and hardware options.
Specifications
BIM Objects - rvt
