CRL-U.S. Aluminum Kynar® 925 White Transom Patio Door Hinge, Left Swing-Out
CRL-U.S. Aluminum Kynar® 925 White Transom Patio Door Hinge, Left Swing-Out
Regular price
$4,649.63 CAD
Regular price
Sale price
$4,649.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PNL91552L0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
- Accepts 1" (25 mm) insulating glass
- Thermally broken door and frame for improved energy performance
- Five-point locking device for enhanced security
- Standard 3" bottom rail and low-profile threshold for outswing applications

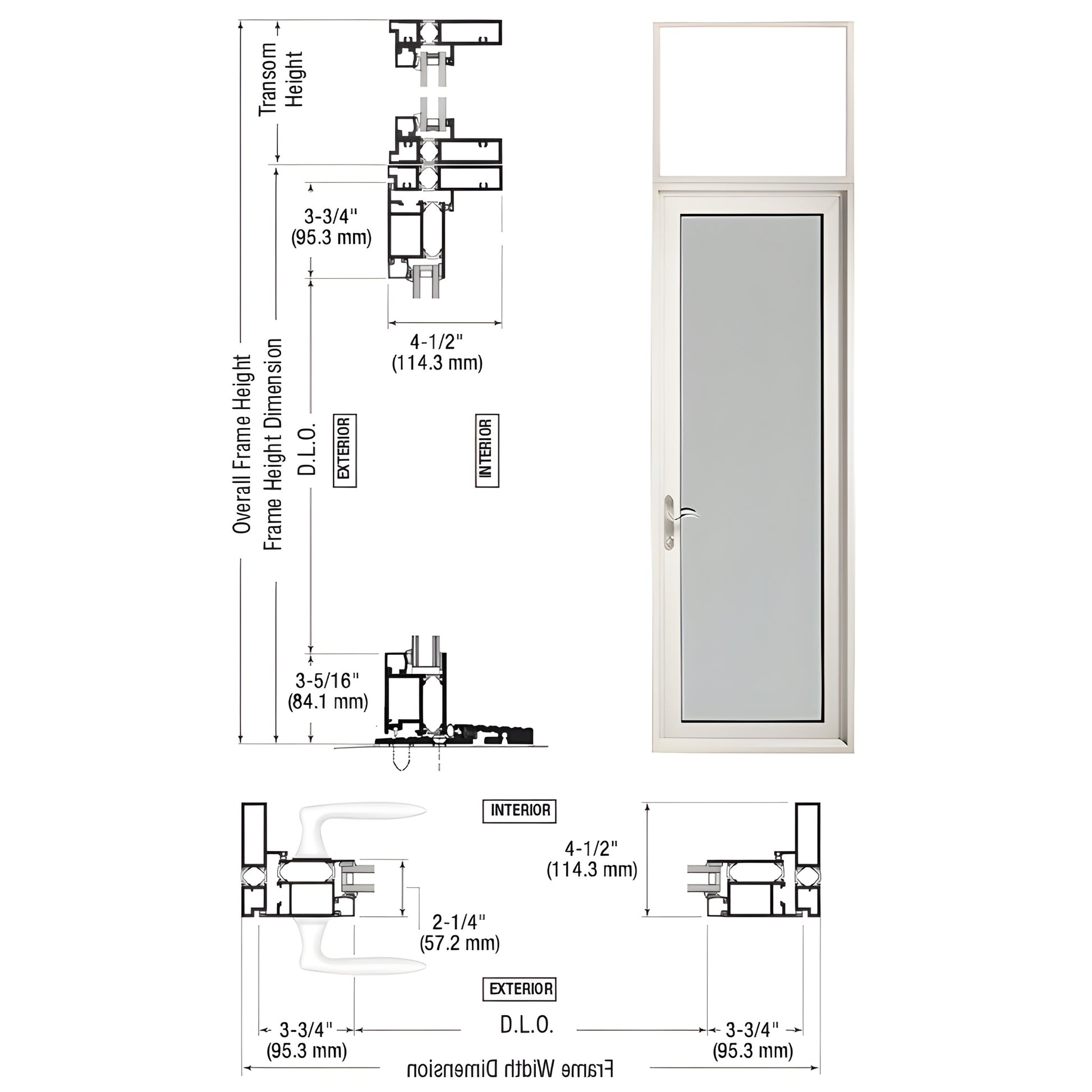

This CRL Series 925 Single Patio Entrance features a heavy-duty profile set: 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 3" (76 mm) bottom rail, and a low-profile threshold. Standard details include stiles prepped for butt-hinge hardware, glass stops sized for 1" (25 mm) tempered glass (by others), and factory five-point locking hardware—making it a thermally broken aluminum patio door option suited for commercial and residential insulating-glass patio entrance applications.
SKU: PNL91552L0
Order the CRL Series 925 Single Patio Entrance with thermally broken frame and five-point locking hardware—contact CRL to get a quote or confirm glass and hardware compatibility.
